Description

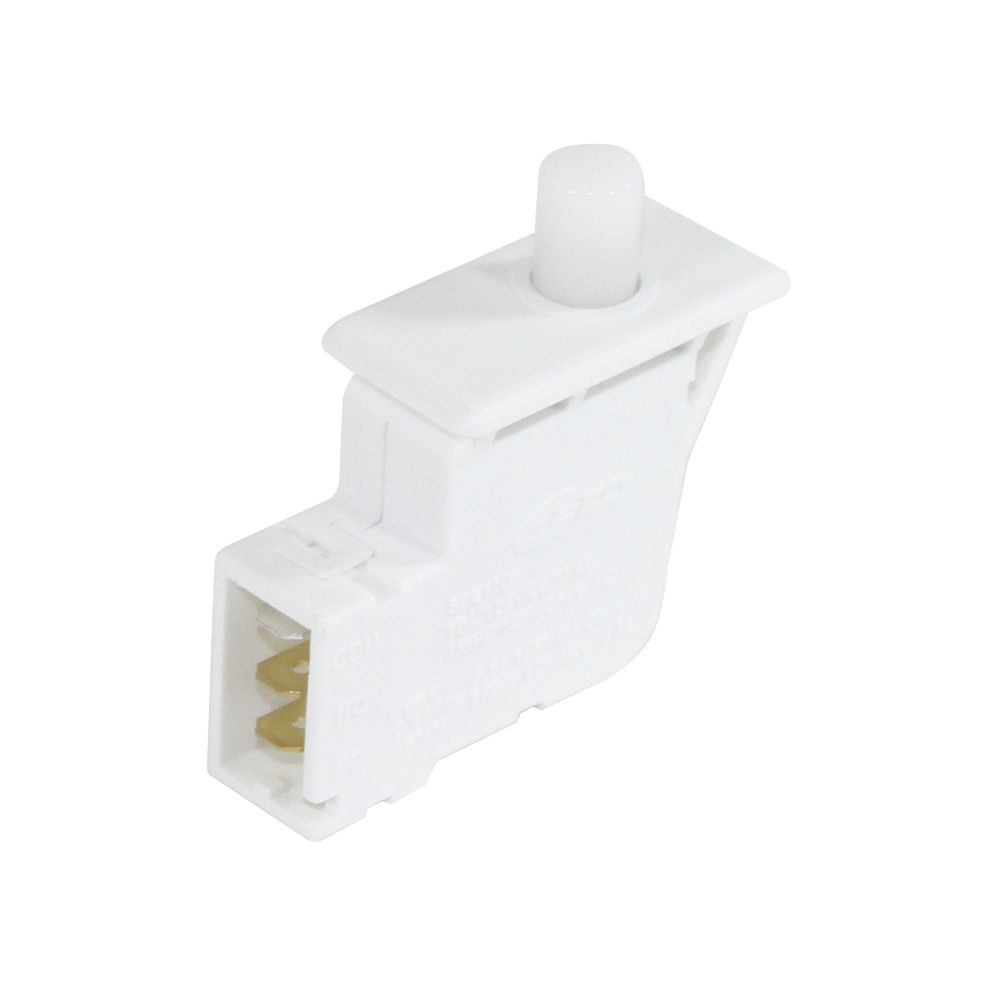

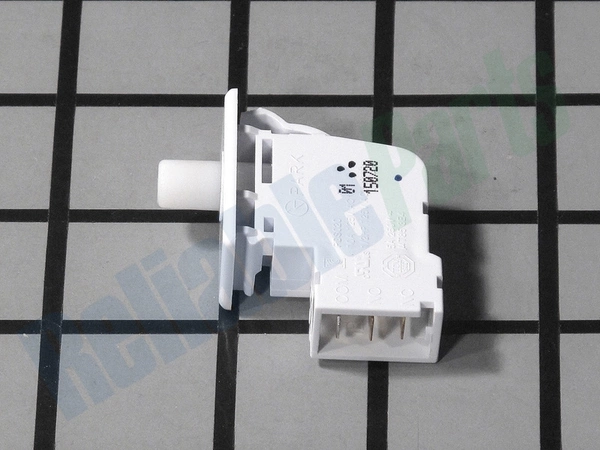

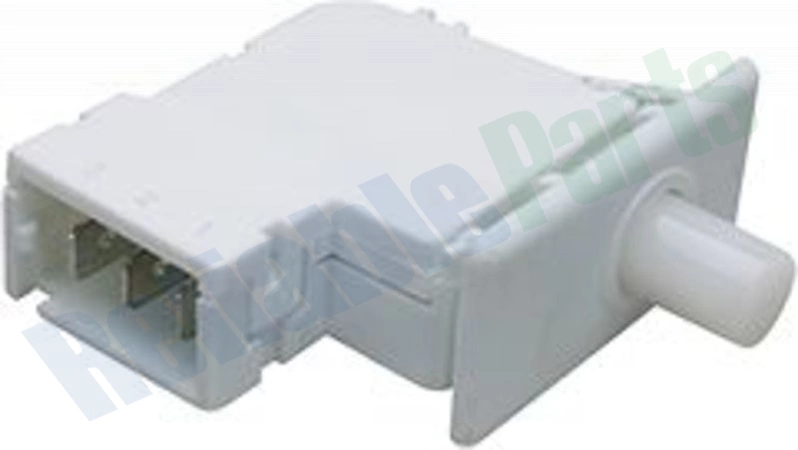

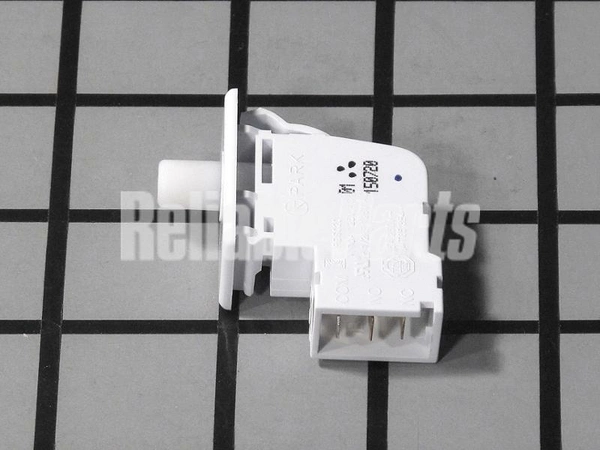

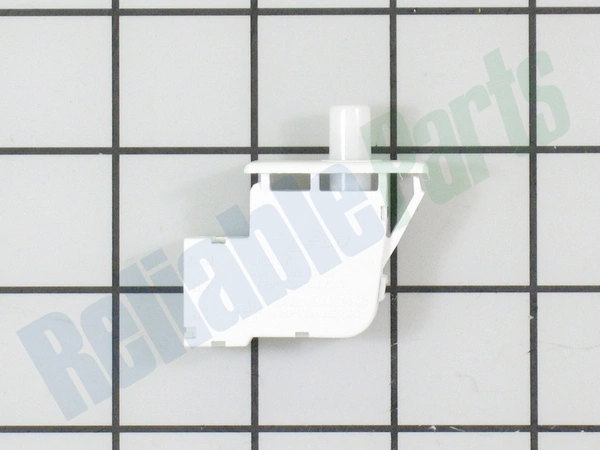

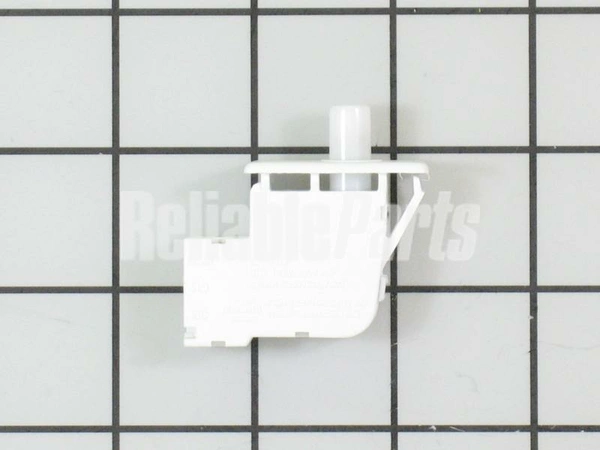

Ensure the reliability of your LG dryer with this high-quality door switch assembly. Designed specifically for LG appliances, this component plays a crucial role in maintaining the functionality of your drying machine. If you’re experiencing issues such as the dryer not starting or operating inconsistently, replacing the door switch might be the solution you need.

Crafted by LG Electronics, this switch is built to last, ensuring optimal performance and safety for your laundry routine. Its easy installation allows you to quickly restore your dryer to its full potential without needing professional assistance. Compatible exclusively with LG dryers, this part is an essential addition for anyone looking to Maintain their appliance’s efficiency. Keep your dryer running smoothly by choosing this reliable door switch assembly.

Step 1: Unplug the LG dryer from the wall socket and disconnect the power cord.

Step 2: Open the door of the LG dryer and remove the screws located on each side of the door. Lift the top of the dryer back slightly and remove the upper panel of the dryer cabinet.

Step 3: Disconnect the door switch (6601EL3001A) assembly from the main control board of the dryer by removing the two wires connecting to it.

Step 4: Detach the screws that hold the switch to the door, then carefully remove the switch from the door.

Step 5: Install the replacement door switch, reconnecting the two wires to the main control board. Securely fasten the switch to the door with the screws.

Step 6: Close the top panel of the dryer cabinet and secure it in place with the screws.

Step 7: Plug the power cord into the wall socket and test the new door switch.

Congratulations! You have successfully replaced the 6601EL3001A LG Dryer Door Switch Assembly.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
