W11375548 Whirlpool Heating Element

$52.59

Heater Element

1 in stock

SKU: WPL W11375548
Category:
Brands:

Description

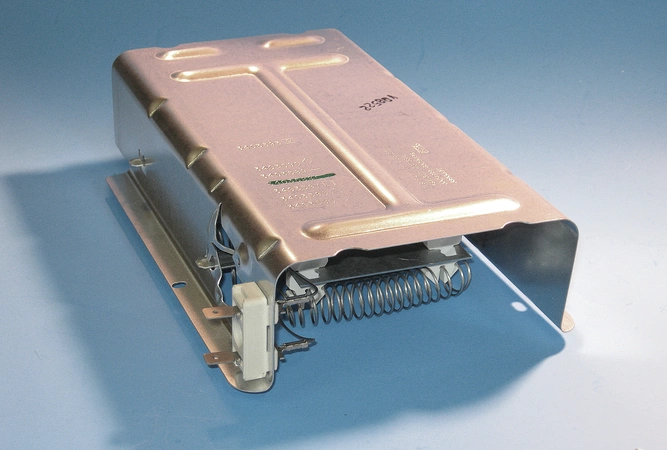

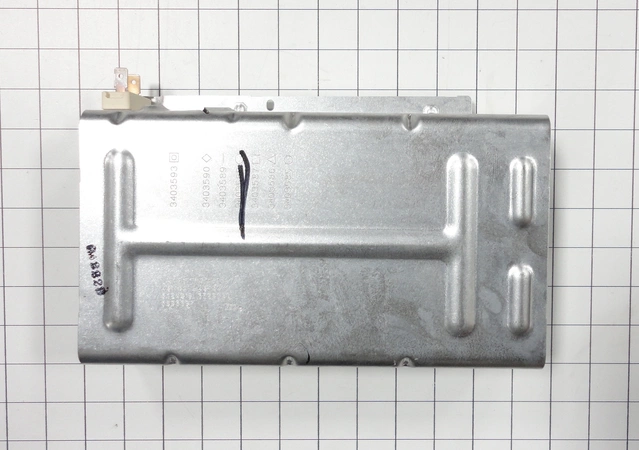

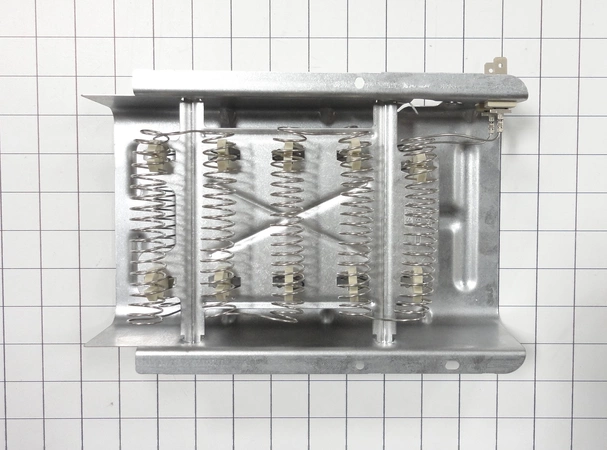

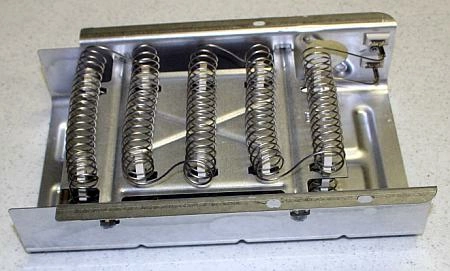

Heating element works with some Whirlpool, Jenn-Air, Kenmore, KitchenAid, Maytag, Amana, Magic Chef, Admiral, Norge, and Roper models of clothes dryers.

How to Replace the Whirlpool W11375548 Element

Replacing the Whirlpool W11375548 element is an easy DIY project that anyone can do at home. With the right tools and knowledge, you can have your old element replaced with a new one in no time. Here are the steps for replacing your Whirlpool W11375548 element:

1. Turn off the power supply to your appliance. Unplug the appliance and make sure it is not receiving any electricity.

2. Remove the screws from the bottom of the appliance that are securing the cover panel. You may also need to use a flathead screwdriver to remove these screws.

3. Pull the cover panel off and locate the element on the interior of the appliance.

4. Use a wrench or pliers to unscrew and remove the element from its location.

5. Place the new Whirlpool W11375548 element in the same location as the old element. Make sure it is tightened securely.

6. Reattach the cover panel and screws.

7. Plug the appliance back in and turn the power supply back on.

Your Whirlpool W11375548 element has now been successfully replaced! With a few simple steps, you can easily do this DIY replacement yourself. Just make sure to use caution and follow all safety precautions when working with electricity.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.

Additional information

Weight 1.851900 kg
Dimensions 11.02 × 7.32 × 3.19 cm
Part Type

Heating Element

Dimension

  • WPL 3403588 (wpl-3403588)
  • WPL WP3398065 (wpl-wp3398065)
  • WPL WP3403588 (wpl-wp3403588)
  • WPL 3398065 (wpl-3398065)
