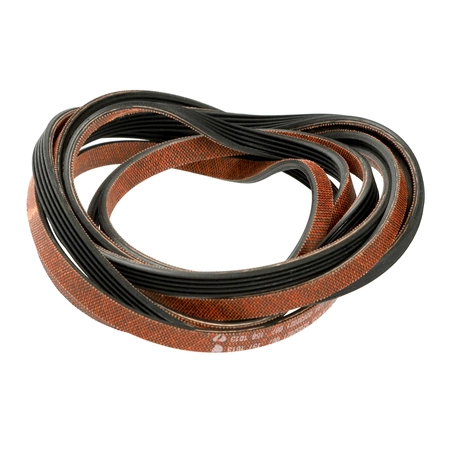

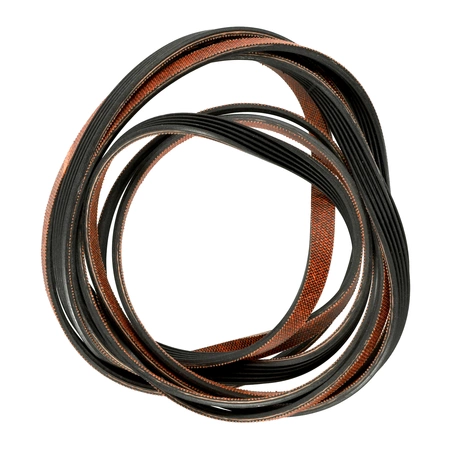

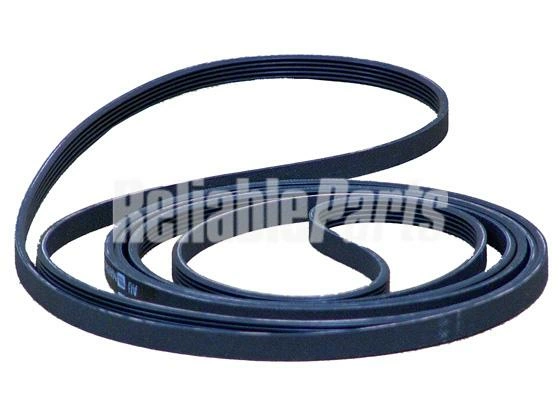

WPY312959 Whirlpool Dryer Drum Belt
$10.11
The Dryer Drum Belt circles the dryer’s entire drum and attaches it to the motor to create constant spinning during the drying cycle. If your dryer’s motor is running but the drum isn’t turning, replacing this part may alleviate the issue. This part features 5 ribs with 4 grooves. When replacing the part, make sure […]
1 in stock
Description
The Dryer Drum Belt circles the dryer’s entire drum and attaches it to the motor to create constant spinning during the drying cycle. If your dryer’s motor is running but the drum isn’t turning, replacing this part may alleviate the issue. This part features 5 ribs with 4 grooves. When replacing the part, make sure the belt is aligned on the high part of the drum to prevent damage to the idler pulley guide arm. Replacing this part will require basic hand tools, some disassembly of the appliance and novice repair experience. You must unplug the appliance or shut off the house circuit breaker before installing this part. Recommended Item: While the dryer is disassembled, also consider replacing the idler pulley (item W10116792).Part Specification• This product is a Factory Certified Part. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications• This product is a replacement part• Package contains (1) Dryer Drum Belt• Tools Needed: Multi screwdriver
DIY Instructions for Replacing the WPY312959 Whirlpool Drum Belt
1. Unplug your Whirlpool dryer from the wall and turn off the gas supply if applicable.
2. Slide out the old belt. Lift up the tensioner and slide the belt off the motor pulley. Move the belt off the pulleys and idler.
3. Unfasten the screws securing the front panel and pull out the drum.
4. Fit the new belt around the drum and thread it in a counterclockwise direction around the drive motor and idler pulley. Ensure that the belt is tight by slightly pushing the drum backwards.
5. Check the tension by pressing down on the belt with two fingers at the center of the drum. A correctly adjusted belt should give about one inch of movement when pushed.
6. Reattach the front panel, secure the screws and make sure everything is back in place.
7. Plug your Whirlpool dryer back into the wall, turn on the gas supply if applicable, and turn on the dryer. Test to make sure the dryer is operating normally.
Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
Additional information
| Weight | 0.257900 kg |
|---|---|
| Dimensions | 6.02 × 5.04 × 1.18 cm |
| Part Type | Belt |
| Dimension |
- WPL 3-12959 (wpl-3-12959)
- WPL 314774 (wpl-314774)
- WPL Y312959 (wpl-y312959)
- WPL 312959 (wpl-312959)
