Description

This is a high-quality aftermarket product that is an alternate for some original equipment manufacturer parts. Please verify your part number is correct for your model before ordering. Parts may look the same but the size and shape can have small variations.

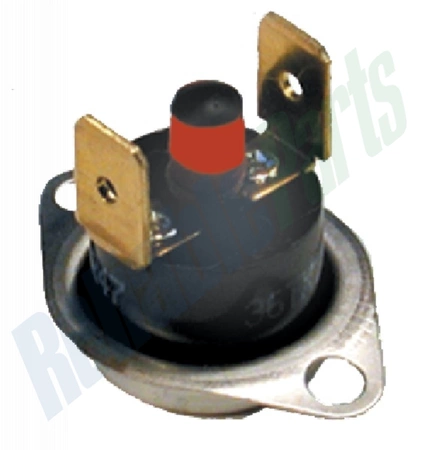

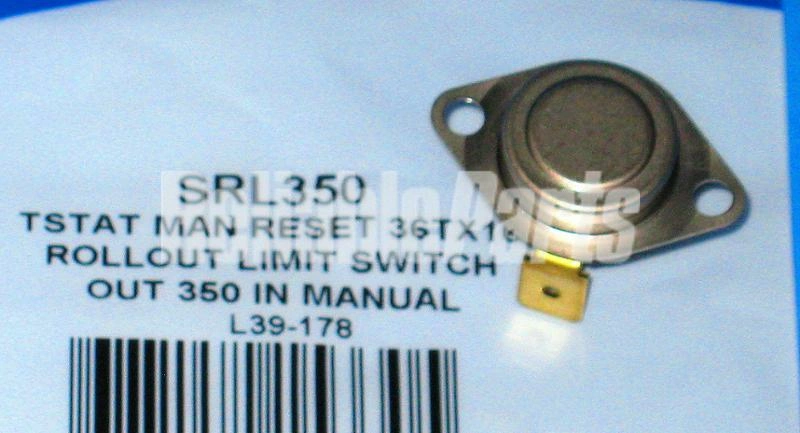

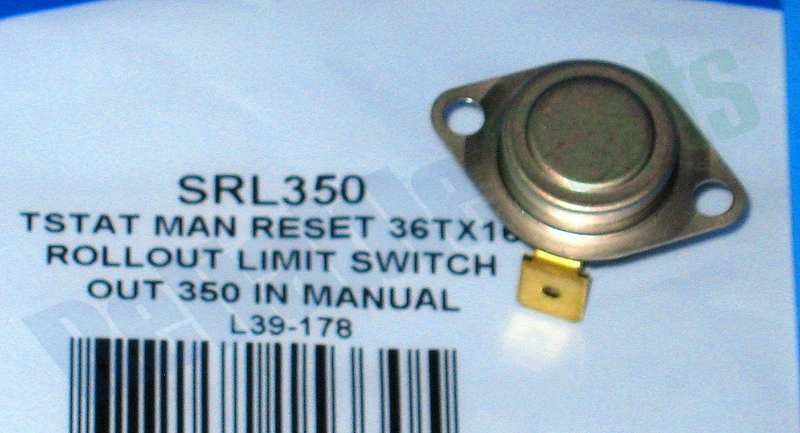

How to Replace an SRL350 Supco Rollout Limit Switch

Replacing the SRL350 Supco Rollout Limit Switch is a relatively easy task that only requires a few basic tools and can be completed in less than 30 minutes.

Tools Required:
Phillips Screwdriver
Needle-nosed Pliers
Utility Knife

Instructions:
1. Start by unplugging your furnace from the wall or turning off the power supply to the system before replacing the SRL350 Supco Rollout Limit Switch.
2. Locate the switch. It will be mounted on the side of the furnace, towards the bottom.
3. Remove any screws or nuts securing the switch in place with the Phillips screwdriver.
4. Disconnect the wiring from the switch with the needle-nosed pliers.
5. Use the utility knife to cut away any remaining adhesive residue from the old switch.
6. Install the new SRL350 Supco Rollout Limit Switch by connecting the wiring and securing it with the screws or nuts.
7. Test the switch by activating it manually.
8. Replace the cover plate and turn the power to the system back on.

Congratulations! You have successfully replaced the SRL350 Supco Rollout Limit Switch.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
