Description

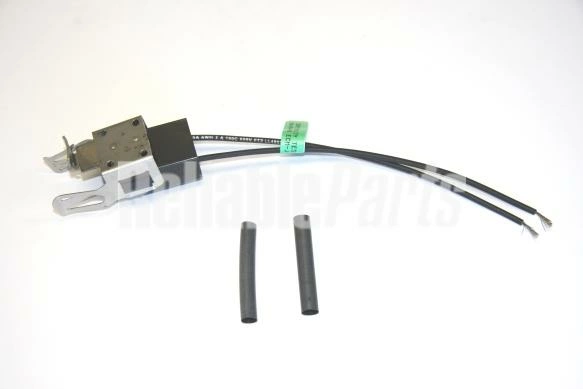

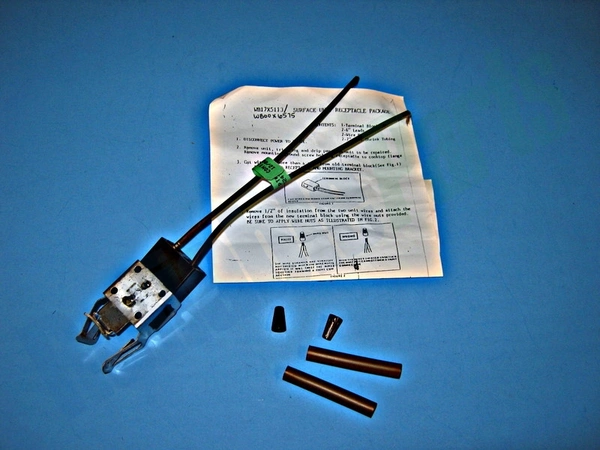

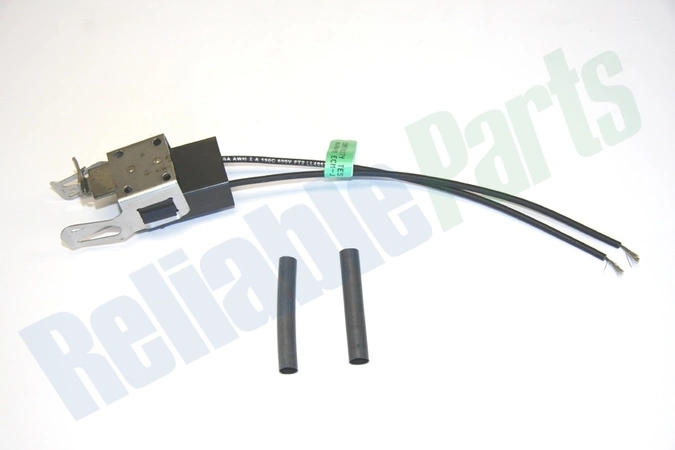

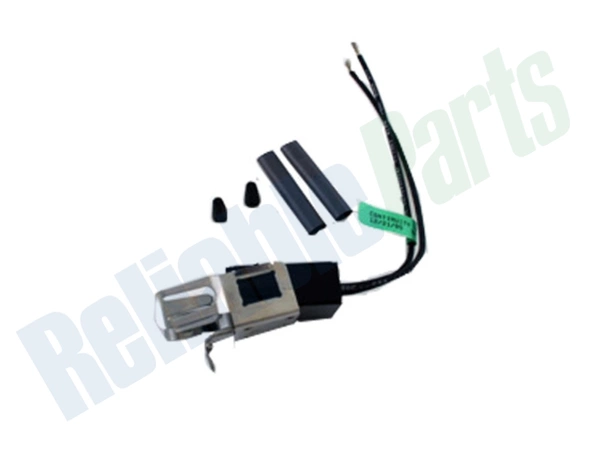

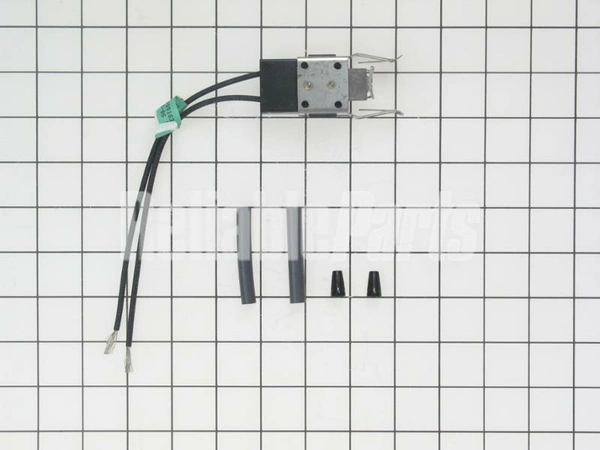

General Electric – Hotpoint Surface Unit Receptacle Kit WB17X5113We are a Factory Authorized Parts Distributor for General Electric. Trust us for all of your General Electric appliance parts and accessories needs.

Replacing the GE Stove Range Oven Cook Top Burner Receptacle Kit

DIY Instructions

1. Before you start, turn off the breaker that supplies power to the stove range oven cook top burner receptacle.

2. Disconnect the power wire from the old stove range oven cook top burner receptacle, and then remove the receptacle.

3. Take the new GE stove range oven cook top burner receptacle and connect the power wires to it.

4. Mount the new receptacle into the oven cook top burner receptacle opening and secure it in place with the provided screws.

5. Turn on the power supply to the oven cook top burner receptacle and test your work.

6. If everything is working properly, you have successfully replaced the GE Stove Range Oven Cook Top Burner Receptacle Kit.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
