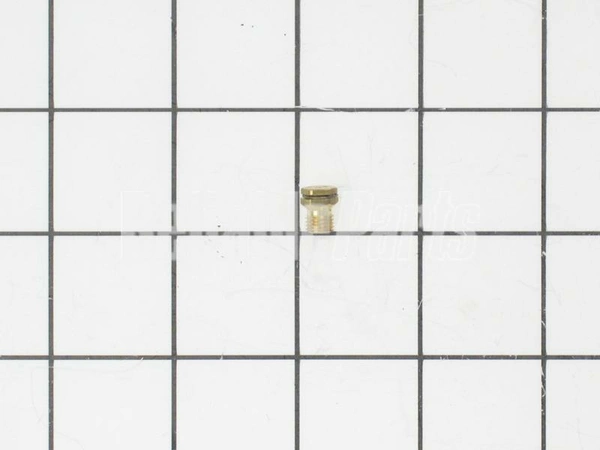

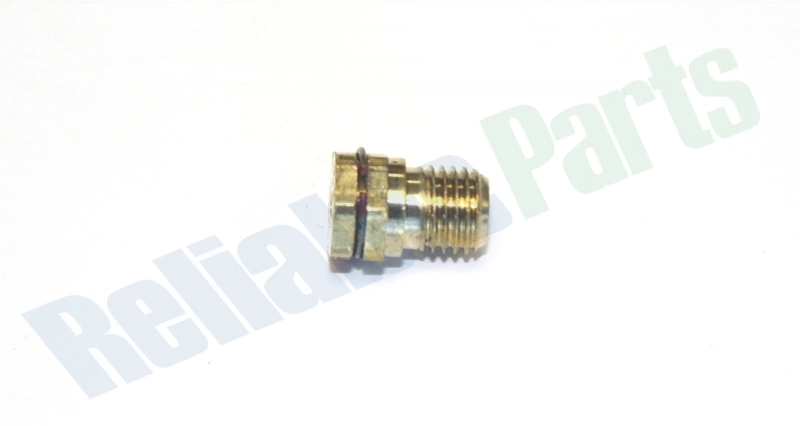

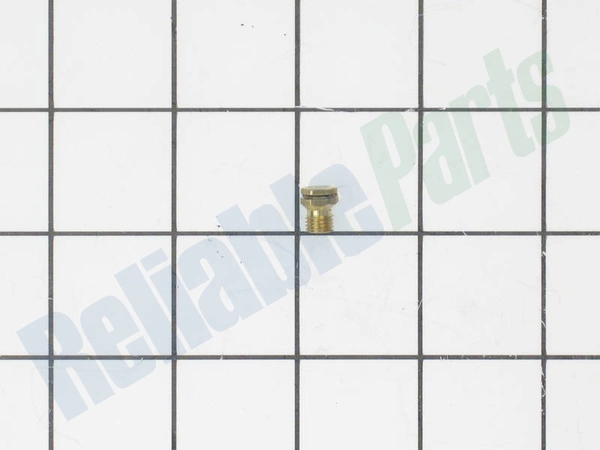

WB28K10032 GE Oven LP Orifice

DIY Guide to Replacing the GE WB28K10032 LP Orifice

Replacing the GE WB28K10032 LP orifice is a simple do-it-yourself (DIY) project that can help keep your appliance in top condition for years to come. This guide outlines the steps needed to replace an LP orifice. Before attempting this repair, be sure to turn off any gas supply to the appliance and disconnect the appliance from its power source.

Tools and Materials Required:

• Socket wrench
• Orifice removal tool
• Replacement orifice
• Screwdriver

Step 1: Remove the Burner Base
Remove the screws that secure the burner base with a screwdriver. Carefully lift up the burner base and remove it from the top of the range.

Step 2: Unscrew Old Orifice
Using a socket wrench, unscrew the old orifice from the LP port attached to the burner base.

Step 3: Use the Orifice Removal Tool
Insert the orifice removal tool into the LP port and carefully twist it to remove any remnants of the old orifice.

Step 4: Insert the New Orifice
Insert the new orifice into the LP port and secure it with the socket wrench. Be sure to not overtighten, as this may cause damage to the orifice.

Step 5: Reattach the Burner Base
Carefully place the burner base back onto the top of the range. Secure it in place with the screws that were removed in Step 1.

You have now replaced the GE WB28K10032 LP orifice. Be sure to test the appliance to ensure it is functioning correctly before use.

Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
