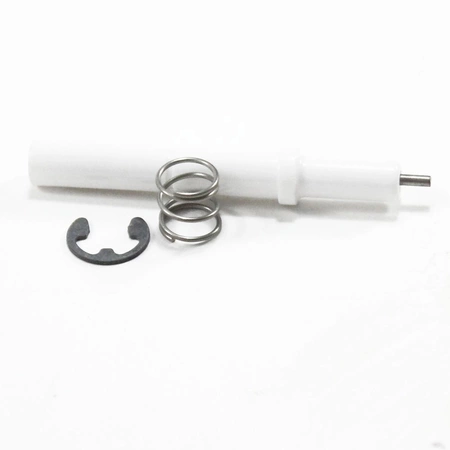

DE81-06719A Samsung Service Igniter Kit
$8.50
Igniter service kit works with some Dacor models of range/cooktops.
- Description
- Installation Guide
- Additional information
- Replaceable Parts
- Used in Models
Description
Igniter service kit works with some Dacor models of range/cooktops.
Replacing Your Samsung DE81-06719A SVC-SERVICE KIT IGNITER
1. Disconnect the power supply to the oven before you start.
2. Open the oven door and locate the igniter. It is a small metal coil located near the burner, at the bottom of the oven.
3. Remove the screws holding the igniter in place.
4. Pull out the igniter from the oven and disconnect it from the wires.
5. Attach the new Samsung DE81-06719A SVC-SERVICE KIT IGNITER to the wires and position it within the oven.
6. Secure the new igniter in place with the screws removed earlier.
7. Turn the power supply back on.
8. Test the new igniter to make sure it functions properly by setting the oven to a preheat temperature and checking to ensure that the igniter glows.
Congratulations - you've successfully replaced the Samsung DE81-06719A SVC-SERVICE KIT IGNITER!
Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
Additional information
| Weight | 0.059300 kg |
|---|---|
| Dimensions | 3.43 × 2.91 × 0.83 cm |
| Dimension |
- SMG 76245 (smg-76245)
- SMG 92237 (smg-92237)
- SMG DE81-05421A (smg-de81-05421a)
- SMG 66960 (smg-66960)
This product is not used in any models.
