12001596 Whirlpool Range Oven Cooktop Spark Module

Description

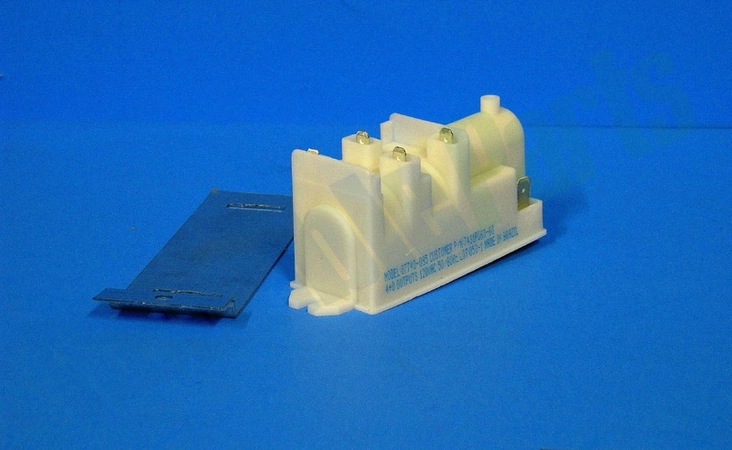

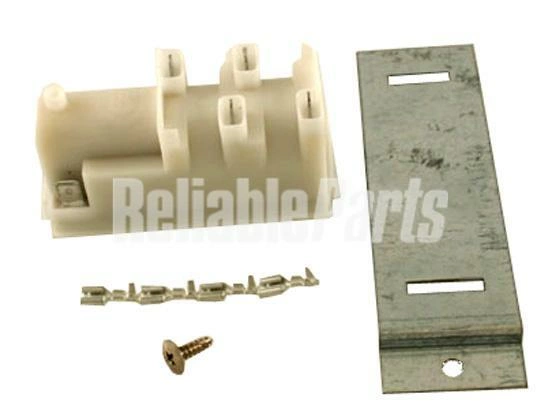

This Range Surface Burner Spark Module produces sparks that ignite the top gas burners on your range. If one or more of your top burners won’t spark, replacing the module may alleviate this issue. This kit includes the (1) module, (1) mounting bracket, (2) connectors, (1) Phillips screw. The terminals supplied should not be used if they are different in size than the current terminals. To access the part, you’ll remove the back panel of your range. Replacing this part will require basic hand tools, some disassembly of the appliance and novice repair experience. You must unplug the appliance or shut off the house circuit breaker before installing this part. Also make sure you shut off the gas to the range.Part Specification• This product is a Factory Certified Part. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications• This product is a replacement part• Package contains (1) Range Surface Burner Spark Module Kit• Tools Needed: Multi screwdriver, needle nose pliers, 1/4″ nut driver
