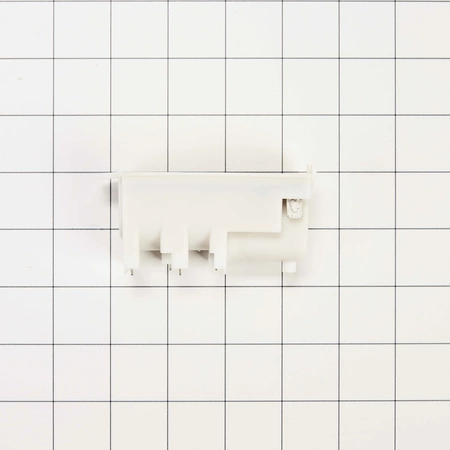

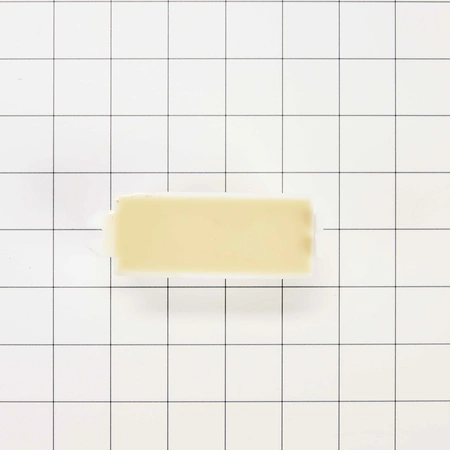

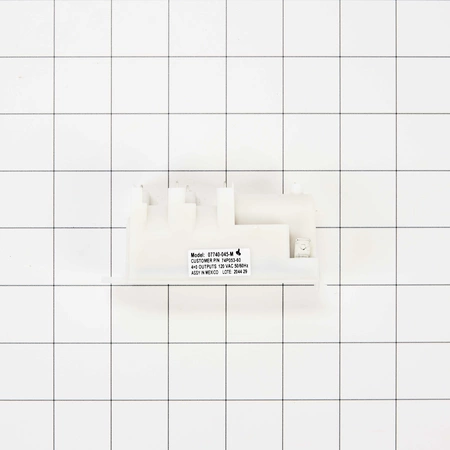

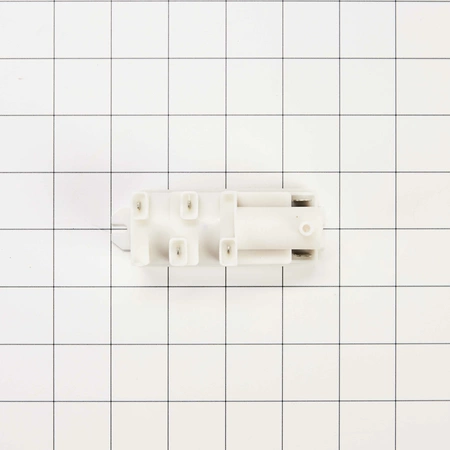

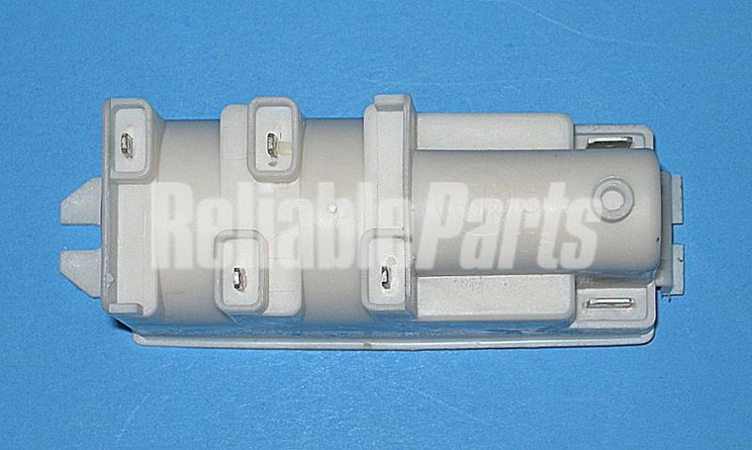

WP8053421 Whirlpool Oven Spark Module

Description

This Gas Range Spark Module creates the spark for lighting the gas for the range surface burners. If one or more of your top burners won’t spark, replacing tise part may alleviate the issue.To access the part, you’ll need to remove the large panel on the rear of the range’s console. Note that transferring the wires from the old part to the new part one at a time will help prevent incorrect installation. Replacing this part will require basic hand tools, some disassembly of the range and novice repair experience. You must unplug the range or shut off the house circuit breaker for the appliance before installing this part. Also make sure to turn the gas valve off before the repair.Part Specification• This product is a Factory Certified Part. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications• This product is a replacement part• Package contains (1) Gas Range Spark Module• Tools Needed: Multi screwdriver
