WPW10290350 Whirlpool Stove Drip Bowl
$4.59
Drip Bowl (8“)
1 in stock
Description

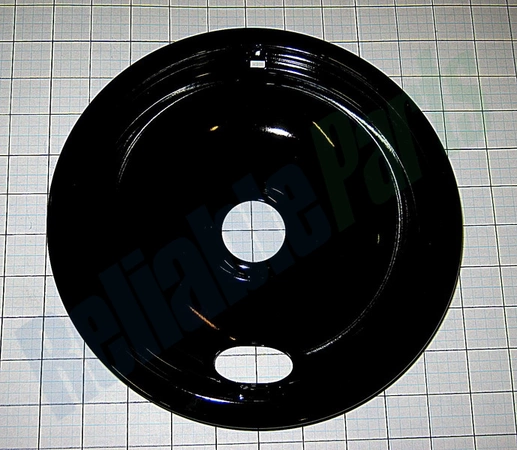

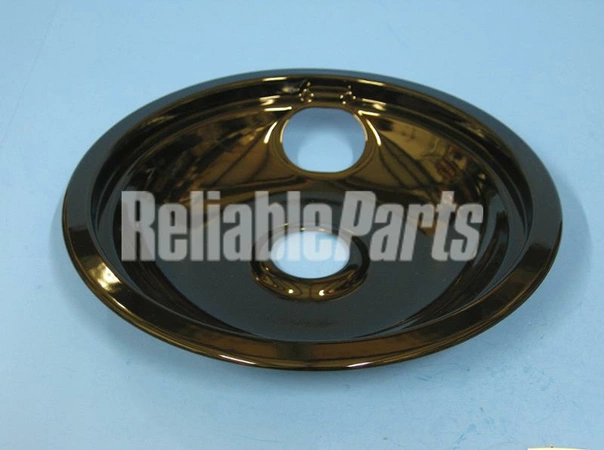

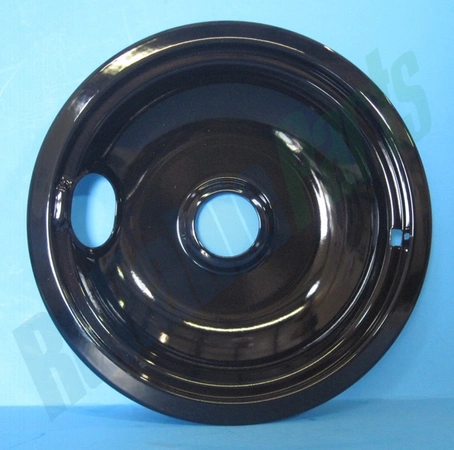

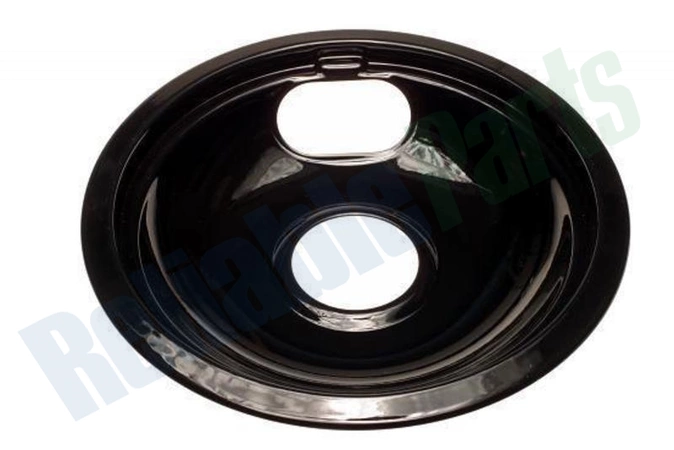

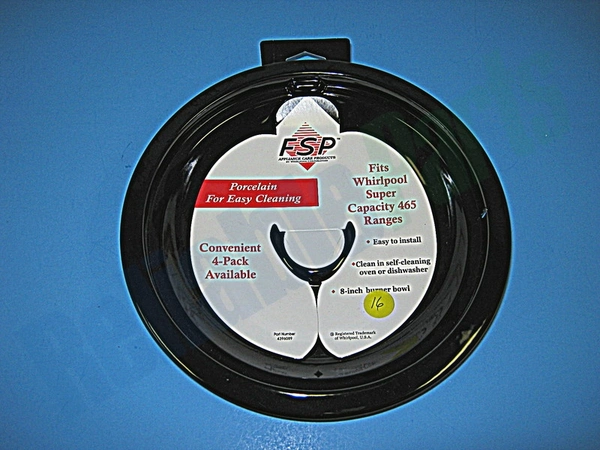

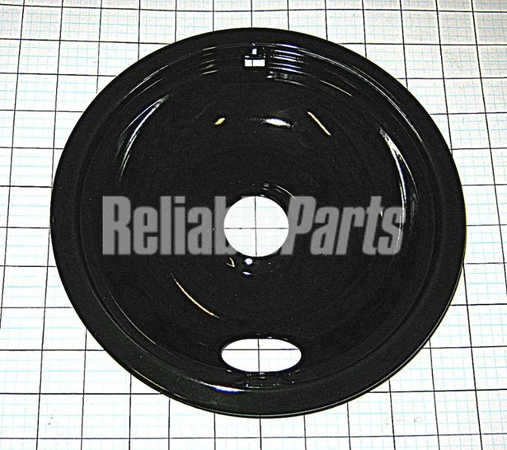

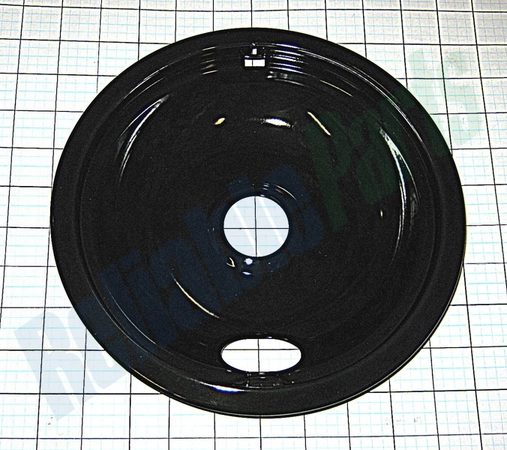

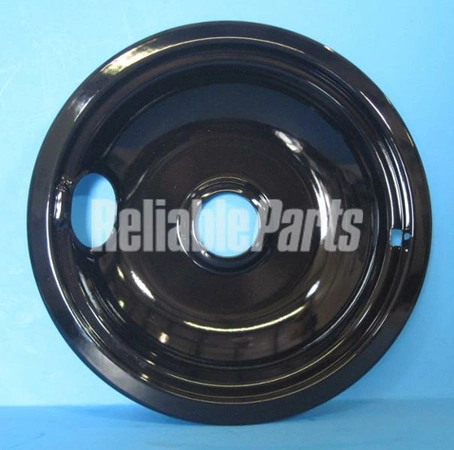

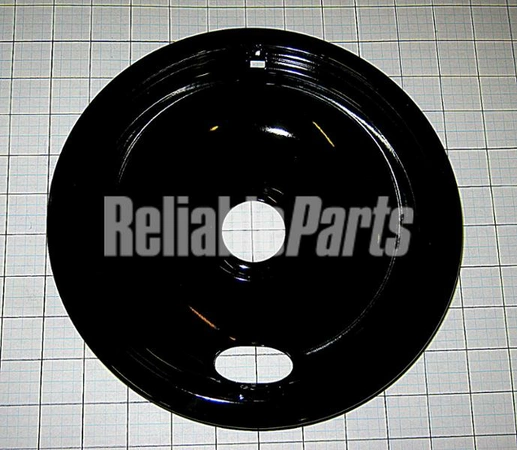

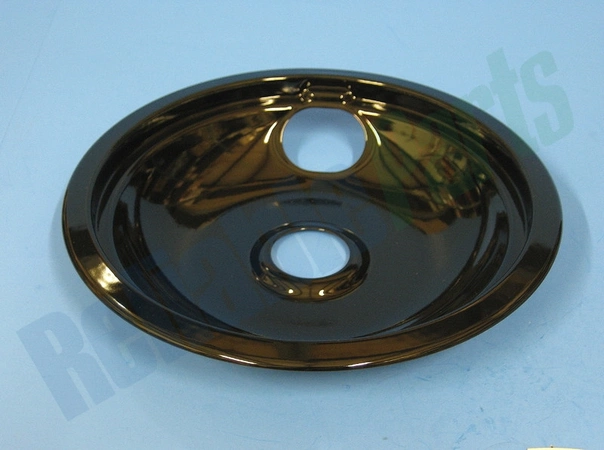

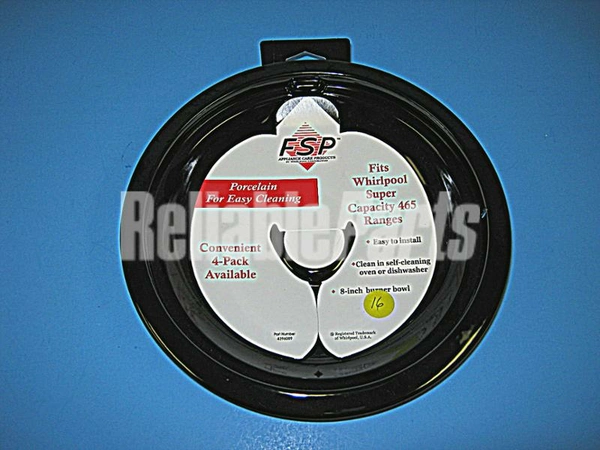

This Electric Range Round Burner Drip Bowl helps contain splatters and spills while you use your cooktop. If your current burner pans are damaged or can no longer be cleaned, you can replace them with this accessory. This black porcelain drip pan measures 8″ Diameter at its widest point. Burners sold separately. Installing this part will require no tools, disassembly or repair experience. Recommended Item: The coordinating 6″ drip bowl is available under item number WPW10290353.Part Specification• This product is a Factory Certified Accessory. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications• Package contains (1) Electric Range Round Burner Drip Bowl• No tools required for installation
Replacing the Whirlpool WPW10290350 BOWL-DRIP
1. Unplug the power supply to your refrigerator and then disconnect the water supply hose from the rear of the appliance.
2. Open the refrigerator and locate the old bowl-drip.
3. Remove the screws that secure the bowl-drip in place and then carefully remove the part.
4. Clean the area where the bowl-drip was located and make sure all debris is removed.
5. Take the new bowl-drip and insert it into the opening.
6. Secure the new bowl-drip to the appliance with the screws you removed previously.
7. Connect the water supply hose to the rear of the refrigerator and plug the power supply back in.
8. Verify that the bowl-drip is securely attached to the refrigerator and is functioning properly.
Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
Additional information
| Weight | 1.295000 kg |
|---|---|
| Dimensions | 14.85 × 11.50 × 0.01 cm |
| Part Type | Drip Bowl & Drip Pan |
| Dimension |
- WPL 04100393 (wpl-04100393)
- WPL 04100528 (wpl-04100528)
- WPL 059012B (wpl-059012b)
- WPL 308649B (wpl-308649b)
- WPL 309112B (wpl-309112b)
- WPL 309426B (wpl-309426b)
- WPL 3169205 (wpl-3169205)
- WPL 3169205BULK (wpl-3169205bulk)
- WPL 3196203 (wpl-3196203)
- WPL 4100393 (wpl-4100393)
- WPL 4396089 (wpl-4396089)
- WPL 7725P023-60 (wpl-7725p023-60)
- WPL 93169205 (wpl-93169205)
- WPL Y04100393 (wpl-y04100393)
- WPL 305839B (wpl-305839b)
