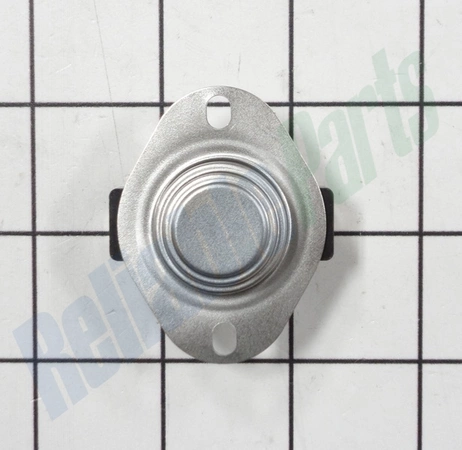

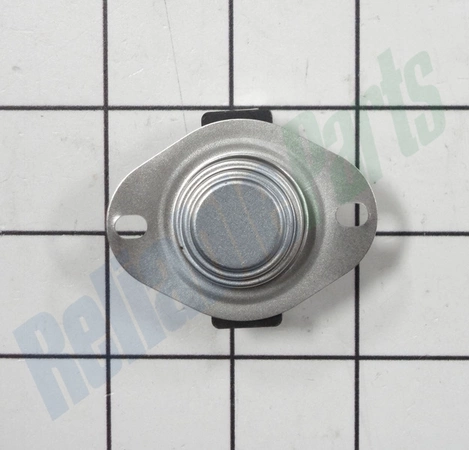

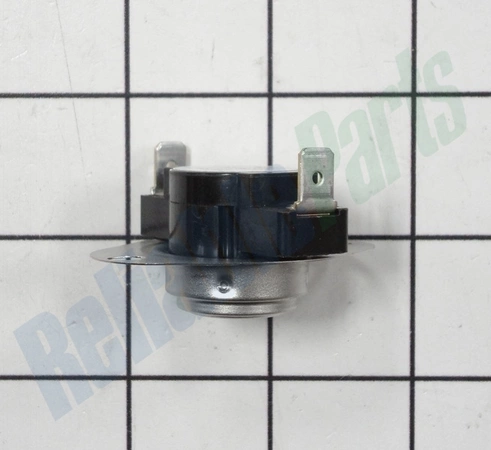

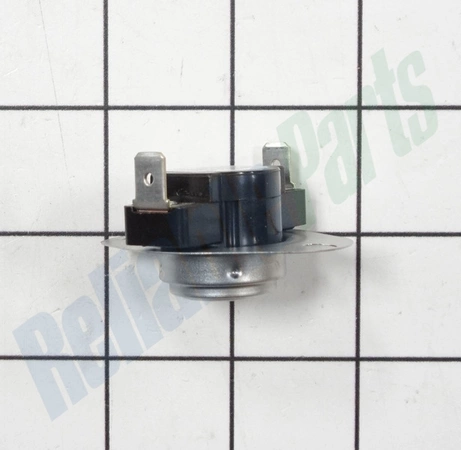

WP694674 Whirlpool Cycling Thermostat
$27.10

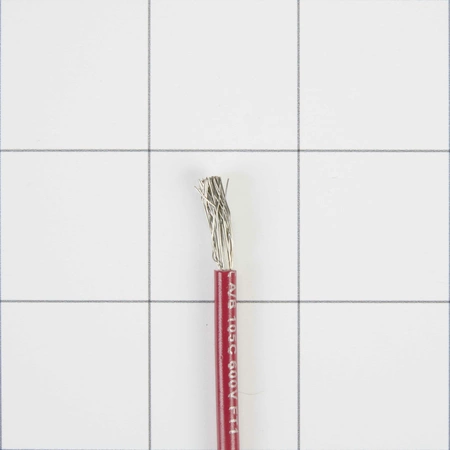

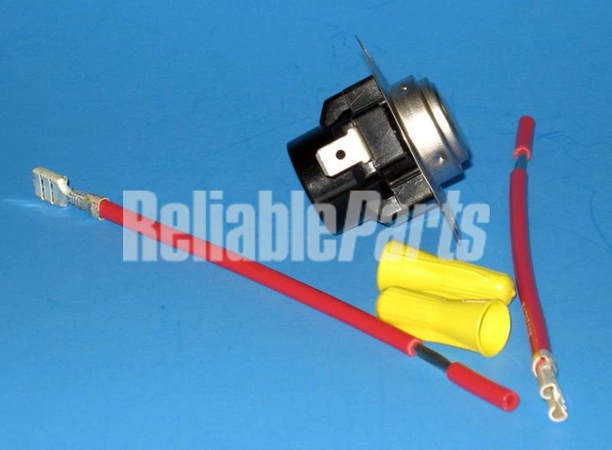

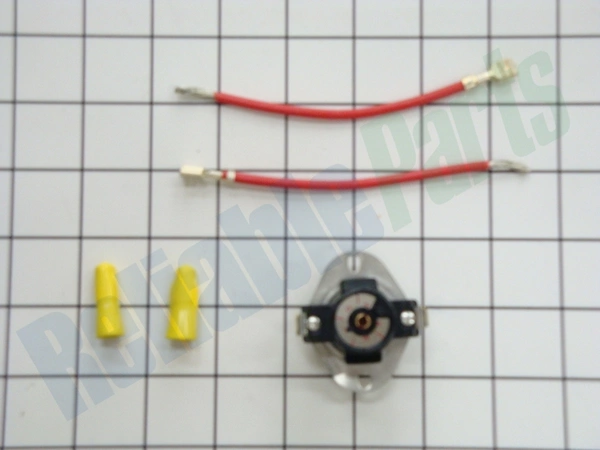

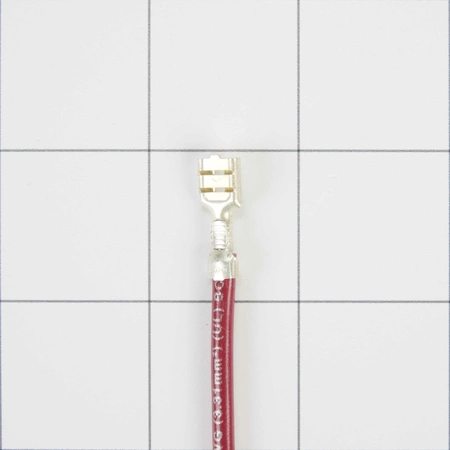

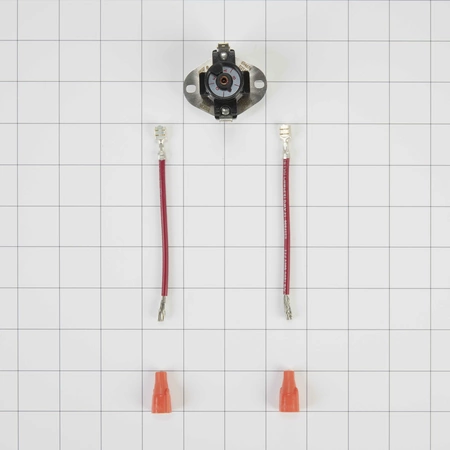

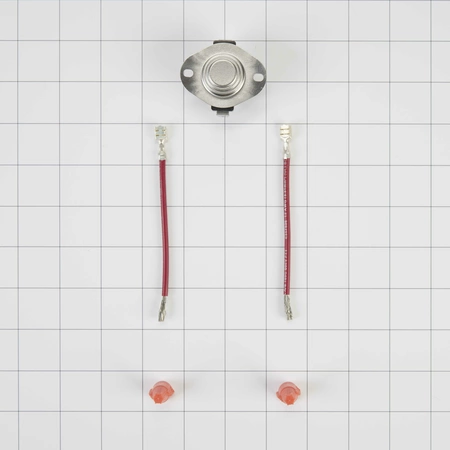

This Adjustable Dryer Cycling Thermostat monitors and regulates the temperature inside the dryer. If your appliance isn’t heating as expected, replacing this part may alleviate the issue. This kit includes the instructions, (2) jumper wires, (2) wire nuts and (1) adjustable dryer cycling thermostat. Access to this part differs depending on the type of dryer […]
1 in stock
Description
This Adjustable Dryer Cycling Thermostat monitors and regulates the temperature inside the dryer. If your appliance isn’t heating as expected, replacing this part may alleviate the issue. This kit includes the instructions, (2) jumper wires, (2) wire nuts and (1) adjustable dryer cycling thermostat. Access to this part differs depending on the type of dryer you have, so be sure to check the included instructions. Be sure to also check your instructions to set the thermostat’s temperature. Replacing this part will require basic hand tools, some disassembly of the dryer and novice repair experience. You must unplug the dryer or shut off the house circuit breaker for the appliance before installing this part.Part Specification• This product is a Factory Certified Part. These three words represent quality parts and accessories designed specifically for your appliance. Time tested engineering that meets our strict quality specifications• This product is a replacement part• Package contains (1) Dryer Cycling Thermostat• Tools Needed: Multi screwdriver
DIY Guide to Replacing a WP694674 Whirlpool Cycling Thermostat
1. Before attempting to replace the cycling thermostat, be sure to shut off the power to the appliance to avoid any potential electric shock or injury.
2. Locate the cycling thermostat. You can usually find this part near the main control panel of the appliance.
3. Remove the old cycling thermostat by loosening the screws or clips that hold it in place. Pull the thermostat gently away from the appliance.
4. Inspect the wiring leading to the old thermostat and make sure to note which connects to each terminal. Disconnect the wiring and set aside.
5. Install the new WP694674 cycling thermostat. Connect the wiring to terminals on the new part, taking care to match them up correctly.
6. Secure the new cycling thermostat in place using the screws or clips.
7. Carefully test the new thermostat to ensure that it is working properly.
8. Once satisfied with the operation of the new thermostat, turn power back on to the appliance.
With these steps, you can easily replace your WP694674 Whirlpool cycling thermostat. If you ever have any questions about the installation process, or if you run into problems, it's always a good idea to consult an expert for help.
Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
Additional information
| Weight | 0.093900 kg |
|---|---|
| Dimensions | 4.88 × 2.72 × 0.98 cm |
| Part Type | Fuse, Sensor & Thermostat, Thermostat |
| Dimension |
- WPL 00694674 (wpl-00694674)
- WPL 229420 (wpl-229420)
- WPL 231563 (wpl-231563)
- WPL 232960 (wpl-232960)
- WPL 233155 (wpl-233155)
- WPL 237440 (wpl-237440)
- WPL 237932 (wpl-237932)
- WPL 238879 (wpl-238879)
- WPL 238919 (wpl-238919)
- WPL 303392 (wpl-303392)
- WPL 33002409 (wpl-33002409)
- WPL 694674 (wpl-694674)
- WPL ET177 (wpl-et177)
- WPL ET177GL (wpl-et177gl)
- WPL 303035 (wpl-303035)
