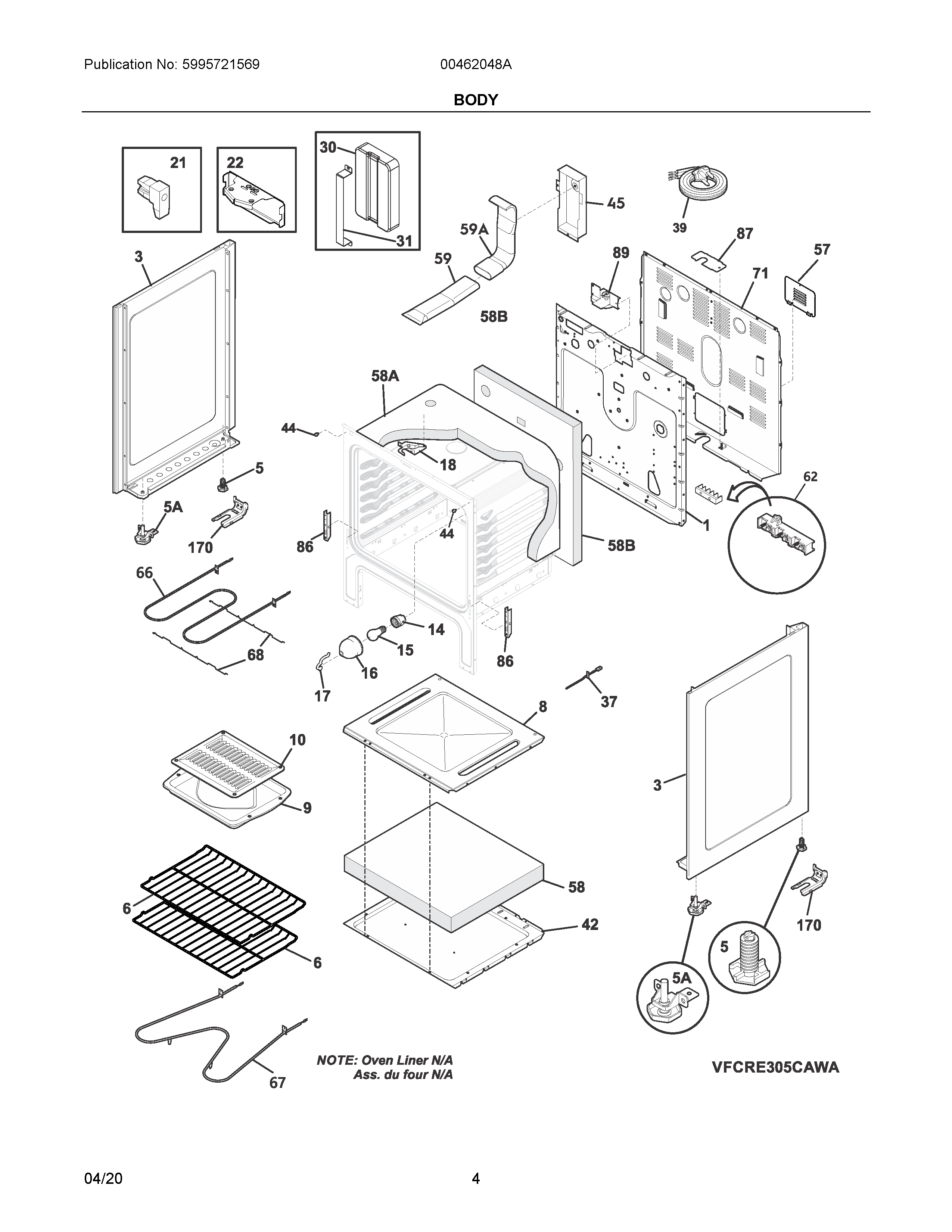

00462048A 03 – BODY

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316210800 Frigidaire Button Plug
NIB	316205500 Frigidaire Oven Nut
NIA	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIA	316001017 Frigidaire Screw
NI	316279600 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316282700 Frigidaire Oven Screw
NIA	316418900 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	316260800 Frigidaire Screw-SHOULDER
NI	316506000 Frigidaire Oven Bracket
NIC	5303289910 Frigidaire Oven Screw
NI	5304520707 Frigidaire Harness
NI	316418901 Frigidaire Oven Screw
NIB	316116000 Frigidaire Screw
1	316401806 Frigidaire Panel
3A	316400143 Frigidaire Panel
3	316400142 Frigidaire Panel
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
6	316496201 Frigidaire Oven Rack
8	316400601 Frigidaire Oven Range Bottom Panel
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	5304520383 Frigidaire Cover
21	316408000 Frigidaire Oven Clip Assembly
22	316286300 Frigidaire Bodyside Bracket
26A	316498200 Frigidaire Oven Bracket
30	COUNTERWEIGHT, CONCRETE BLOCK
31	BRACKET, CONCRETE BLOCK
37	316490000 Frigidaire Oven Range Temperature Sensor
39	WCI 318113111
42	316400701 Frigidaire Oven Shield
44	316517600 Frigidaire Oven Spacer
45	316234100 Frigidaire Oven Shield
57	316283600 Frigidaire Oven Cover
58	316403805 Frigidaire Insulation
58B	316406505 Frigidaire Insulation
58A	316406605 Frigidaire Insulation
59	316208201 Frigidaire Oven Tube
59A	316208304 Frigidaire Oven Tube
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	316203200 Frigidaire Oven Broil Element 2400W
67	316075103 Frigidaire Oven Bake Element
68	316404002 Frigidaire Support Assembly
71	316283204 Frigidaire Oven Shield
86	316441300 Frigidaire Receptacle
87	316081202 Frigidaire Bracket
