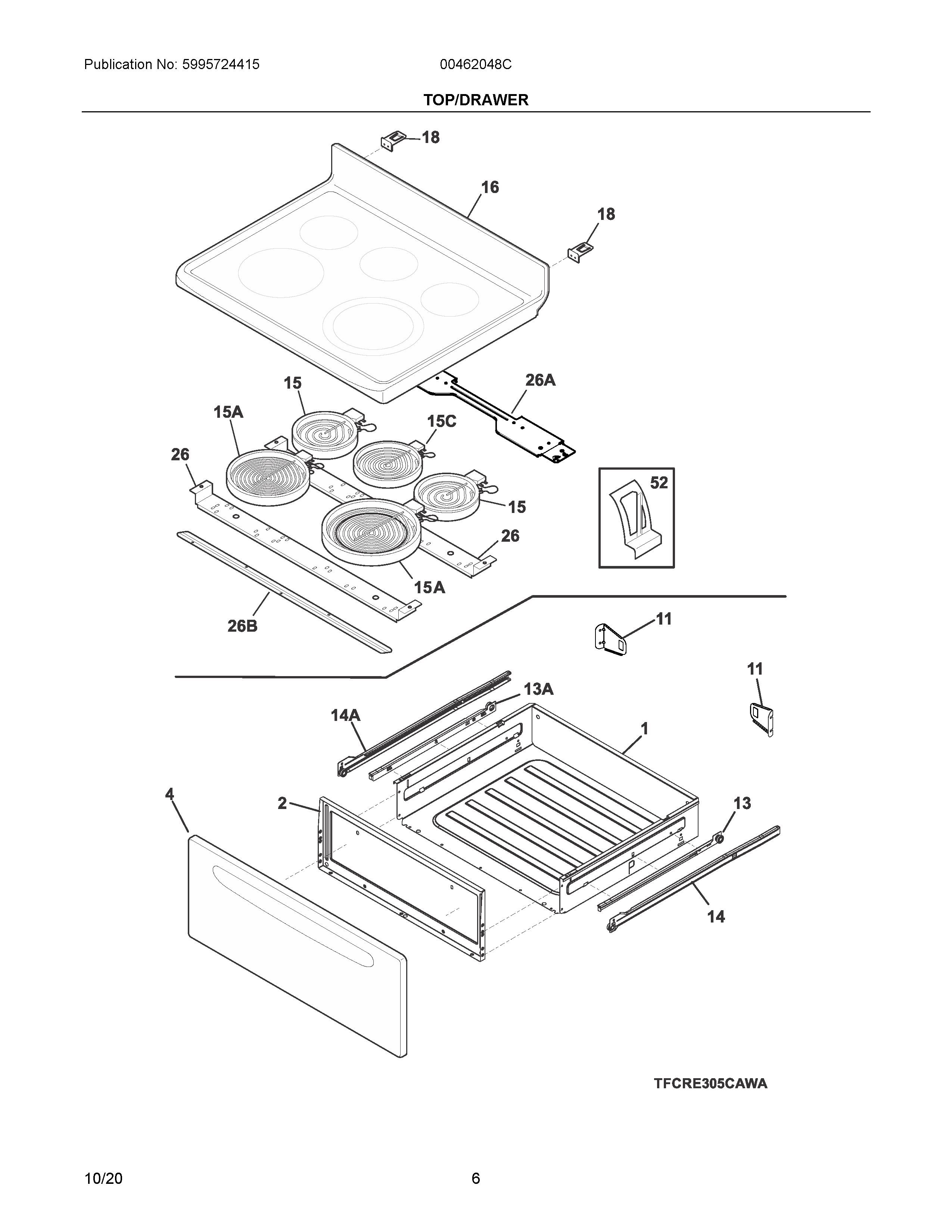

00462048C 04 – TOP/DRAWER

Products

Position	Product
NI	5304522950 Frigidaire Harness
NI	316001017 Frigidaire Screw
NIA	5308014215 Frigidaire Oven Screw
NI	316418900 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316260800 Frigidaire Screw-SHOULDER
NI	316021105 Frigidaire Oven Screw
NI	316021132 Frigidaire Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304511973 Frigidaire Oven Panel
10	5304507924 Frigidaire Oven Screw
11	5304517906 Frigidaire Oven Bracket
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A	5304517903 Frigidaire Oven Glide Drawer
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
14A	5304517902 Frigidaire Oven Glide Drawer
15C	5304521951 Frigidaire Element
15A	5304533520 Frigidaire Element
15	318178110 Frigidaire Oven Range 6" Surface Element
16	5304514991 Frigidaire Smoothtop
18	316580800 Frigidaire Hinge Bracket
26A	316498200 Frigidaire Oven Bracket
26B	316607600 Frigidaire Bracket
26	5304512926 Frigidaire Channel
43	5303285179 Frigidaire Oven Door Screw
52	316461700 Frigidaire Oven Clip Assembly
