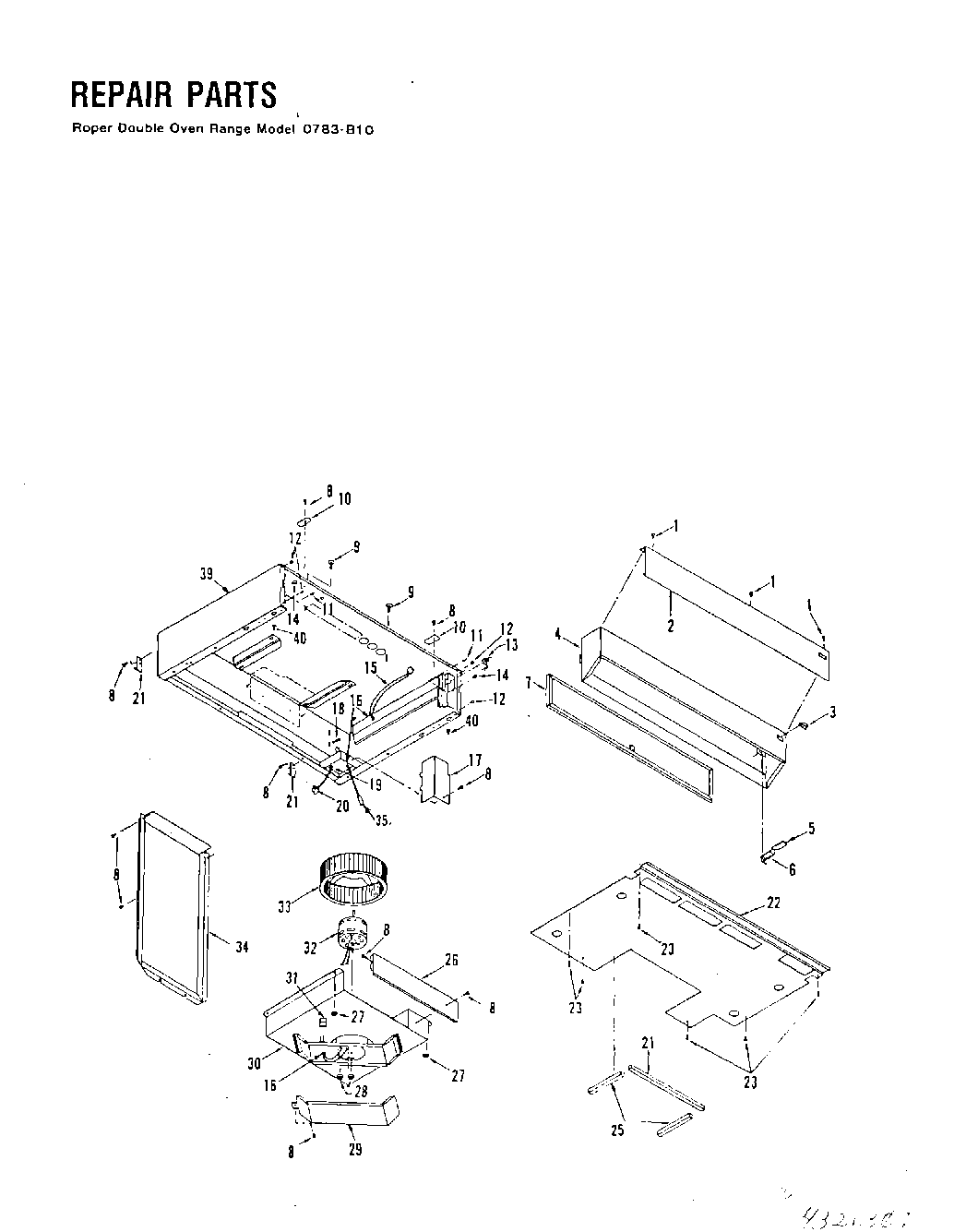

0783B10 02 – SECTION

Products

Position	Product
	xxDuctfree Filter
1	No.8-18 x 1/4 Sheet Metal Screw (3 Req.)
2	Decorator Trim Plate
3	Push Button
4	Front Cover
5	Switch Actuator
6	Actuator Spring
7	Aluminum Filter
8	No.8B x 3/8 Hex Head Sheet Metal Screw (10 Req.)
9	1/4-20 x 1/2 Truss Head Machine Screw (2 Req.)
10	Front Cover Safety Strap (2 Req.)
11	1/8 Pop Rivet (2 Req.)
12	Plastic Plug (4 Req.)
13	On/Off Switch w/leads
14	Filter Retaining Clip (2 Req.)
15	Wire Harness
16	Strain Relief Bushing (2 Req.)
17	Wiring Box Cover
18	No.10-32 x 1/2 Green Ground Screwx
19	Strain Relief Bushing
20	Cord Assembly
21	Hood Mounting Bracket (2 Req.)
22	Bottom Panel
23	No.10-32 x 5/16 Sheet Metal Screws (6 Req.)
24	Foam – Long
25	Foam – Short (2 Req.)
26	Ventless Blower Discharge Cover
27	1/4-20 Whiz Hex Nut (2 Req.)
28	No.8-32 Keps Nuts (2 Req.)
29	Air Duct Cover
30	Blower Housing
31	Motor Plug
32	Motor
33	Blower Wheel
34	Air Chute
35	Wiring Harness
39	Housing Assembly
40	Shoulder Screw (2 Req.)
