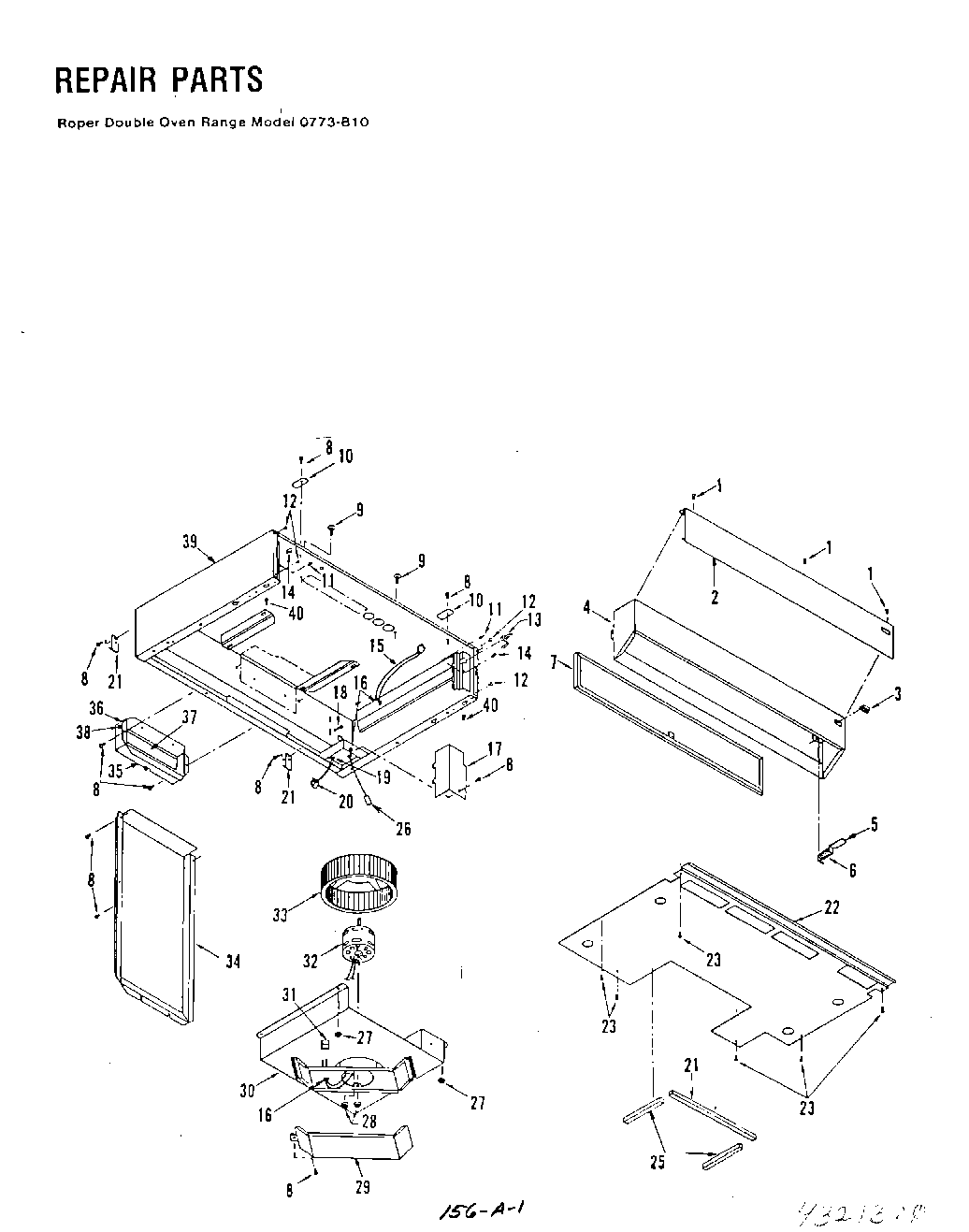

0783B10-1 01 – SECTION

Products

Position	Product
	xxDuctfree Filter
1	No.8-18 x 1/4 Sheet Metal Screw (3 Req.)
2	Decorator Trim Plate
3	Push Button
4	Front Cover
5	Switch Actuator
6	Actuator Spring
7	Aluminum Filter
8	No.8B x 3/8 Hex Head Sheet Metal Screw (10 Req.)
9	1/4-20 x 1/2 Truss Head Machine Screw (2 Req.)
10	Front Cover Safety Strap (2 Req.)
11	1/8 Pop Rivet (2 Req.)
12	Plastic Plug (4 Req.)
13	On/Off Switch w/leads
14	Filter Retaining Clip (2 Req.)
15	Wire Harness
16	Strain Relief Bushing (2 Req.)
17	Wiring Box Cover
18	No.10-32 x 1/2 Green Ground Screwx
19	Strain Relief Bushing
20	Cord Assembly
21	Hood Mounting Bracket (2 Req.)
22	Bottom Panel
23	No.10-32 x 5/16 Sheet Metal Screws (6 Req.)
24	Foam – Long
25	Foam – Short (2 Req.)
26	Wiring Harness
27	1/4-20 Whiz Hex Nut (2 Req.)
28	No.8-32 Keps Nuts (2 Req.)
29	Air Duct Cover
30	Blower Housing
31	Motor Plug
32	Motor
33	Blower Wheel
34	Air Chute
35	Damper Assembly (Includes Key Nos. 36, 37 & 38)
36	Damper Frame
37	Damper Flap
38	Damper Bushing (2 Req.)
39	Housing Assembly
40	Shoulder Screw (2 Req.)
