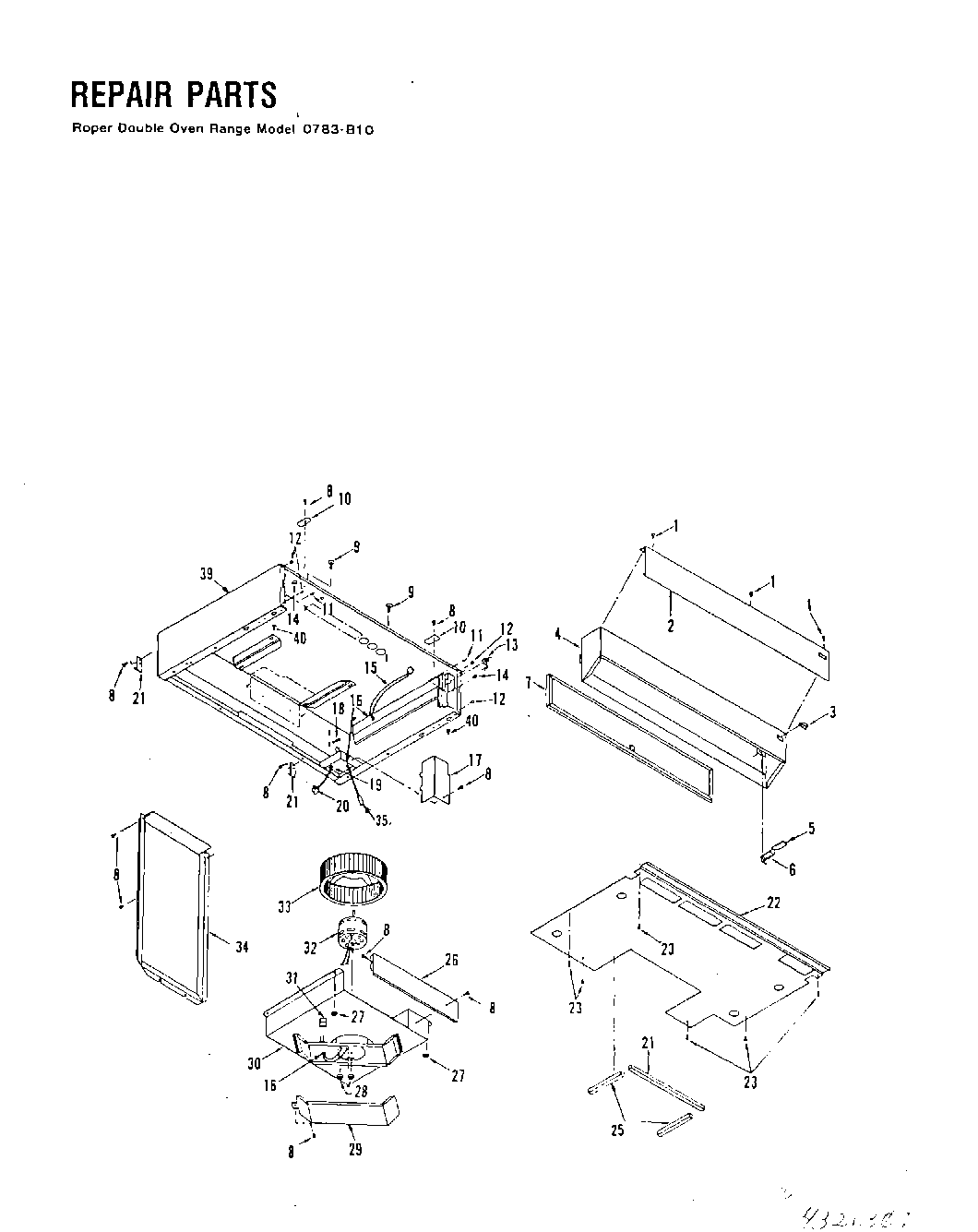

| xxDuctfree Filter |
| 1 | No.8-18 x 1/4 Sheet Metal Screw (3 Req.) |
| 2 | Decorator Trim Plate |
| 3 | Push Button |
| 4 | Front Cover |
| 5 | Switch Actuator |
| 6 | Actuator Spring |
| 7 | Aluminum Filter |
| 8 | No.8B x 3/8 Hex Head Sheet Metal Screw (10 Req.) |
| 9 | 1/4-20 x 1/2 Truss Head Machine Screw (2 Req.) |
| 10 | Front Cover Safety Strap (2 Req.) |
| 11 | 1/8 Pop Rivet (2 Req.) |
| 12 | Plastic Plug (4 Req.) |
| 13 | On/Off Switch w/leads |
| 14 | Filter Retaining Clip (2 Req.) |
| 15 | Wire Harness |
| 16 | Strain Relief Bushing (2 Req.) |
| 17 | Wiring Box Cover |
| 18 | No.10-32 x 1/2 Green Ground Screwx |
| 19 | Strain Relief Bushing |
| 20 | Cord Assembly |
| 21 | Hood Mounting Bracket (2 Req.) |
| 22 | Bottom Panel |
| 23 | No.10-32 x 5/16 Sheet Metal Screws (6 Req.) |
| 24 | Foam - Long |
| 25 | Foam - Short (2 Req.) |
| 26 | Ventless Blower Discharge Cover |
| 27 | 1/4-20 Whiz Hex Nut (2 Req.) |
| 28 | No.8-32 Keps Nuts (2 Req.) |
| 29 | Air Duct Cover |
| 30 | Blower Housing |
| 31 | Motor Plug |
| 32 | Motor |
| 33 | Blower Wheel |
| 34 | Air Chute |
| 35 | Wiring Harness |
| 39 | Housing Assembly |
| 40 | Shoulder Screw (2 Req.) |
