1020 02 – CLEANINGTOOLS

1020 02 – CLEANINGTOOLS

Written by

in

1020 02 – CLEANINGTOOLS

Products

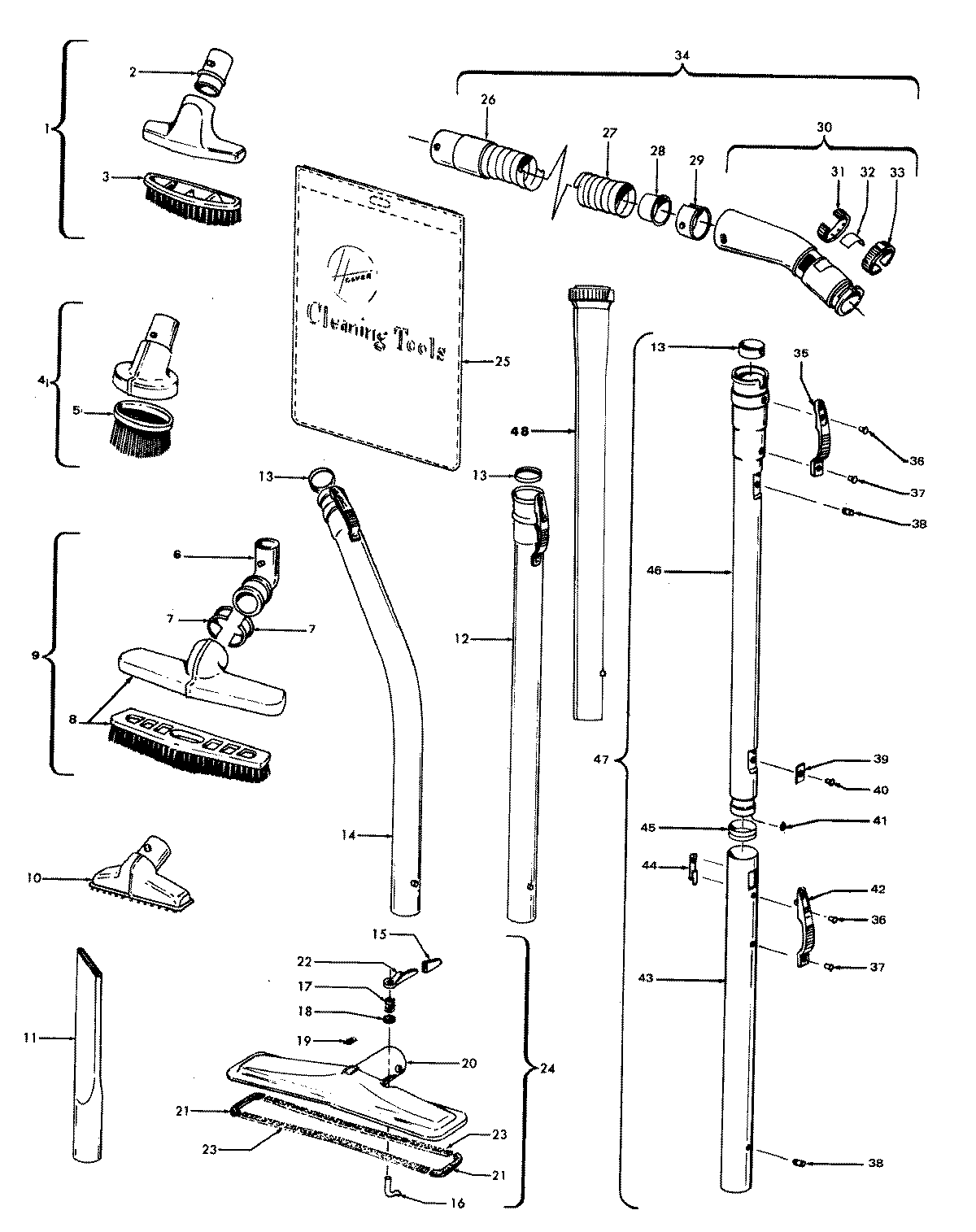

PositionProduct
1FURNITURE BRUSH-S305
1FURNITURE BRUSH-AG
2NOZZLE CONNECTOR TUB
3BRUSH BACK
4DUSTING BRUSH
4DUSTING BRUSH
4DUSTING BRUSH-AG
5DUSTING BRUSH FACE
6FLOOR BRUSH SWIVEL& COLLAR
6SWIVEL CONNECTOR – A
7FLOOR BRUSH SWIVEL B
7SPLIT RING
8FLOOR BRUSH BACK & N
9FLOOR BRUSH-AAP-FRIC
9FLOOR BRUSH
9FLOOR BRUSH-AG-S3273
10FURNITURE NOZZLE-AG
10FURNITURE NOZZLE-AG-
11CREVICE TOOL-AG -S32
11CREVICE TOOL – AG
12EXTENSION TUBE ASSEM
13GASKET
14HOSE TUBE ASSEM. – A
15FOOT PAD – F5047
16LATCH-U4901-U4903
17SPRING
18WASHER
19PADS-2910
21SEAL-END-U4901-U4903
22LATCH LEVER-U4901-U4
23SEAL-SIDE-U4901-U490
24CONVERTER BODY ASSEM
25TOOL BAG U3P03
26HOSE CONNECTOR-AAP-U
26HOSE CONNECTOR-BMH-J
26HOSE CONNECTOR-SHORT
27HOSE LESS ENDS MOLDE
27HOSE LESS ENDS-AAP-U
27HOSE LESS ENDS-AAP
28HOSE SLEEVE – BZ
29HOSE CONNECTOR COLLA
29HOSE CONNECTOR COLLA
30HOSE GRIP W/SC-AG-S1
30HOSE CONNECTOR-CURVE
30HOSE CONNECTOR CURVE
30HAND GRIP
31SUCTION CONTROL RING
32HOSE CONN LABEL-U490
33LATCH RING-AG-S3273
34HOSE ASSEM COMP – AA
34HOSE ASSM COMP-MLD-J
34HOSE ASSEMBLY COMP-F
34HOSE ASSEM COMP-AAP-
35TUBE LATCH
36RIVET
37RIVET
38RIVET
39PLATE
40RIVET
41WASHER
42TUBE LATCH – AAT
43EXTENSION TUBE OUTER
44TUBE GUIDE
45GASKET
46EXTERNION TUBE INNER
47EXTENSION WAND – 211
48WPL 38634078
48WPL 3863801P
