1020 05 – MAINBODY

1020 05 – MAINBODY

Written by

in

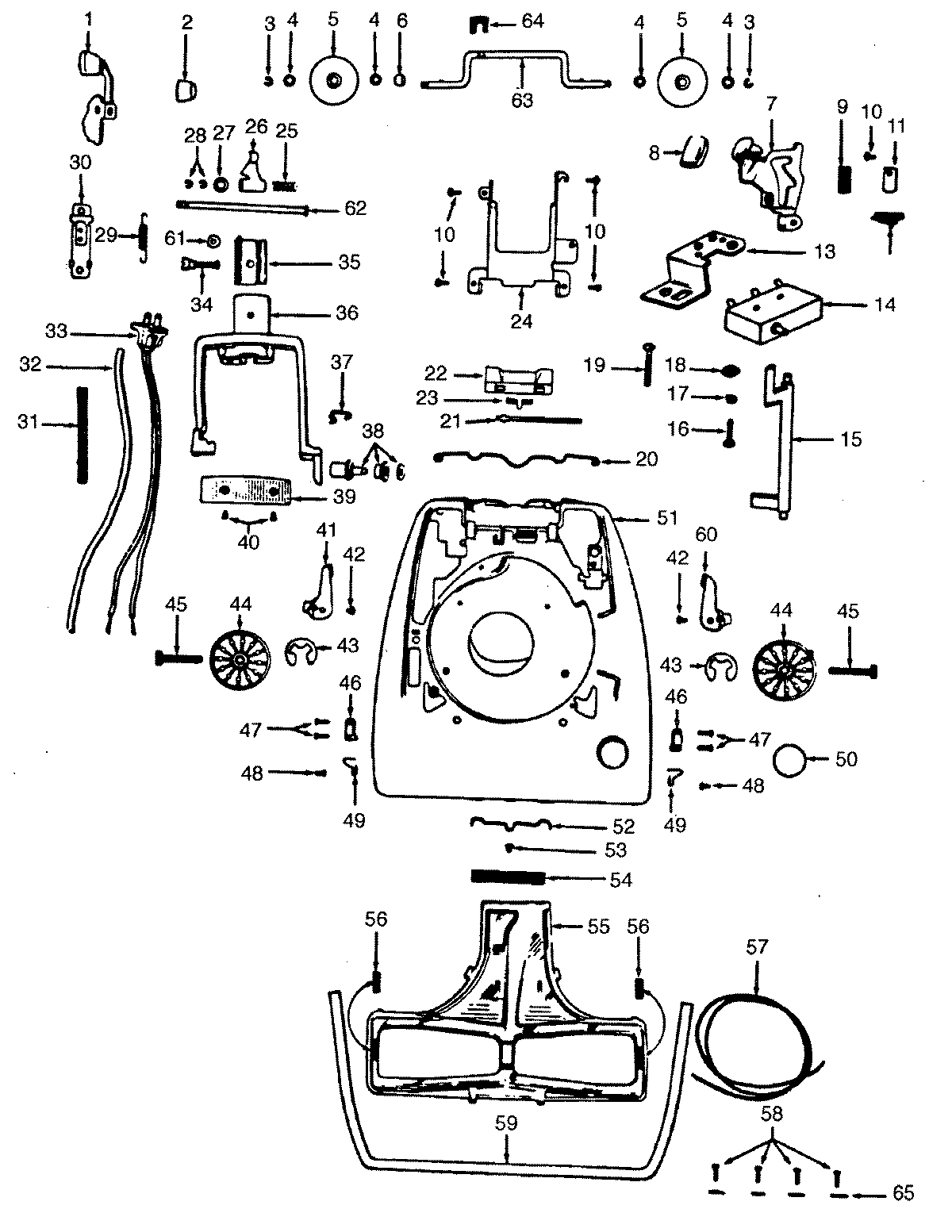

1020 05 – MAINBODY

Products

Position	Product
1	NOZ ADJ LEVER
1	NOZZLE ADJUSTMENT LE
2	FOOT PAD-JM
3	LOCK RING-1060
4	WASHER
5	REAR WHEEL-AG-C1K01
6	SPACER
7	HDL CONT LEVER-JM
7	HDL CONT LVR ASSM-U4
8	FOOT PAD-AG -C1E03
9	SPRING-1060
10	MACHINE SCREW
10	SEMS UNIT-U4014-079
11	PIVOT PIN RETAINER
12	PIVOT PIN
13	SWITCH BRACKET
14	HI-SPEED SWITCH
14	SWITCH-U4313
15	SWITCH ACTUATOR
16	SCREW-MACHINE
17	LOCK WASHER
18	NUT
19	SCREW
20	BAG FL RET SPRING-U4
20	BAG FLANGE RET SPRING
21	VALVE SHAFT-U7033
22	Gasket
22	CONVERTER VALVE 65
23	TOOL CONN VALVE SPRI
24	CONVERTER HOUSING-JM
24	CONVERTER HOUSING
25	SPRING
26	BAG FLANGE CLAMP LEVER
27	WASHER
29	SPRING
30	CAM FOLLOWER ASSEM
31	MOTOR LEAD SPRING
32	CORD COVER TUBING-JM
33	SOCKET PLUG
34	SCREW MCH – 918-01
34	BOLT & NUT
35	HDL RETNG PLATE-U401
35	HANDLE RETAINER PLAT
36	BAIL ASSEMBLY-U4014-
36	BAIL-JM
37	CORD CLIP-AAP-U4519
38	HANDLE CONT ROL PIN
39	BAIL GRIP 65
39	BAIL COVER PLATE – U
40	SCREW
41	BOTTOM PLATE LATCH-R
42	RIVET
43	LOCK RING
44	FRONT WHEEL
45	MAIN CASTING-U4069
45	FRONTWHEEL SHAFT
46	AGITATOR SUPPORT PLA
47	RIVET
48	RIVET SEMI-TUBULAR
49	AGITATOR CLAMP SPRIN
50	MEDALLION-U7047/45/4
51	MAIN CASTING-U4001
51	MAIN BODY ASSM-COMMO
52	WPL 034439
53	WPL 161882
54	WPL 047237
55	WPL 167238
56	WPL 34111001
57	WPL 31718001
58	WPL 12997AW
59	WPL 36231501
59	WPL 16974JM
59	WPL 168497JM
59	WPL 017458JM
60	WPL 35446005
62	WPL 161509AY
63	WPL 33152003
63	WPL 161512FW
63	WPL 41915501
64	WPL 34252005
65	WPL 023878
66	WPL 670839
66	WPL 670029
66	WPL 669814
66	WPL 669548
66	WPL 663678
66	WPL 661059
66	WPL 641980
66	WPL 808249
