1020 06 – MOTOR ASSEMBLY, HOOD

1020 06 – MOTOR ASSEMBLY, HOOD

Written by

in

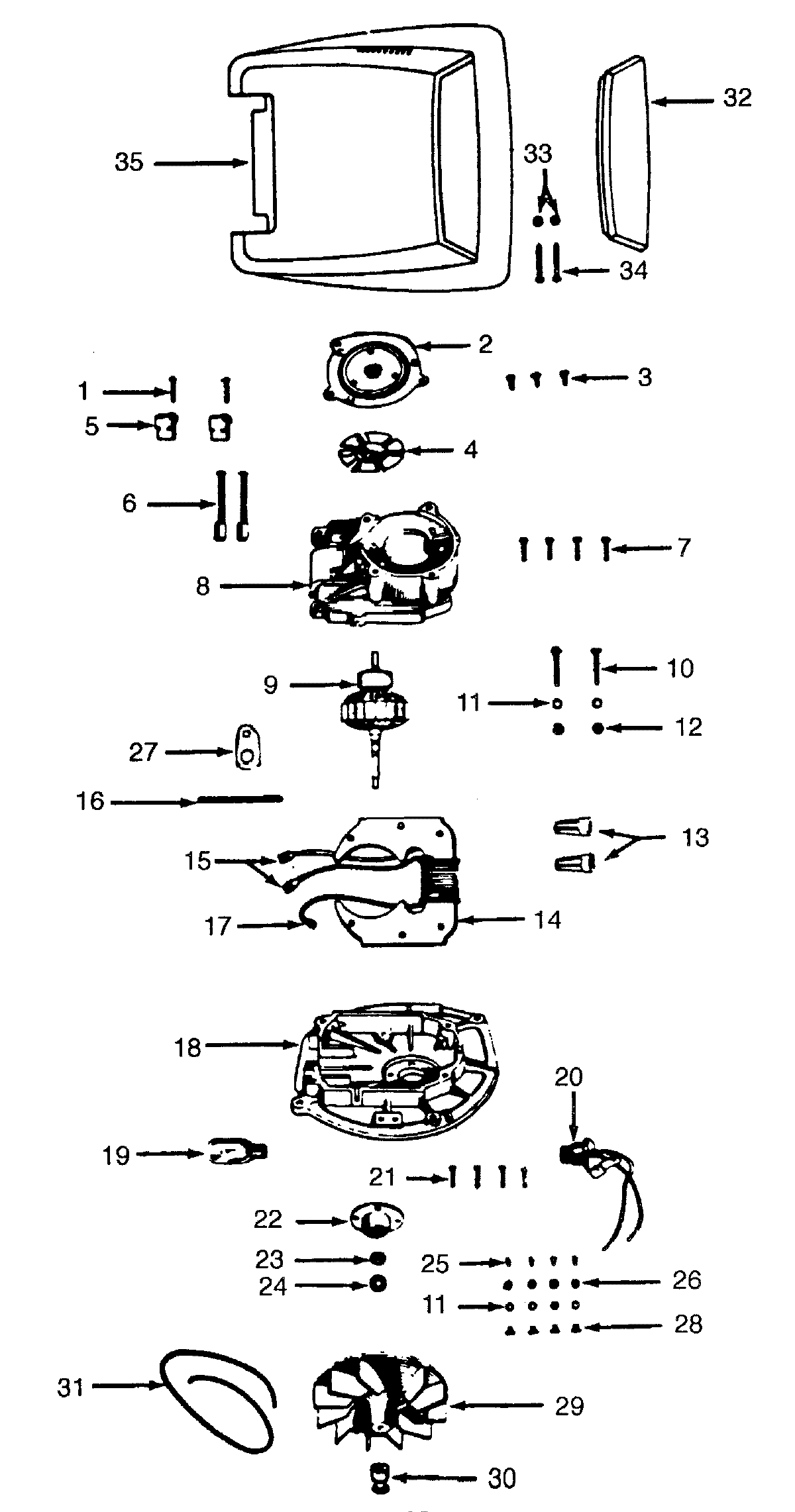

1020 06 – MOTOR ASSEMBLY, HOOD

Products

Position	Product
1	SCREW
2	UPPER MOTOR BEARING
3	SCREW
4	VENTILATING FAN-U415
5	BRUSH CAP – U4313
6	MOTOR BRUSH
7	SCREW
8	UPPER MOTOR CASING
9	ARMATURE-8MM
10	FIELD BOLT
11	LOCK WASHER
12	NUT HEX 5140
13	WIRE NUT
14	FIELD COIL
14	FIELD COIL
15	TERMINAL
16	CABLE TIE
17	TERMINAL 1060
18	Motor Case LH
19	DIRT FINDER LAMP
20	DIRT FINDER SOCKET
21	SCREW
22	BEARING REPLACEMENT
23	FAN SPACER-CTV
24	WASHER-S3001
25	SCREW
26	WASHER-LOCK-843
27	WIRE HOLDER
28	NUT
29	FAN
30	MOTOR PULLEY-HEAT IN
31	MOTOR GASKET-65
32	DIRT FINDER LENS-65
32	LENS
33	CAPSERT-1060
34	SCREW
35	HOOD COMPLETE – JM –
35	HOOD/LENS ASSEMBLY
35	HOOD-CD U4187
35	MOTOR HOOD-EW
35	MOTOR HOOD – JE U408
35	HOOD-U4A01
35	MOTOR HOOD
35	MOTOR HOOD COMPLETE-
35	MOTOR HOOD-593
35	MOTOR HOOD 728
35	MOTOR HOOD
36	MOTOR
36	MOTOR
36	MOTOR COMPLETE
36	INSULATION SHIELD
37	WASHER-HEAT INSULATI
37	ARMATURE-SPACER/SPLI
37	SILMATE RTV-1473 SEA
