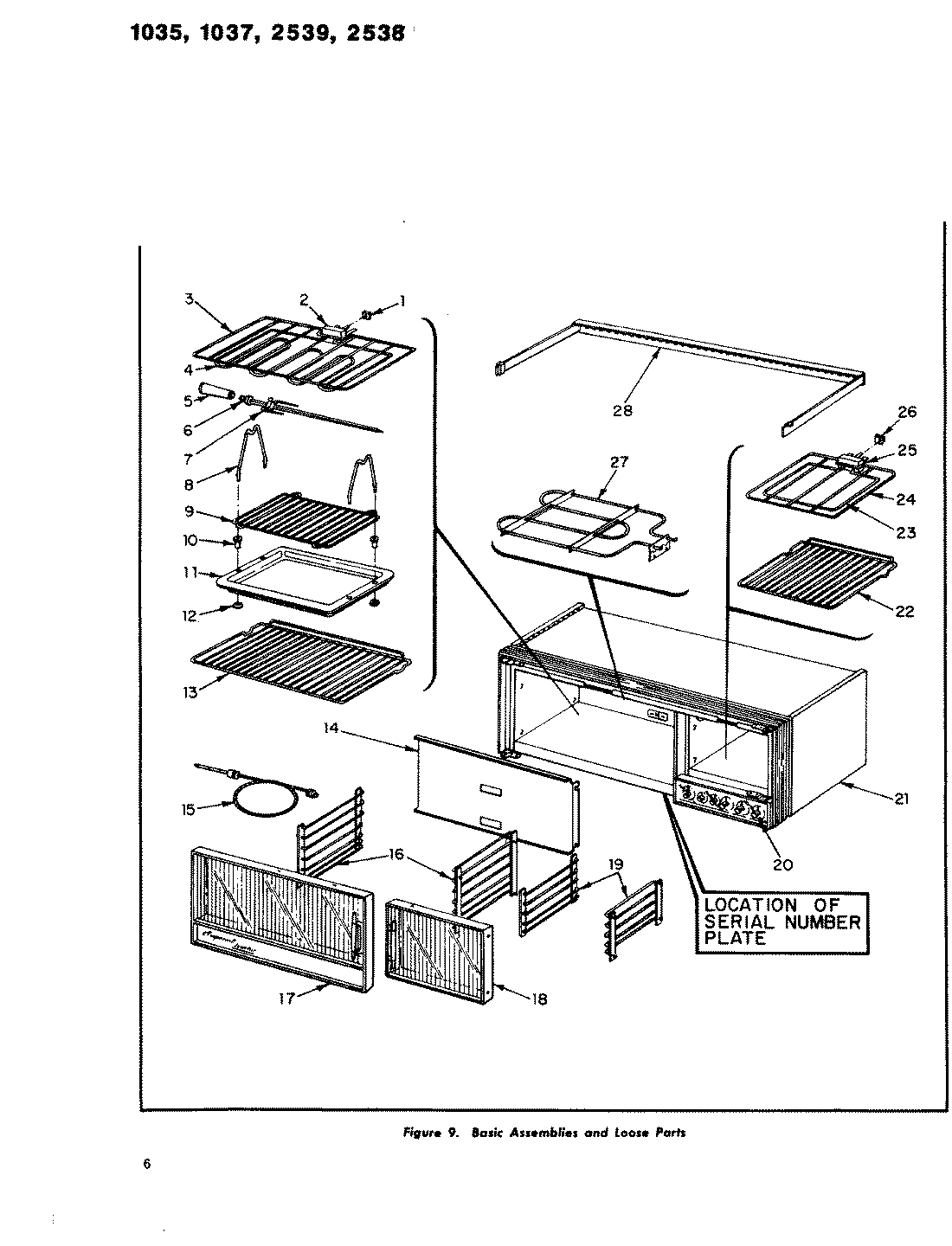

1035 01 – BASIC ASSEMBLIES & LOOSE PARTS

1035 01 – BASIC ASSEMBLIES & LOOSE PARTS

Written by

in

1035 01 – BASIC ASSEMBLIES & LOOSE PARTS

Products

PositionProduct
3RACK, BAKE/BROIL
9BROILER PAN RACK
11BROILER PAN
13OVEN RACK, MAIN OVEN
14PLATE, BAFFLE
16RACK SUPPORT, MAIN OVEN
19PASTRY OVEN RACK SUPPORT
21NOT REQUIRED PART OR SEE NOTE
22OVEN RACK
23ELEM. SM
24RACK, PASTRY ELEMENT
25BLOCK, CERAMIC
26CLIP, FASTENER
27ELEMENT, BROIL
28BRACKET, HANGER ASSY.
