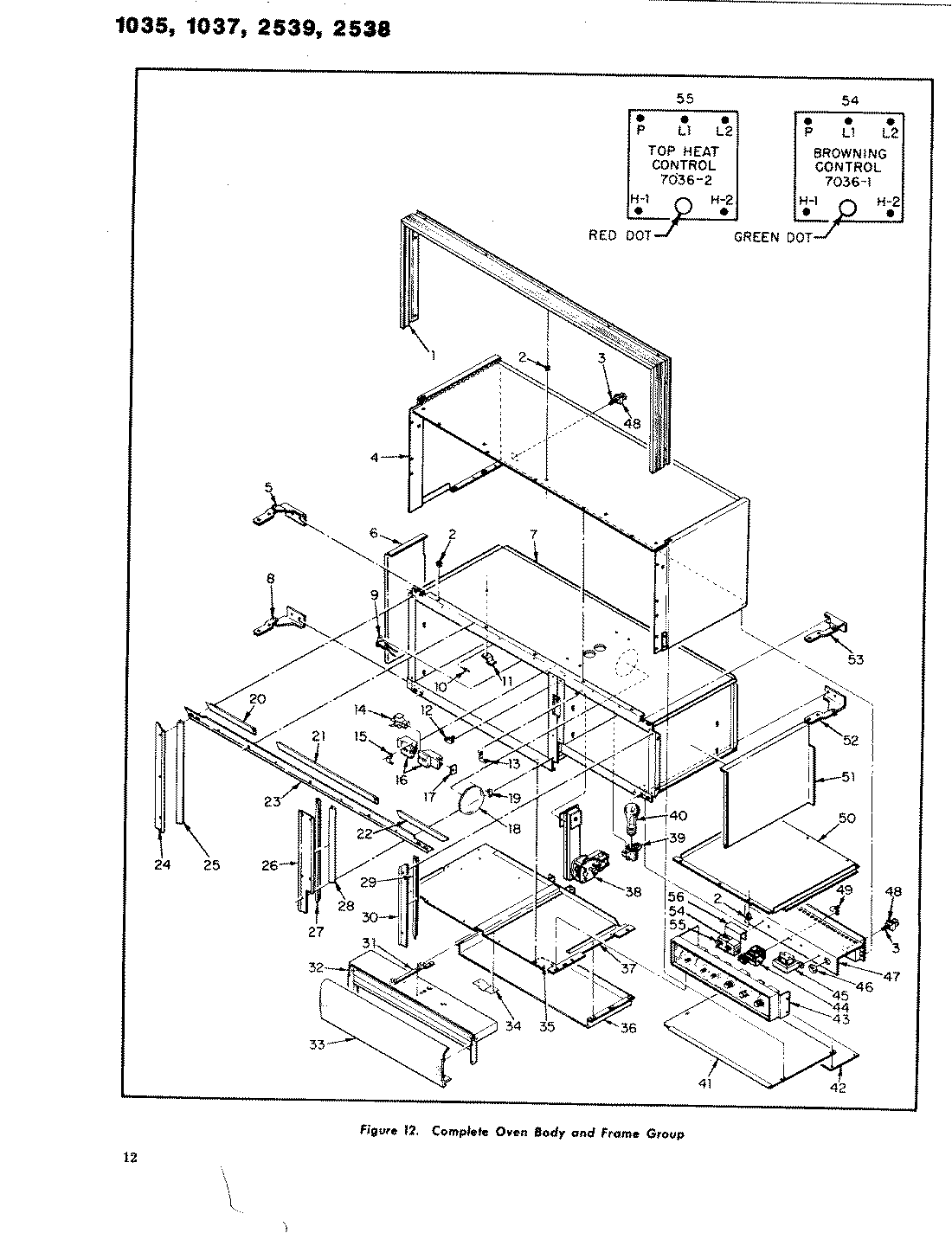

| 1 | EXTRUSION, OUTSIDE FRAME |
| 2 | SPACER, NYLON |
| 3 | W11117769 Whirlpool Refrigerator Leveler |
| 5 | HINGE, DOOR (LH)(TOP) |
| 6 | PASSAGE, AIR (LFT) |
| 7 | MAIN OVEN ASSY. |
| 8 | HINGE, DOOR (LH)(BOTTOM) |
| 10 | SCREW, BAFFLE PLATE |
| 11 | BRACLET, SUPPORT |
| 13 | WP7112P004-60 Whirlpool Thermal Clip |
| 14 | CONTACT, OVEN RECEPTACLE |
| 15 | RETAINER, ELEM RECEPTACLE |
| 16 | OVEN ELEMENT RECEPTACLE |
| 17 | WASHER, RETAINING |
| 18 | LENS, LIGHT |
| 19 | CLIP, LIGHT LENS |
| 20 | SEAL STRIP |
| 21 | SEAL STRIP |
| 22 | SEAL STRIP |
| 23 | RETAINER, SEAL TOP |
| 24 | TRIM |
| 25 | SEAL STRIP |
| 26 | SEAL RETAINER, CENTER |
| 27 | SEAL STRIP |
| 28 | SEAL STRIP |
| 29 | SEAL STRIP |
| 30 | SEAL RETAINER, RIGHT |
| 31 | EXHAUST GUIDE BAR ASSY. |
| 32 | EXHAUST ASSY. |
| 32 | EXHAUST ASSY. |
| 33 | COVER, EXHAUST FRONT |
| 34 | STOP, SLIDE |
| 35 | NOT REQUIRED PART OR SEE NOTE |
| 36 | BOX, EXHAUST |
| 37 | BOTTOM, OVEN ASSY |
| 39 | LIGHT RECEPTACLE |
| 40 | RANGE ONLY 40W 120V APPL BULB |
| 41 | SHIELD, WIRE |
| 42 | PANEL, INSPECTION |
| 43 | MOUNT, SWITCH ASSY. |
| 46 | GROMMET |
| 47 | WIRING BOX ASSY. |
| 48 | NUT |
| 49 | WIRE CONNECTING LUG |
| 50 | BOTTOM, OVEN |
| 51 | PASSAGE, AIR (RT) |
| 52 | HINGE, DOOR (RH)(BOTTOM) |
| 53 | HINGE, DOOR (RH)(TOP) |
| 54 | CONTROL, BROWNING (GREEN DOT) |
| 55 | CONTROL, TOP HEAT (RED DOT) |
| 56 | BRACKET, MOUNTING |
