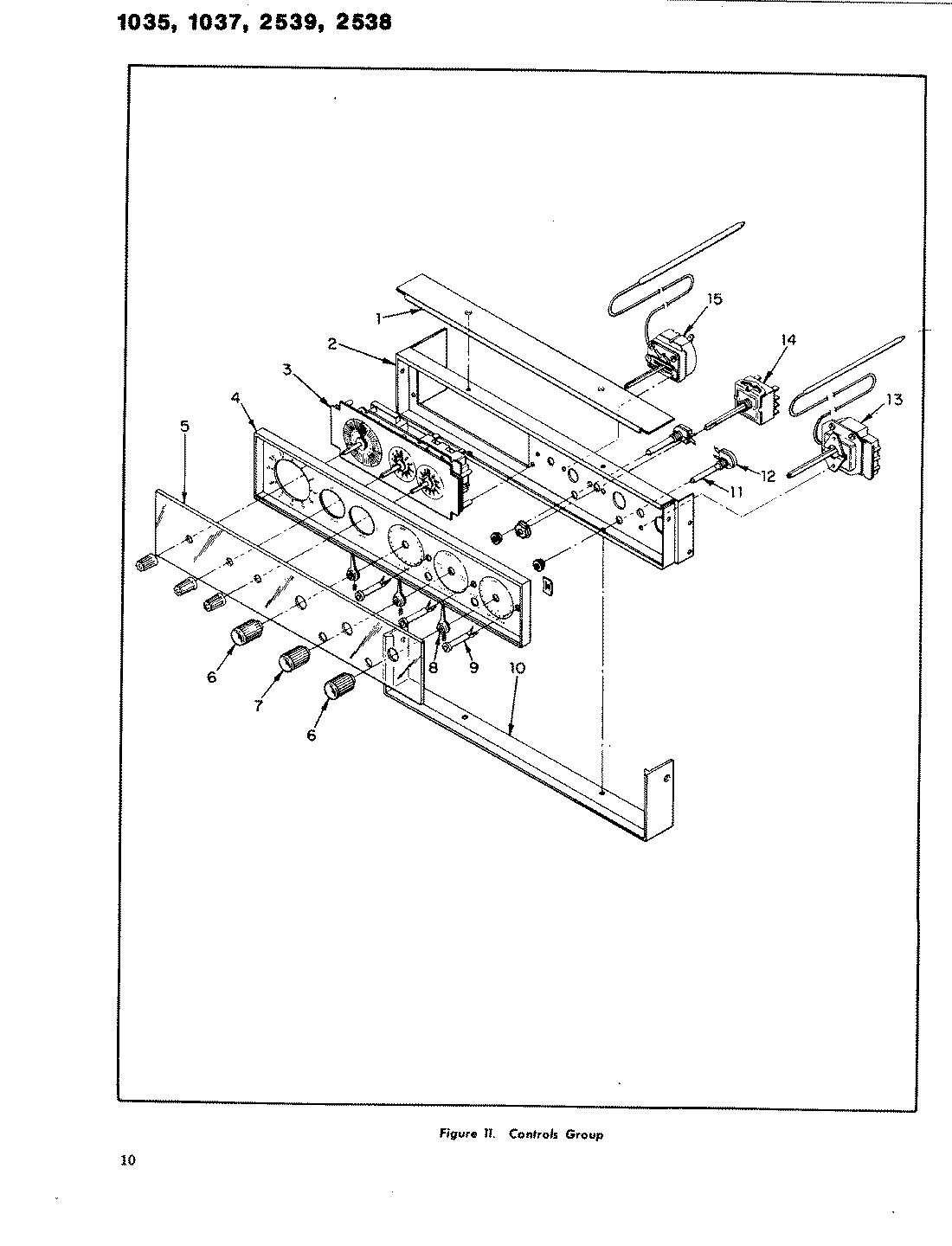

1035 03 – CONTROLS GROUP

Products

PositionProduct
1COVER, CONTROL BOX
2MOUNT, SWITCH ASSY.
3CLOCK
4PANEL, CONTROL
5GLASS, CONTROL PANEL
6KNOB, OVEN CONTROL
7KNOB, SELECTOR SWITCH
8SELECTOR & THERMOSTAT POINTER
9INDICATOR LIGHT W/MOUNTING NUT
10FRAME, CONTROL PANEL
11PUSH SWITCH EXTENSION
13THERMOSTAT
14SELECTOR SWITCH W/MOUNTING NUT
15THERMOSTAT
