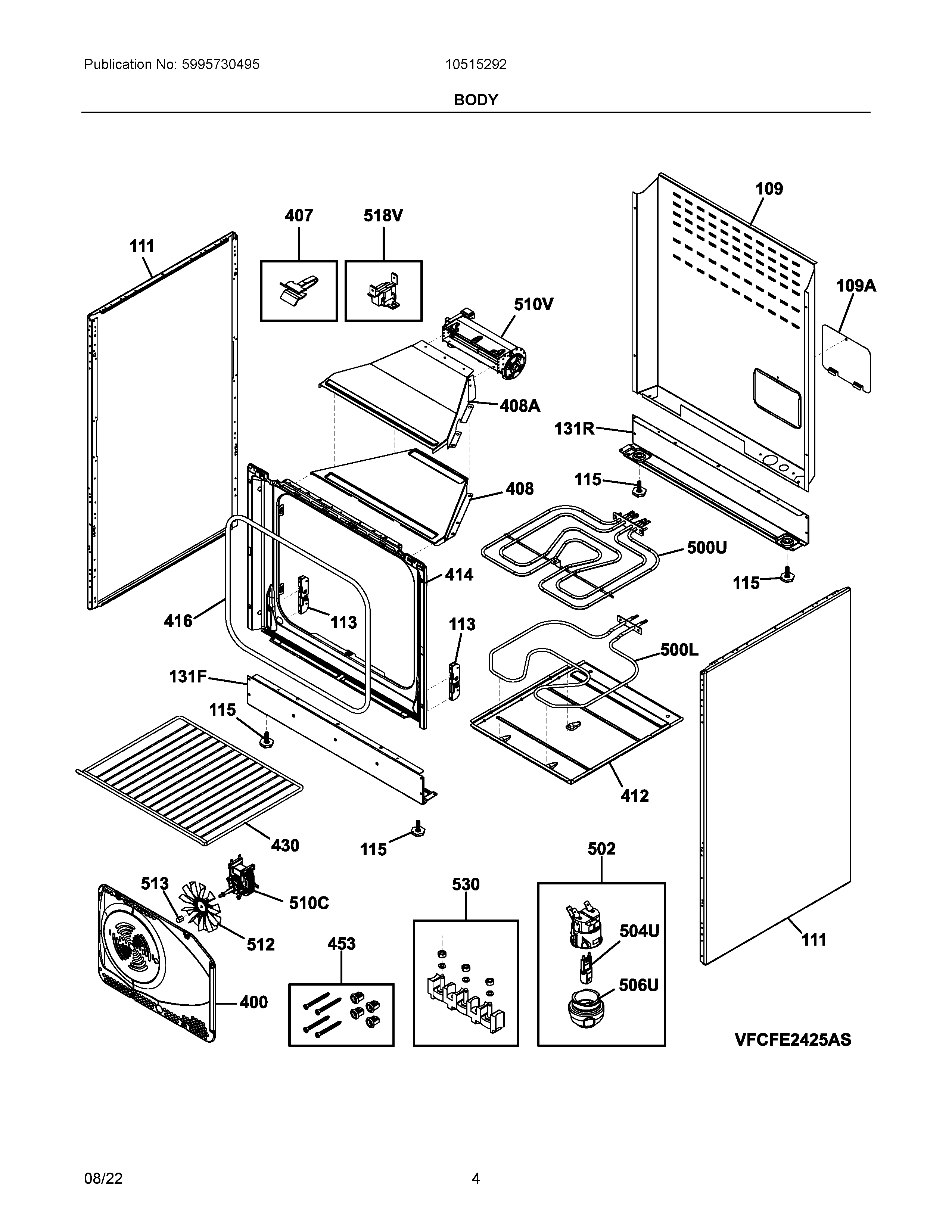

10515292 03 – BODY

10515292 03 – BODY

Written by

in

10515292 03 – BODY

Products

PositionProduct
NISUPPORT, CORNER
NIWEIGHT, COUNTER
109A19855802 Frigidaire Panel
109ACOVER, BACK PANEL
111A02114903 Frigidaire Panel
113A05102101 Frigidaire Receptacle
115A02244101 Frigidaire Oven Foot
131FTOE PLATE, FRONT, BLACK
131RA02827004 Frigidaire Panel
400PANEL, BACK, CONVECTION FAN
407CLIP, BULB, OVEN THERMOSTAT
408ACOVER, AIR CHANNEL
408AIR CHANNEL, LOWER
412COVER, LOWER ELEMENT
414342397603 Frigidaire Frame
416357732201 Frigidaire SEAL
430354659502 Frigidaire RACK
453KIT, BUSHING, (4 PCS), W/SCREWS
500LA04163901 Frigidaire Element
500UA04164101 Frigidaire Element Assembly
502LAMP ASSEMBLY, OVEN, W/BULB
504U318946500 Frigidaire Oven Light Bulb Range/Wall
506ULENS, OVEN LAMP
510CMOTOR, CONVECTION FAN
510V808962602 Frigidaire Blower Assembly
512BLADE, CONVECTION FAN
513NUT, FAN BLADE, CONVECTION
518V330208111 Frigidaire Thermostat
530405538919 Frigidaire KIT
