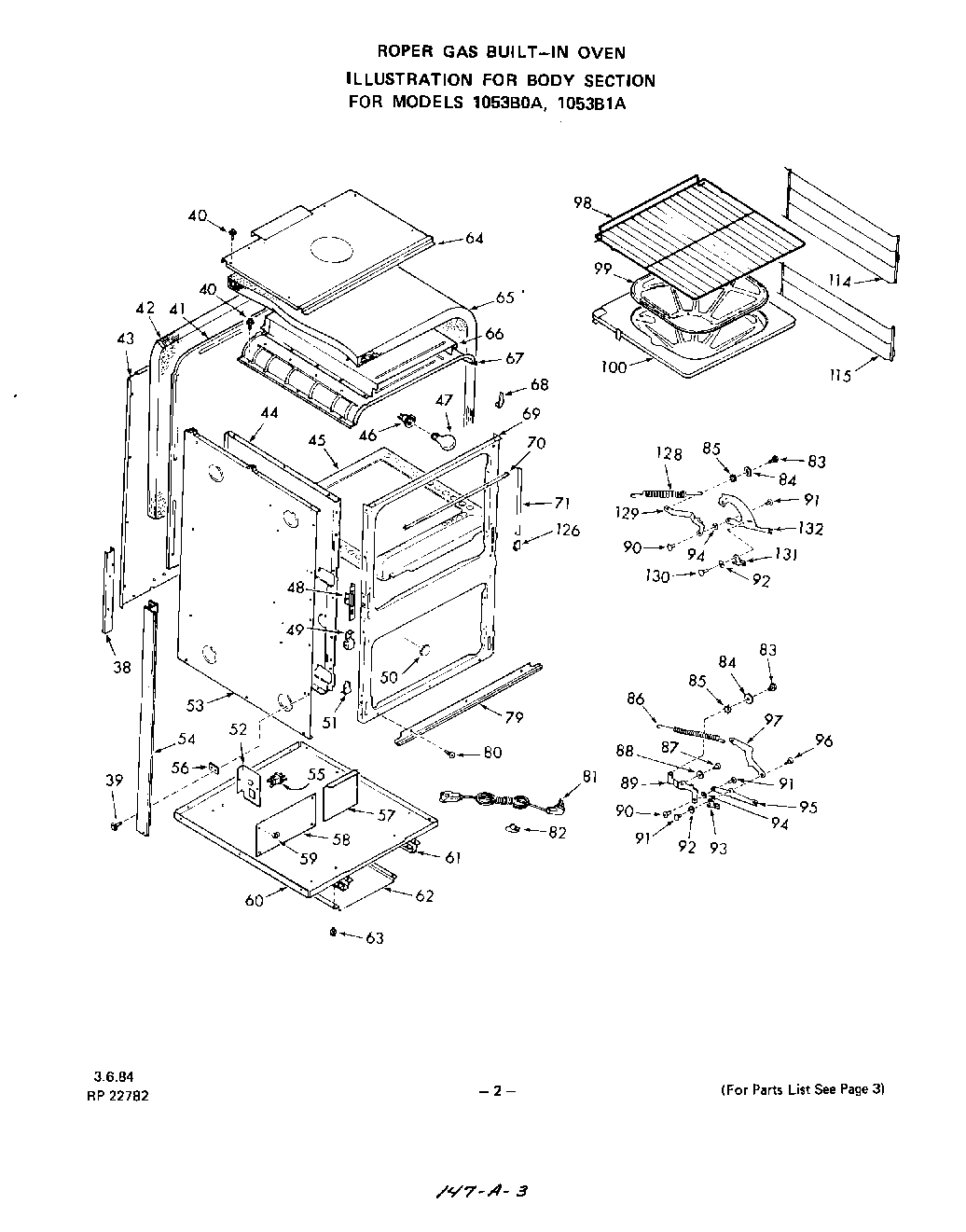

1053B0A 03 – BODY

Products

PositionProduct
38Channel Trim-Lt. or Rt.
39WPL 281160
40WP112432 Whirlpool Nut Assembly
41Oven Back
42Insulation-Oven Back
43Wire Cover-Oven Back
44Oven Side (Left)
44Oven Side (Right)
45Oven Bottom w/Baffle
46Holder-Oven Light Bulb
47Oven Lamp Bulb
48Support-Oven Door Hinge (Left)
48Support-Oven Door Hinge (Right)
49Bracket Door Spring (2 Required)
50Plug Button
51WPL 323446
52Disconnect Plate
53Body Side (Left)
53Body Side (Right)
54Side Trim-Front Frame (Left)
54Side Trim-Front Frame (Right)
55Disconnect
56Spacer-Side Trim (4 Req)
57Right Cover Plate
58Left Cover Plate
59Clip
60Main Bottom
61Channel-Main Bottom (Rt. or Lt.)
62Baffle-Main Bottom
63WPL 316365
64Oven Cabinet Top
65Insulation-Oven Top & Sides (1 Piece)
66Vent Box
67Oven Top
68Thermostat Bulb Clip (2 Required)
69Frt. Frame w/Rivets, Sleeves & Washers
70WPL 315944
71WPL 315945
79Lower Trim-Front Frame
80Screw 6-32×5/16“
81Service Cord
82Clip
83Bolt 1/4-20×3/8“
84WPL 323451
85WPL 69459
86Element, 2.0 KW EGO 7“
87Shoulder Rivet
88Roller
89Left (Up. or Lo. Oven)
89Right (Up. or Lo. Oven)
90Hinge Pivot Sleeve
91Rivet
92Washer
93Hinge Latch (Right)
93Hinge Latch (Left)
94Washer
95Left (Up. or Lo. Oven)
95Right (Up. or Lo. Oven)
96Hinge Pivot Sleeve
97Spring Link
98WPL 279539
99WPL 291392
100WPL 292051
114Oven Rac
115WPL 232899
115WPL 232900
126WPL 111480
126WPL 111481
128WPL 105825
129WPL 324048
129WPL 324047
130WPL 103314
131WPL 97697
131WPL 97696
132WPL 230981
132WPL 230980
