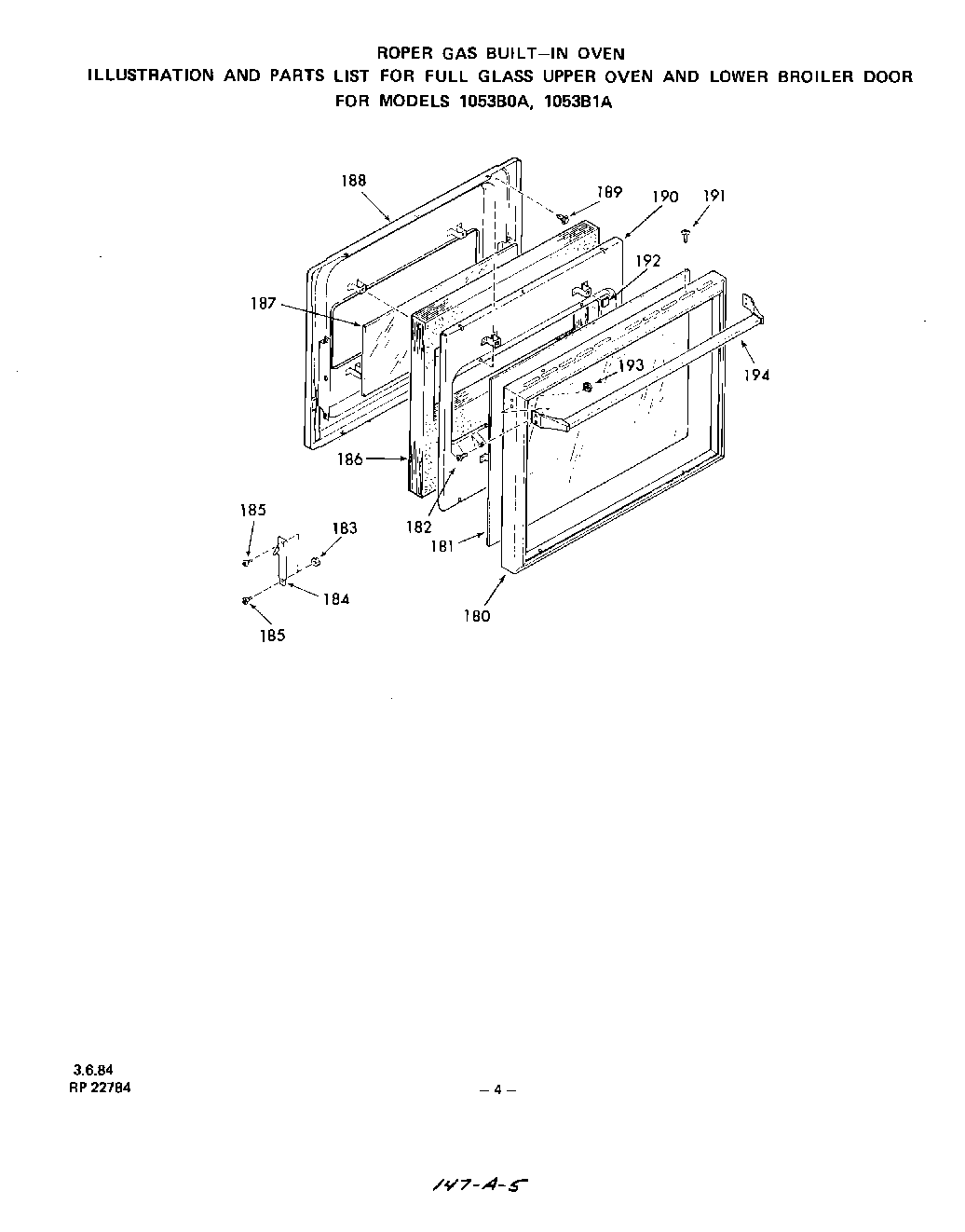

1053B0A 04 – FULL GLASS UPPER OVEN AND LOWER BROILER

Products

Position	Product
180	Door Frame (Upper Oven)
180	Door Frame (Lower Broiler)
181	Door Glass-Outer (Upper Oven)
181	Door Glass-Outer (Lower Broiler)
182	Screw 8-32 x 1/2“
183	Hex Nut 10-32
184	Hinge Arm Guide (Right)
184	Hinge Arm Guide (Left)
185	Shoulder Rivet
186	Insulation – Upper or Lower Door
186	Insulation Oven Door (Lower)
187	Door Glass-Inner
188	Door Lining (Lower Broiler)
188	Door Lining (Upper Oven)
189	Screw 10 – 32×3/8“
190	Lower
190	Insulation Retainer – Upper or Lower Door
191	Screw 6-32×3/8“
192	Spacer (4 Req.)
193	Keps Nut 8-32
194	Door Handle
