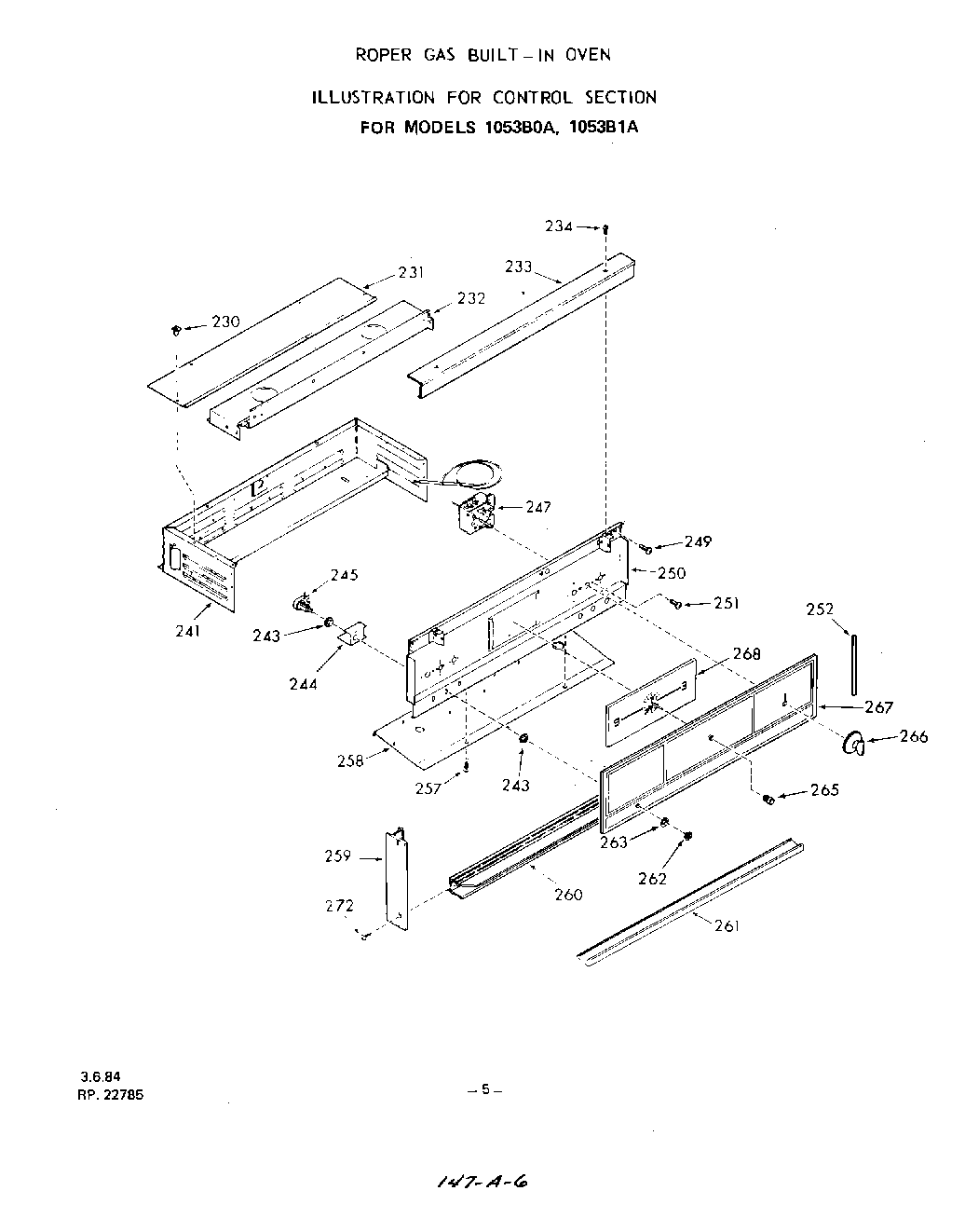

1053B0A 05 – CONTROL, LITERATURE

Products

Position	Product
	Gas Care & Use Guide
	Repair Parts Manual
	Operating Guide
	Installation & Reference Guide
	Filler Kit (Optional)
	Oustide Venting Kit (Optional)
230	Clip
231	Rear Top Cover
232	Top Cover (Front)
233	Lamp Shade
234	Screw 6-32×3/8“
241	Control Cover
243	Lock Nut
244	Shield-Switch
245	Push Switch-Oven Light
247	Thermostat
249	Screw 6-32×3/8“
250	Control Mounting Panel
251	WPL 78565
252	End Trim-Control Panel Glass (Rt or Lt)
257	Screw 10 – 32 x 1/4“
258	Bottom-Backguard
259	Side Trim-Control Panel (Right)
259	Side Trim-Control Panel (Left)
260	Lower Trim-Control Panel
261	Vent Trim
262	Knurled Nut
263	Washer
265	Knob-Clock (Start & Stop Time)
266	Knob-Thermostat
267	Backguard Glass
268	Handle, Drawer
272	Screw 6-32 x 1/2“
272	Wire Harness-Main
