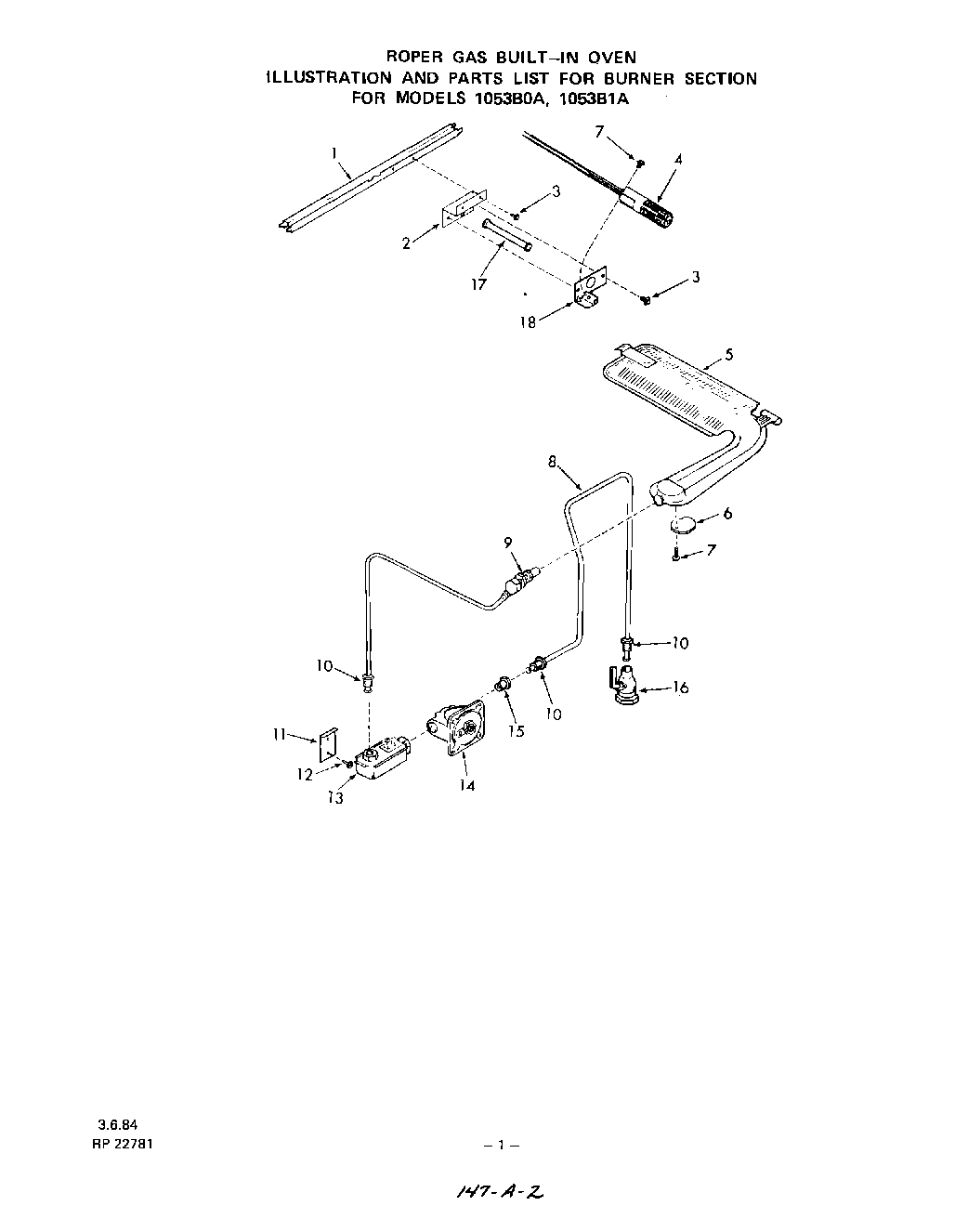

1053B1A 02 – BURNER

Products

PositionProduct
1Oven Burner Support
2Igniter Bracket
3Screw 10 – 32 x 7/16“
4Igniter
5Oven Burner
6Air Shutter
7Screw 10 – 32 x 1/4“
8Tubing 3/8“ (Shut Off to Union)
9Orfice Tubing w/Nut
10Inverted Nut 3/8“
11Bracket-Control Valve
12WP112432 Whirlpool Nut Assembly
13Control Valve
14Pressure Regulator
15Connector
16Inlet Valve
17Raceway-Igniter Wire
18Bracket-Igniter
