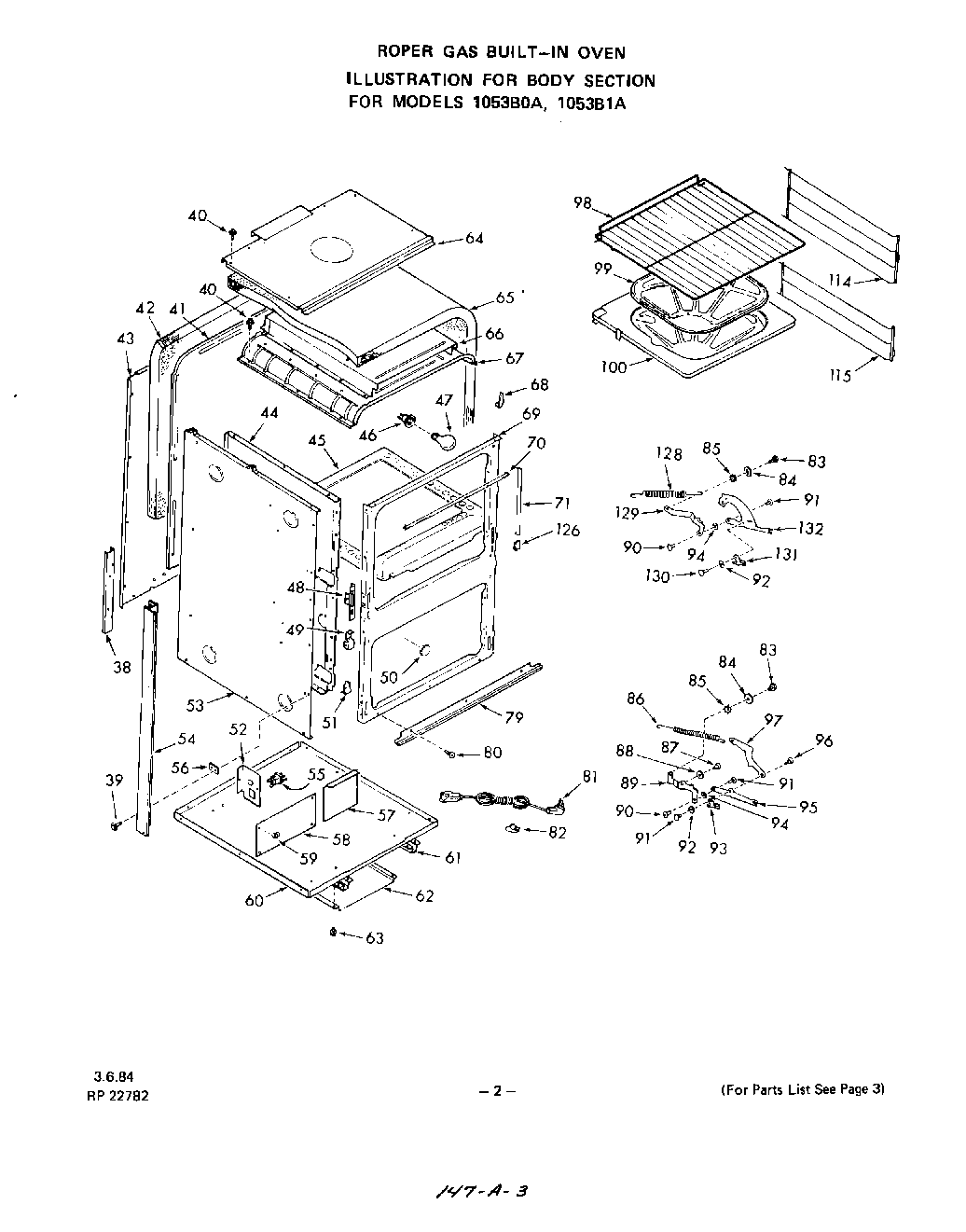

1053B1A 03 – BODY

Products

Position	Product
38	Channel Trim-Lt. or Rt.
39	WPL 281160
40	WP112432 Whirlpool Nut Assembly
41	Oven Back
42	Insulation-Oven Back
43	Wire Cover-Oven Back
44	Oven Side (Left)
44	Oven Side (Right)
45	Oven Bottom w/Baffle
46	Holder-Oven Light Bulb
47	Oven Lamp Bulb
48	Support-Oven Door Hinge (Left)
48	Support-Oven Door Hinge (Right)
49	Bracket Door Spring (2 Required)
50	Plug Button
51	WPL 323446
52	Disconnect Plate
53	Body Side (Left)
53	Body Side (Right)
54	Side Trim-Front Frame (Left)
54	Side Trim-Front Frame (Right)
55	Disconnect
56	Spacer-Side Trim (4 Req)
57	Right Cover Plate
58	Left Cover Plate
59	Clip
60	Main Bottom
61	Channel-Main Bottom (Rt. or Lt.)
62	Baffle-Main Bottom
63	WPL 316365
64	Oven Cabinet Top
65	Insulation-Oven Top & Sides (1 Piece)
66	Vent Box
67	Oven Top
68	Thermostat Bulb Clip (2 Required)
69	Frt. Frame w/Rivets, Sleeves & Washers
70	WPL 315944
71	WPL 315945
79	Lower Trim-Front Frame
80	Screw 6-32×5/16“
81	Service Cord
82	Clip
83	Bolt 1/4-20×3/8“
84	WPL 323451
85	WPL 69459
86	Element, 2.0 KW EGO 7“
87	Shoulder Rivet
88	Roller
89	Left (Up. or Lo. Oven)
89	Right (Up. or Lo. Oven)
90	Hinge Pivot Sleeve
91	Rivet
92	Washer
93	Hinge Latch (Right)
93	Hinge Latch (Left)
94	Washer
95	Left (Up. or Lo. Oven)
95	Right (Up. or Lo. Oven)
96	Hinge Pivot Sleeve
97	Spring Link
98	WPL 279539
99	WPL 291392
100	WPL 292051
114	Oven Rac
115	WPL 232899
115	WPL 232900
126	WPL 111480
126	WPL 111481
128	WPL 105825
129	WPL 324048
129	WPL 324047
130	WPL 103314
131	WPL 97697
131	WPL 97696
132	WPL 230981
132	WPL 230980
