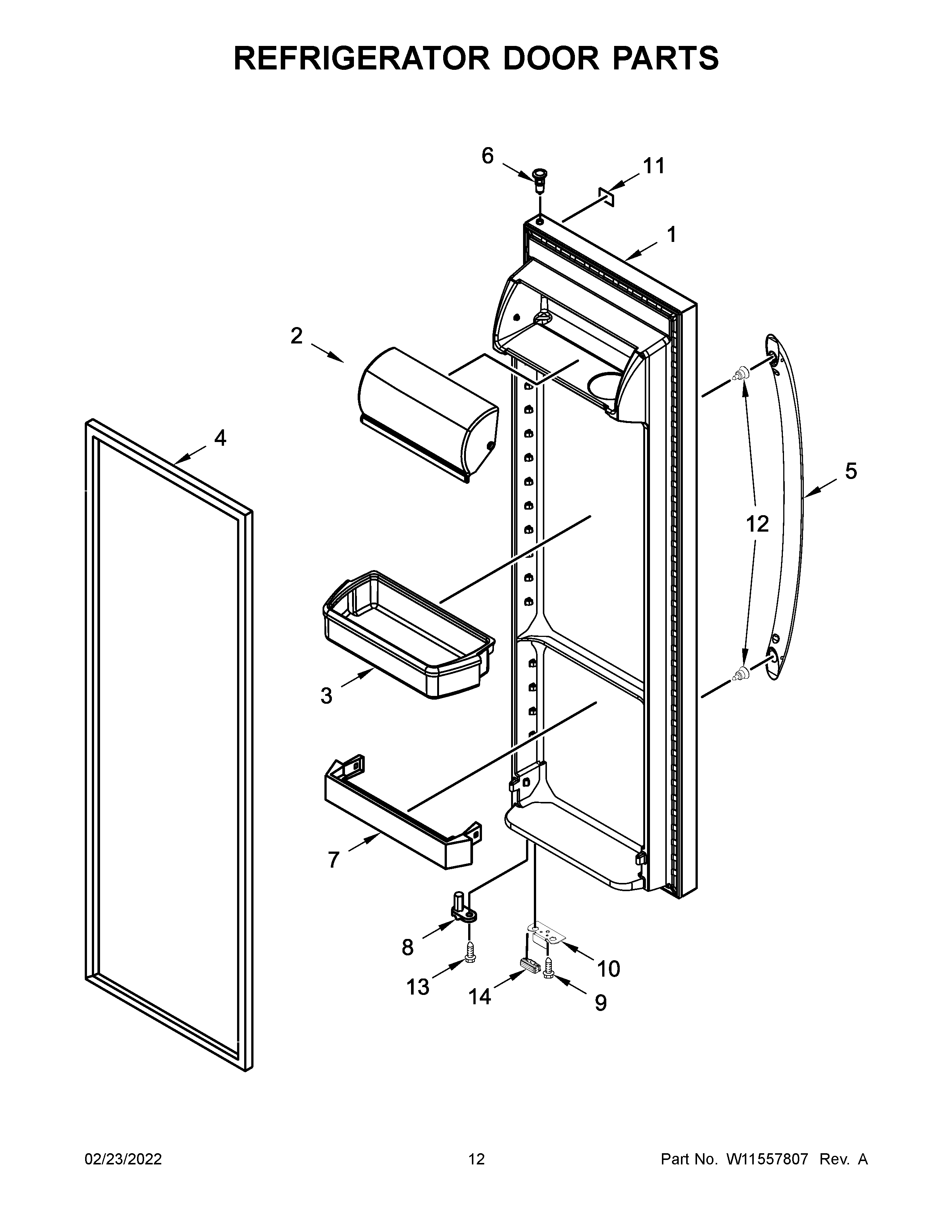

10650042717 07 – REFRIGERATOR DOOR PARTS

10650042717 07 – REFRIGERATOR DOOR PARTS

Written by

in

10650042717 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10912118 Whirlpool Refrigerator Door FIP
1ALW10912126 Whirlpool Refrigerator Door Assembly (Black)
1BLW10912075 Whirlpool Refrigerator Door Frame
2WP2256101 Whirlpool Dairy Door
3W11174793 Whirlpool Refrigerator Upper Door Shelf Bin
4A2159082 Whirlpool Freezer Door Gasket Black
42159074 Whirlpool Door Gasket Seal
4BW10136735 Whirlpool Refrigerator Door Gasket
5W11174794 Whirlpool Refrigerator Handle
5BW10899551 Whirlpool Door Handle
5AHANDLE (BLACK)
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11397972 Whirlpool Refrigerator Door Cam
9SCREW
10W11557261 Whirlpool Refrigerator Bracket Assembly
11BADGE
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WPW10296804 Whirlpool Refrigerator Screw
14BUMPER, DOOR (WHITE)
14BW11573367 Whirlpool Refrigerator Door Bumper
14AW10407187 Whirlpool Refrigerator Door Bumper
