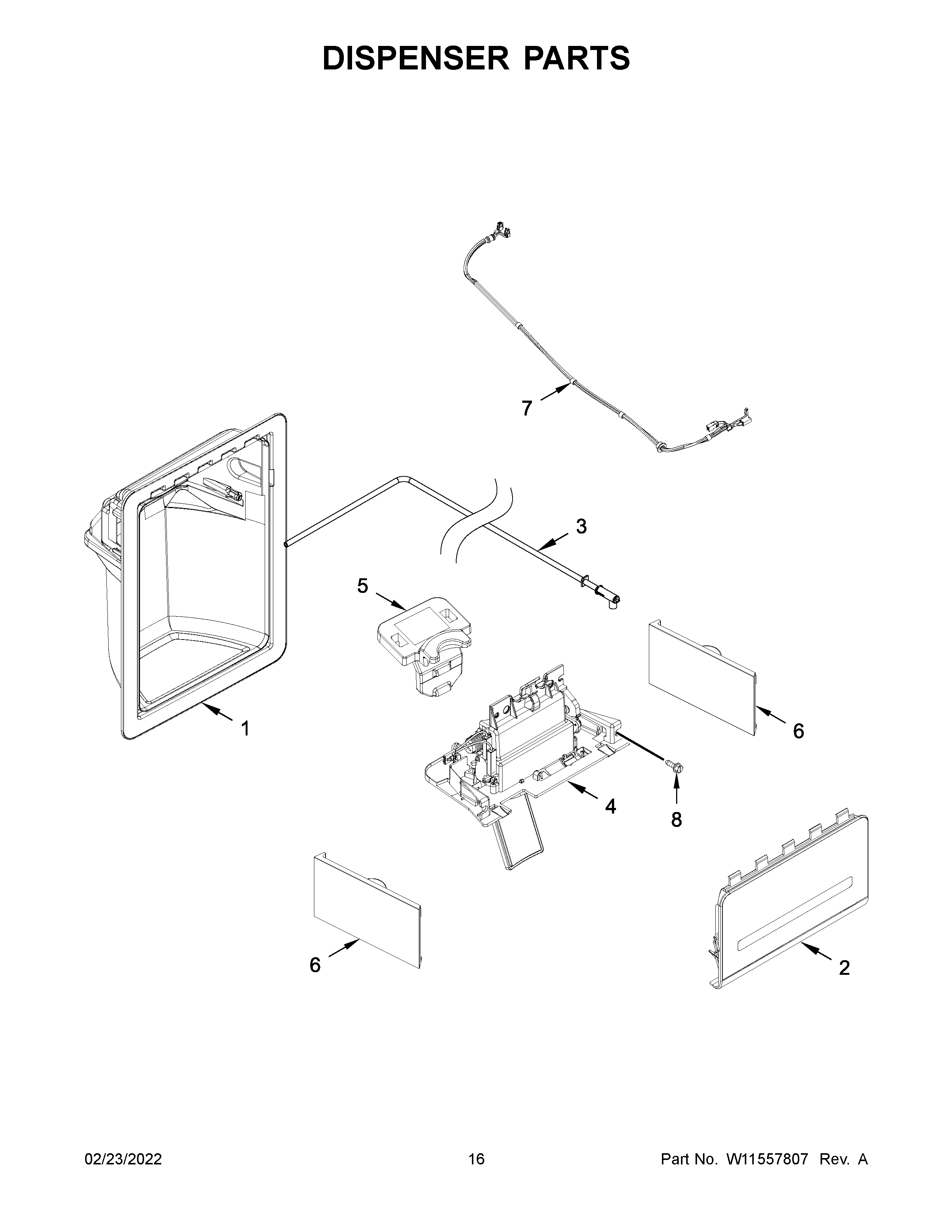

10650042717 09 – DISPENSER PARTS

10650042717 09 – DISPENSER PARTS

Written by

in

10650042717 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2BW11174884-includeCORE Whirlpool W11174884 Refrigerator Electronic Control Board + Core
2AW11174879-includeCORE Whirlpool W11174879 Refrigerator Electronic Control Board + Core
2W11174877 Whirlpool Refrigerator Electronic Control Board
3W11163765 Whirlpool Refrigerator Fitting
4W11678839 Whirlpool Ice Door
5W11397167 Whirlpool Refrigerator Retainer
6DCOVER, DISPENSER FRONT (COSMETALLIC (LEFT HAND))
6AW11311798 Whirlpool Cover Assembly
6W11311797 Whirlpool Refrigerator Cover
6CW11311800 Whirlpool Refrigerator Cover
6BW11311799 Whirlpool Refrigerator Cover
6EW11311912 Whirlpool Cover
7W10898319 Whirlpool Refrigerator Wire Harness
8WP8281163 Whirlpool Refrigerator Screw
