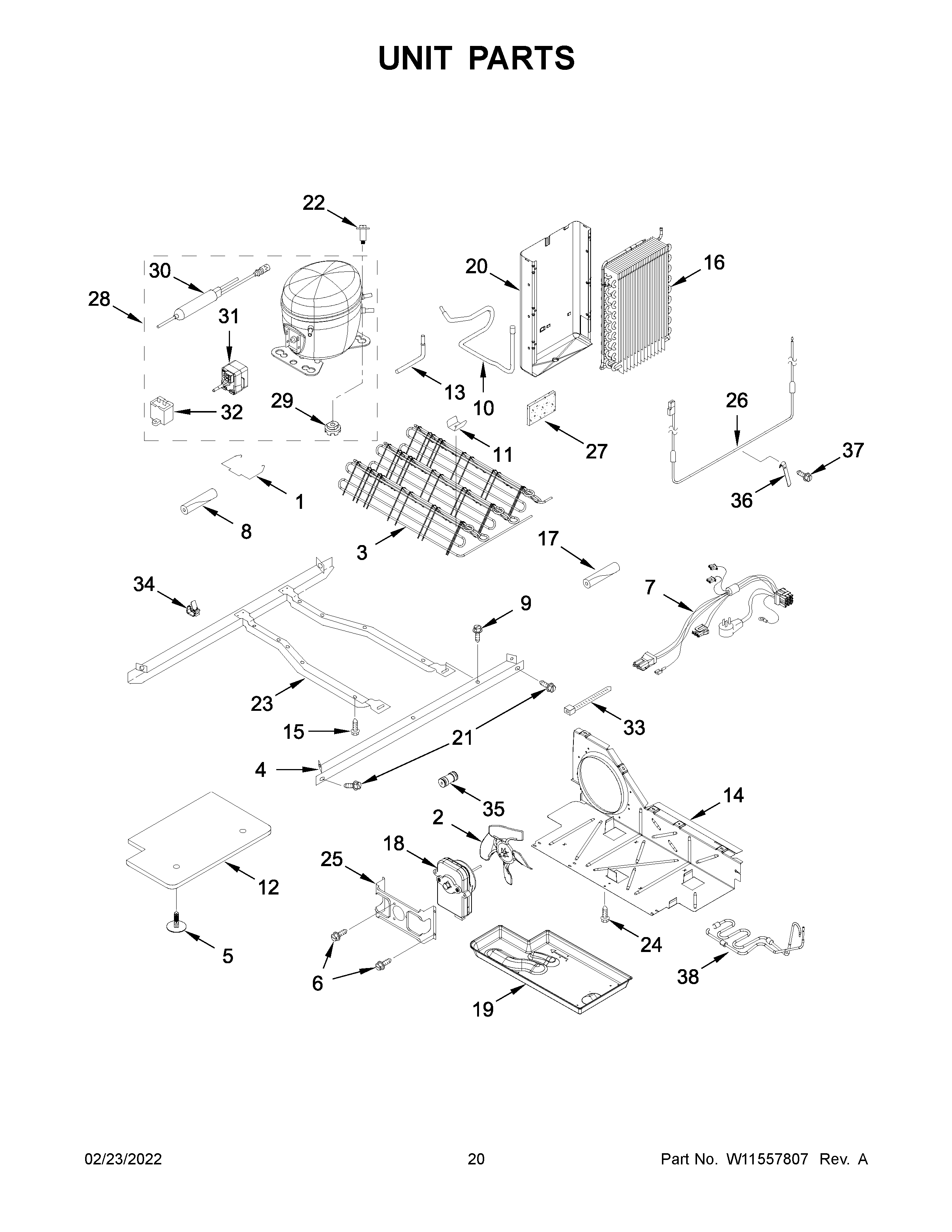

10650042717 11 – UNIT PARTS

10650042717 11 – UNIT PARTS

Written by

in

10650042717 11 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11577799 Whirlpool Refrigerator Clip
2	W11458267 Whirlpool Refrigerator Fan Blade
3B	W11504445 Whirlpool Refrigerator Coupler
3A	W11506623 Whirlpool Refrigerator Coupler
3	W11632924 Whirlpool Condenser
4	W10900442 Whirlpool Refrigerator Unit Rail
5	489396 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	W11661849 Whirlpool Refrigerator Wire Harness
8	2264838 Whirlpool Refrigerator Sleeve
9	WP489427 Whirlpool Refrigerator Screw
10	W11386791 Whirlpool Refrigerator Tube
11	W10683556 Whirlpool Refrigerator Clip
12	W10897560 Whirlpool Refrigerator Unit Cover
13	W10858105 Whirlpool Refrigerator Tube
14	W10896764 Whirlpool Refrigerator Air Baffle
15	W11544659 Whirlpool Refrigerator Screw
16A	W11504449 Whirlpool Refrigerator Coupler
16	W11546692 Whirlpool Refrigerator Evaporator
17	SLEEVE
18	W11578915 Whirlpool Condenser Motor
19	W11164129 Whirlpool Refrigerator Evaporator Tray
20	W11400740 Whirlpool Shield
21	489340 Whirlpool Refrigerator Screw
22	SCREW
23	W10900446 Whirlpool Frame Assembly
24	WP489464 Whirlpool Refrigerator Screw
25	WP2181929 Whirlpool Refrigerator Bracket
26	W11546610 Whirlpool Refrigerator Heater
27	W11553819 Whirlpool Refrigerator Insulation
28A	W11504415 Whirlpool Refrigerator Coupler
28	COMPRESSOR
28C	COUPLER
28B	W11504431 Whirlpool Microwave Coupler
29	W11678963 Whirlpool Grommet
30B	W11504447 Whirlpool Refrigerator Coupler
30	W11109499 Whirlpool Refrigerator Tube
30A	W11504433 Whirlpool Refrigerator Coupler
31	W11547180 Whirlpool Refrigerator Start Device
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WPW10339879 Whirlpool Wire Tie
34	W10812039 Whirlpool Clip
35	WP2300868 Whirlpool Refrigerator Fitting
36	HEAT PROBE
37	WP489478 Whirlpool Refrigerator Screw
38	W11678305 Whirlpool Tube
