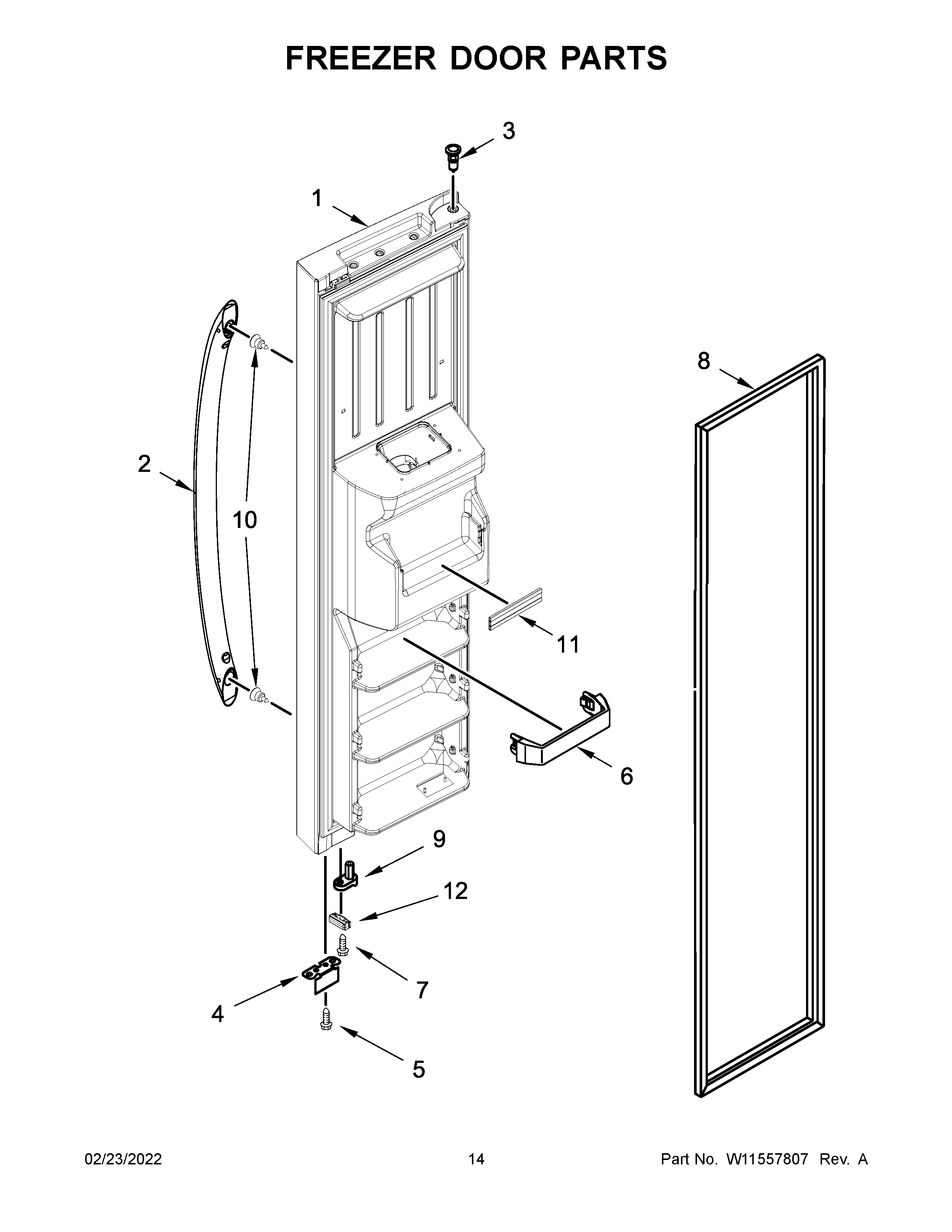

10650043717 08 – FREEZER DOOR PARTS

10650043717 08 – FREEZER DOOR PARTS

Written by

in

10650043717 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BDOOR, FREEZER (INCLUDES DOOR GASKET AND DISPENSER PARTS) (STAINLESS)
1ADOOR, FREEZER (INCLUDES DOOR GASKET AND DISPENSER PARTS) (BLACK)
1DOOR, FREEZER (INCLUDES DOOR GASKET AND DISPENSER PARTS) (WHITE)
2AHANDLE (BLACK)
2W11174794 Whirlpool Refrigerator Handle
2BW10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W11557261 Whirlpool Refrigerator Bracket Assembly
5SCREW
6WP2309718 Whirlpool Refrigerator Door Trim
7WPW10296804 Whirlpool Refrigerator Screw
82159075 Whirlpool Door Gasket Seal
8A2159083 Whirlpool Gasket Door
8BWPW10136734 Whirlpool Refrigerator Door Gasket
9W11661926 Whirlpool Refrigerator Door Cam
10WPW10661886 Whirlpool Refrigerator Door Handle Screw
11WPW10307490 Whirlpool Door Trim Assembly
12BW11573367 Whirlpool Refrigerator Door Bumper
12BUMPER, DOOR (WHITE)
12AW10407187 Whirlpool Refrigerator Door Bumper
