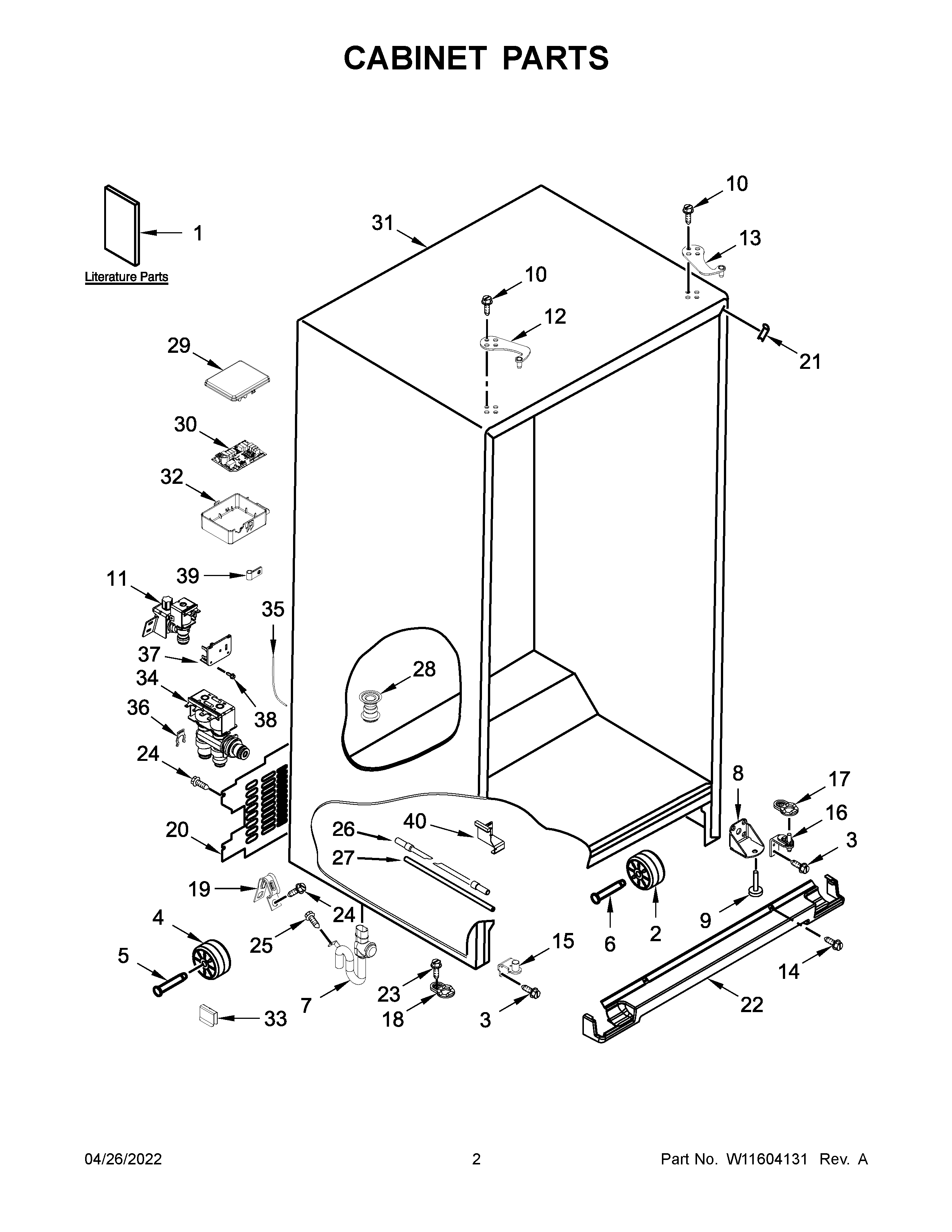

10651783416 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1ATECH SHEET
1USER GUIDE
2WPW10475495 Whirlpool Roller Assembly
3WPW10297485 Whirlpool Refrigerator Screw
4WP67005149 Whirlpool Roller
567006434 Whirlpool Axle Pin
6W11208384 Whirlpool Refrigerator Rivet
7W11293072 Whirlpool Refrigerator Extension
8W11266052 Whirlpool Refrigerator Bracket
9WPW10141622 Whirlpool Leveler
10SCREW, HINGE (WHITE)
11W11512399 Whirlpool Refrigerator Inlet Valve
12W11590581 Whirlpool Refrigerator Door Hinge
13HINGE-DOOR
14WPW10308489 Whirlpool Refrigerator Screw
15W11293374 Whirlpool Refrigerator Door Hinge
16W11292872 Whirlpool Refrigerator Door Hinge
17W11311687 Whirlpool Closing Cam
18W10876191 Whirlpool Refrigerator Door Cam
19W11234470 Whirlpool Refrigerator Clamp
20W11453073 Whirlpool Unit Cover
21WP12587703AP Whirlpool Refrigerator Filler
22WPW10713153 Whirlpool Refrigerator Grille
23WP489483 Whirlpool Screw
24SCREW
25WP489464 Whirlpool Refrigerator Screw
26WPW10279882 Whirlpool Water Line
27WPW10279884 Whirlpool Water Tube
28W10370680 Whirlpool Refrigerator Fitting
29LID, HV BOX
30W11670354-includeCORE Whirlpool W11670354 Microwave Electronic Control Board with Core
31CABINET (NOT A SERVICEABLE PART)
32WPW10247993 Whirlpool Refrigerator Control Box
33W11545866 Whirlpool Refrigerator Clip
34VALVE-INLT REFR
35WPW10238092 Whirlpool Refrigerator Water Tube
36AW11678575 Whirlpool Ring
36W11676611 Whirlpool Ring
37W10847867 Whirlpool Refrigerator Bracket
38WPW10141625 Whirlpool Refrigerator Screw Assembly
39WP488366 Whirlpool Refrigerator Clamp
40W10499011 Whirlpool Refrigerator Bracket
