10651783416 03 – REFRIGERATOR LINER PARTS

10651783416 03 – REFRIGERATOR LINER PARTS

Written by

in

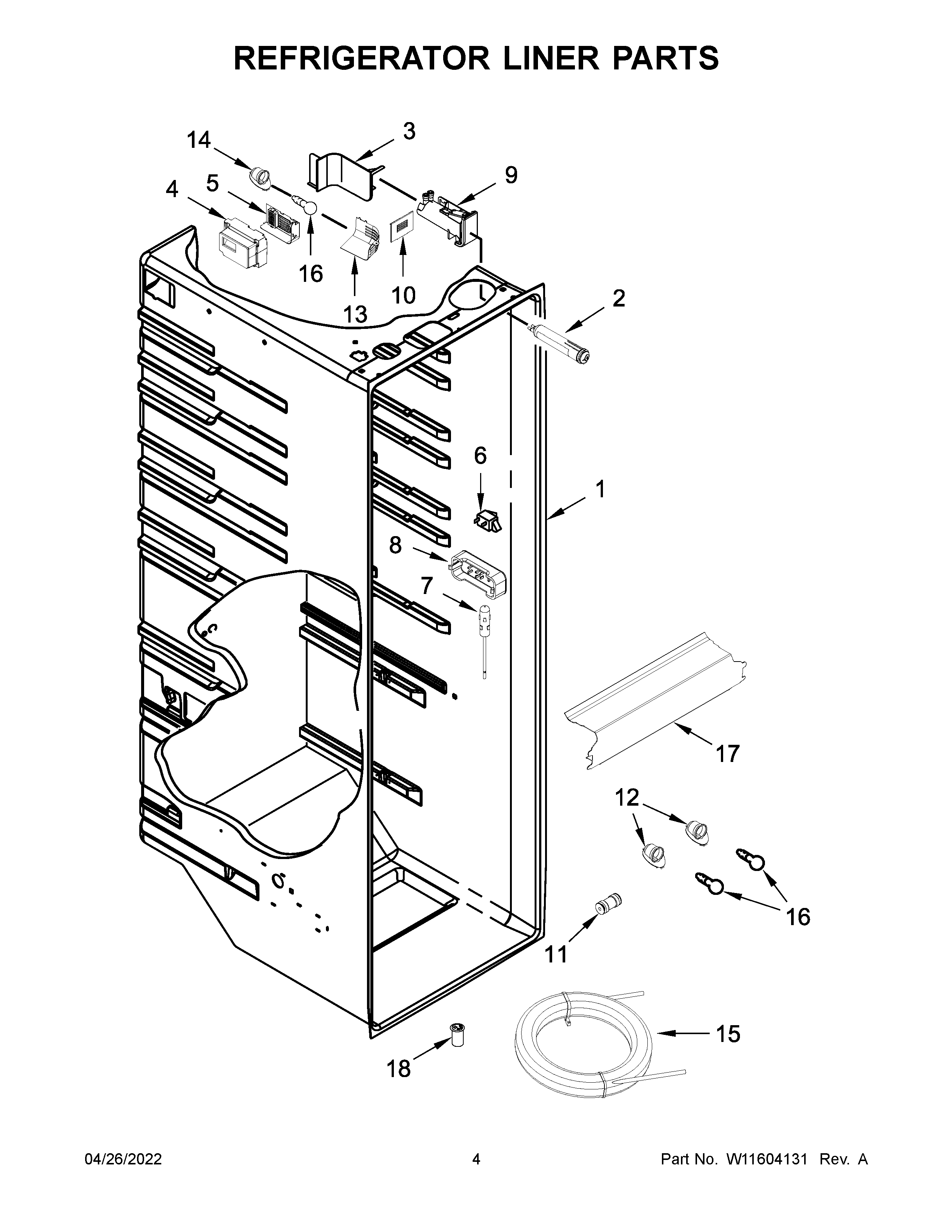

10651783416 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2FILTER, WATER
3W11501035 Whirlpool Refrigerator Filter Cover
4DIFFUSER
5W10488360 Whirlpool Refrigerator Support
6W11123941 Whirlpool Refrigerator Switch
7THERMISTOR
8W10425254 Whirlpool Refrigerator Cover
9WPW10490293 Whirlpool Refrigerator Housing
10COVER, AIR FILTER
11WPW10271543 Whirlpool Refrigerator Connector
12W11447232 Whirlpool Refrigerator Socket
13W10893232 Whirlpool Refrigerator Cover
144387478 Whirlpool Refrigerator Light Socket
15W11613294 Whirlpool Refrigerator Reservoir
16W11216993 Whirlpool Refrigerator Light Bulb
17WPW10269099 Whirlpool Refrigerator Light Lens
18WP2210509 Whirlpool Refrigerator Tub Valve
