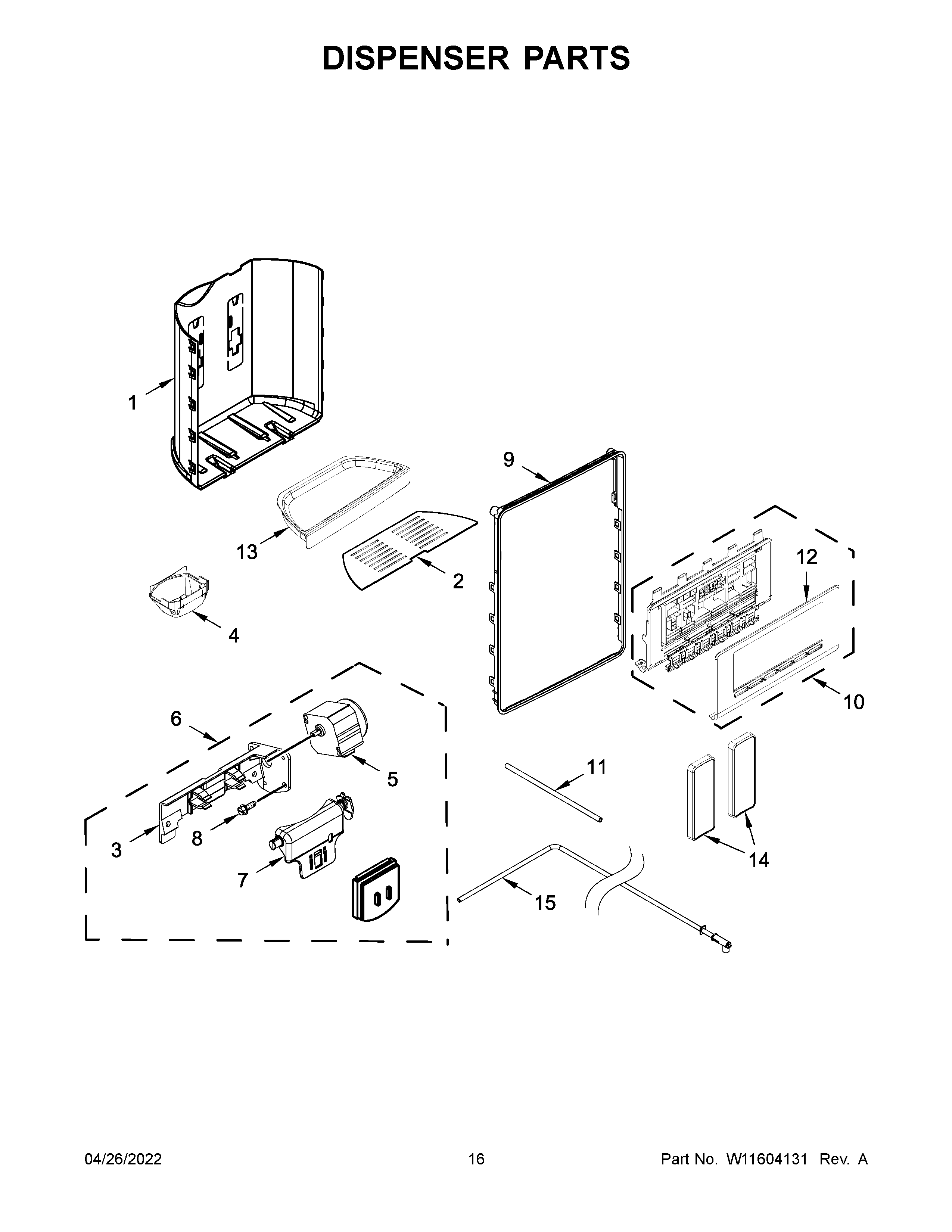

10651783416 09 – DISPENSER PARTS

10651783416 09 – DISPENSER PARTS

Written by

in

10651783416 09 – DISPENSER PARTS

Products

PositionProduct
1W10490264 Whirlpool Separator
2WPW10469406 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205979 Whirlpool Refrigerator Ice Door Motor
6W10889430 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9RING, TRIM (CHROMIUM FROST)
10W11616410-includeCORE Whirlpool W11616410 Refrigerator Electronic Control Board
11W11533098 Whirlpool Refrigerator Water Tube
12W10854961 Whirlpool Refrigerator Fascia
13TRAY, DRIP (GREY)
14W11684618 Whirlpool Pad
15W11620106 Whirlpool Water Tube
