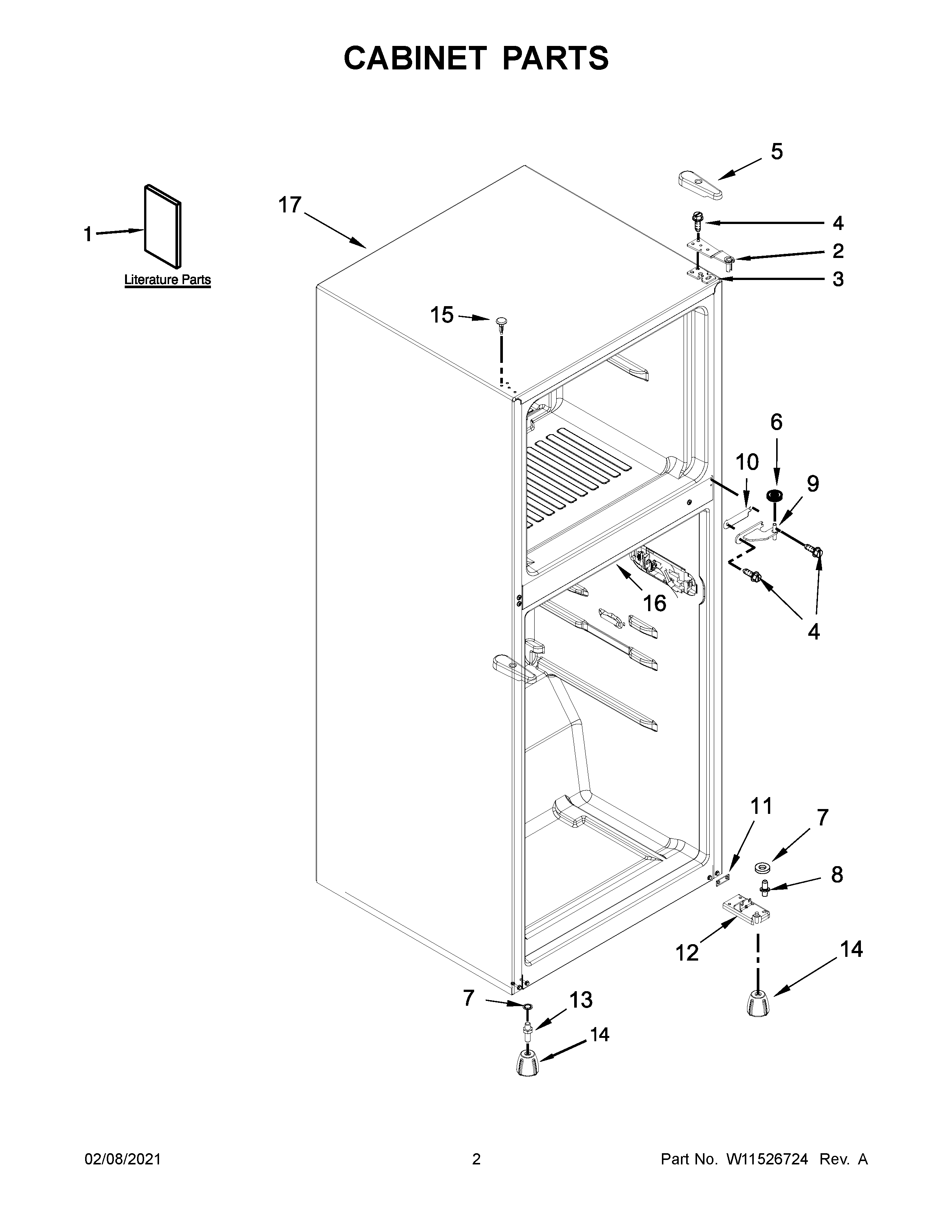

10667802410 02 – CABINET PARTS

10667802410 02 – CABINET PARTS

Written by

in

10667802410 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
2W11191773 Whirlpool Refrigerator Door Hinge
3W10399311 Whirlpool Refrigerator Hinge Shim
4WP489497 Whirlpool Screw
5HINGE COVER (WHITE)
5AHINGE COVER (BLACK)
5BCOVER
6WP487576 Whirlpool Washer
7WP489467 Whirlpool Hinge Shim
8W11678964 Whirlpool Hinge Pin
9W11173998 Whirlpool Refrigerator Door Hinge
10W11269182 Whirlpool Refrigerator Hinge Shim
11W11269192 Whirlpool Refrigerator Hinge Shim
12W11580021 Whirlpool Refrigerator Door Hinge
13SCREW, LEVELER
14W11545335 Whirlpool Refrigerator Leveling Leg
15WPW10520304 Whirlpool Refrigerator Button Plug
15BWPW10520305 Whirlpool Refrigerator Button Plug
15AWPW10520307 Whirlpool Refrigerator Replacement Plug Button
17CABINET (NOT A SERVICEABLE PART)
