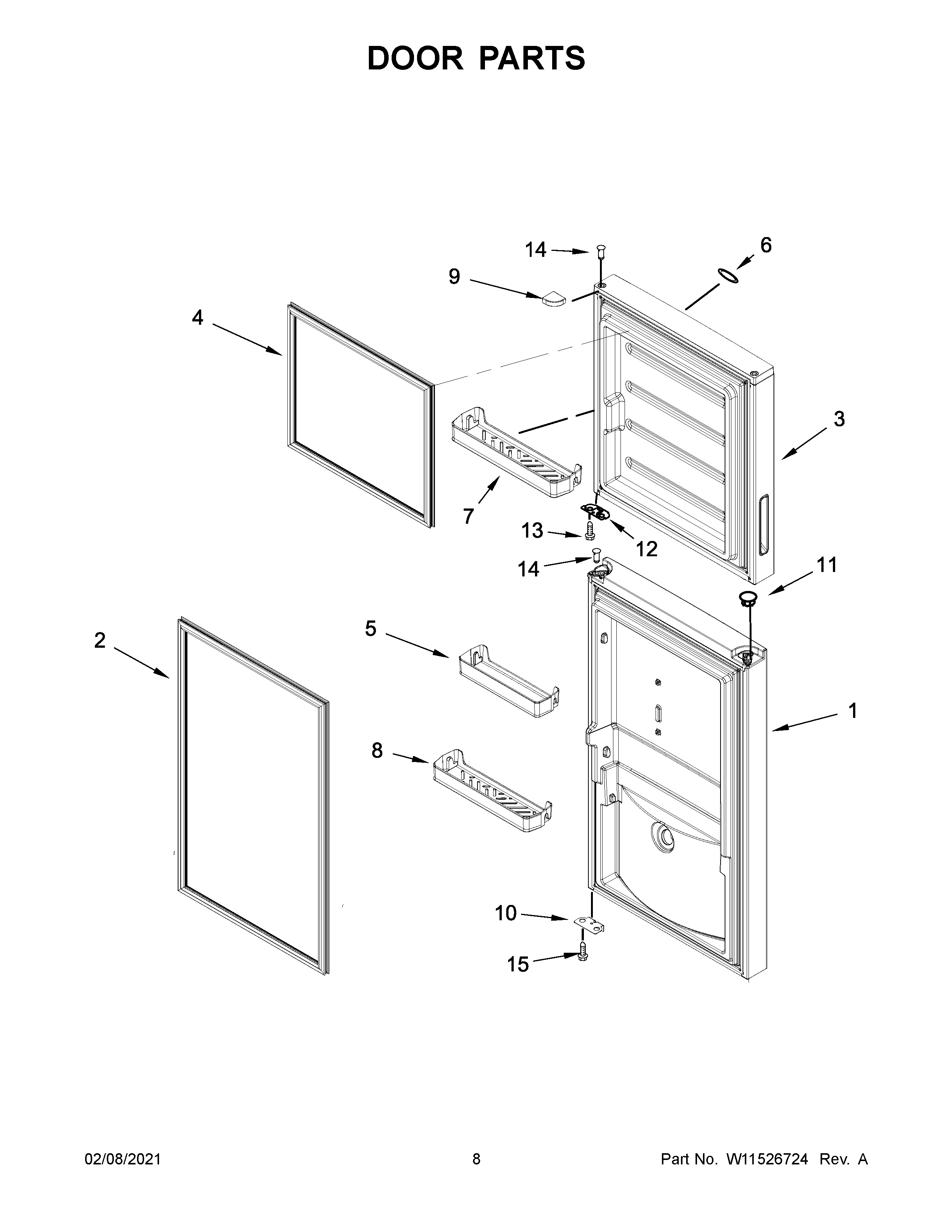

10667802410 05 – DOOR PARTS

Products

PositionProduct
1BDOOR, REFRIGERATOR (STAINLESS)
1ADOOR, REFRIGERATOR (BLACK)
1DOOR, REFRIGERATOR (WHITE)
2AW11235134 Whirlpool Refrigerator FIP Gasket
2BW11250318 Whirlpool Refrigerator FIP Gasket
2W11235133 Whirlpool Refrigerator FIP Gasket
3W11374236 Whirlpool Refrigerator Door Assembly
3AW11374242 Whirlpool Door FIP
3BDOOR, FREEZER (STAINLESS)
4W11736728 Whirlpool Gasket
4BW11250314 Whirlpool Refrigerator FIP Gasket
4AW11235130 Whirlpool Refrigerator FIP Gasket
5BIN, BOTTLE
6BADGE
7W11247924 Whirlpool Refrigerator Bin
8W11247889 Whirlpool Refrigerator Bin
9EW11246849 Whirlpool Endcap
9W11246845 Whirlpool Endcap Assembly
9AW11246847 Whirlpool Refrigerator End Cap
9BENDCAP LEFT HAND (GREY)
9CW11246852 Whirlpool Endcap
9DENDCAP RIGHT HAND (BLACK)
10W11745278 Whirlpool Bracket
11WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
11BW11255553 Whirlpool Hinge Plug
11AWP2212651 Whirlpool Refrigerator Button Plug
12WPW10397055 Whirlpool Refrigerator Hinge Bracket
13WP489442 Whirlpool Refrigerator Screw
14AW11189115 Whirlpool Refrigerator Thimble
14BTHIMBLE
14THIMBLE
15WP681249 Whirlpool Screw Assembly
