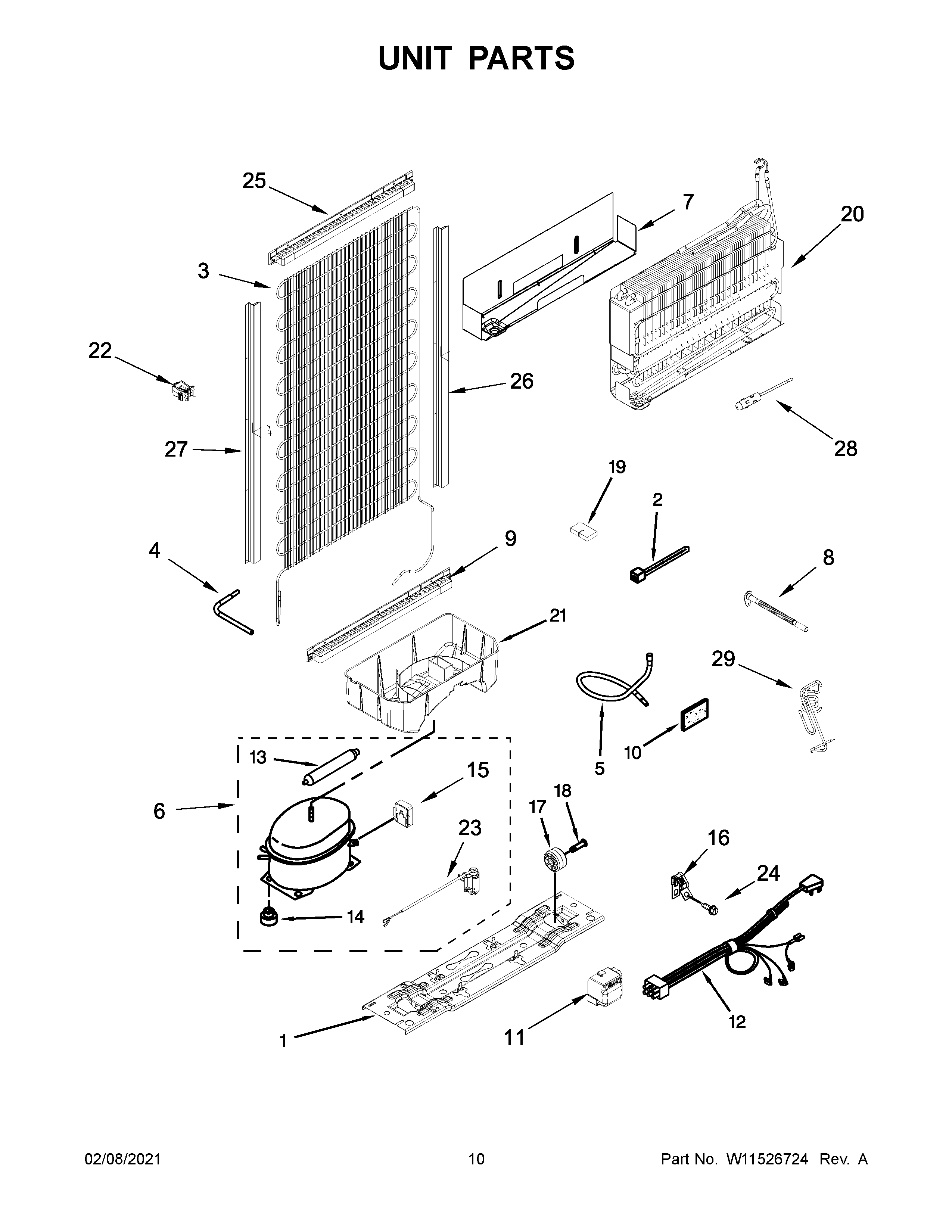

10667803410 06 – UNIT PARTS

Products

Position	Product
NI	W11225184 Whirlpool Refrigerator Tube
NI	W11504418 Whirlpool Refrigerator LOKRING 8MM to 7MM Reducer
NI	W11504449 Whirlpool Refrigerator Coupler
NI	W11504419 Whirlpool Microwave Coupler
NI	W11506623 Whirlpool Refrigerator Coupler
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11504448 Whirlpool Refrigerator Coupler
NI	W11504420 Whirlpool Microwave Coupler
1	W10378704 Whirlpool Refrigerator Support
2	WPW10339879 Whirlpool Wire Tie
3	W11368894 Whirlpool Refrigerator Condenser
4	W11661102 Whirlpool Tube
5	TUBE
6	W11370574 Whirlpool Refrigerator Compressor
7	W11179127 Whirlpool Refrigerator Shield
8	W11547140 Whirlpool Refrigerator Extension
9	CONDENSER, BOTTOM PROTECTION
10	W11553819 Whirlpool Refrigerator Insulation
11	W11342284 Whirlpool Terminal Cover
12	W11248029 Whirlpool Refrigerator Power Cord
13	W11490399 Whirlpool Microwave Tube
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W11643623 Whirlpool Device Start
16	W11234470 Whirlpool Refrigerator Clamp
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	W10261299 Whirlpool Evaporator Support
20	W11368877 Whirlpool Microwave Evaporator Assembly
21	W11559685 Whirlpool Refrigerator Tray
22	WP326020544 Whirlpool Refrigerator Support
23	W11652060 Whirlpool Capacitor
24	WP489442 Whirlpool Refrigerator Screw
25	CONDENSER, TOP PROTECTION
26	CONDENSER, SIDE PROTECTION (RIGHT)
27	CONDENSER SIDE PROTECTION (LEFT)
29	W11528684 Whirlpool Tube Assembly
