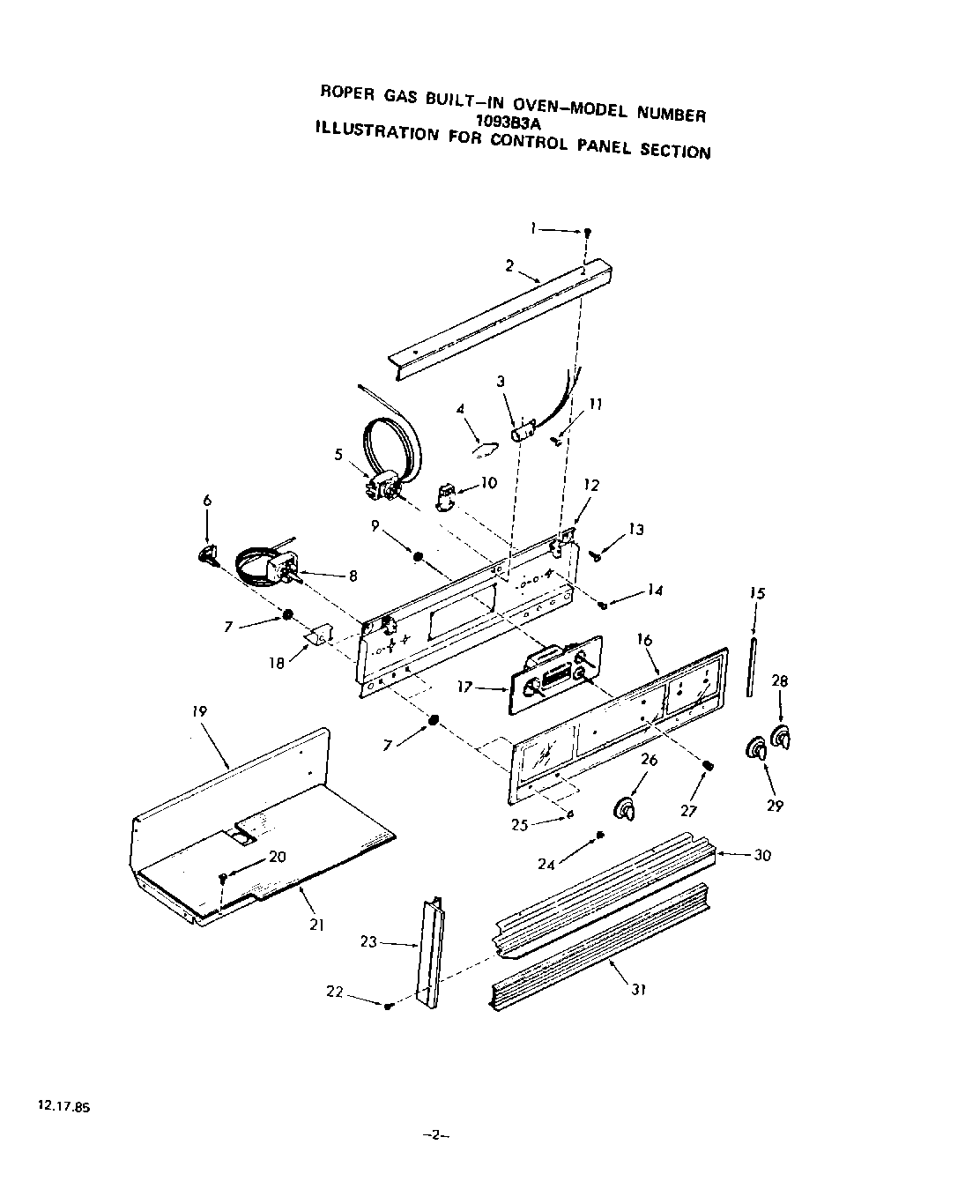

1093B3A 03 – CONTROL PANEL

Products

Position	Product
1	Screw 6-20×3/8“
2	Lamp Shade
3	Holder-Lamp Bulb
4	Lamp Bulb
5	Thermostat-Upper Oven
6	Push Switch-Oven Light
7	Lock Nut
8	Insert
9	Keps Nut 10-24
10	Selector Switch
11	WPL 97220
12	Mounting Panel-Controls
13	Screw 6-32×3/8“
14	WPL 78565
15	End Trim-Control Panel Glass (Rt or Lt)
16	Control Panel Glass
17	Clock w/1Hr Timer
18	Shield-Switch
19	Baffle-Control Panel
20	Screw 10-32×5/16“
21	Corrugated INsulation
22	Screw 6-32 x 1/2“
23	Side Trim-Control Panel (Right)
23	Side Trim-Control Panel (Left)
24	Knurled Nut
25	Washer
26	Knob-Lower Oven Thermostat
27	Knob-Clock (Start & Stop Time)
28	Knob-Selector Switch
29	Knob-Thermostat
30	Knob-Selector Switch
31	Trin Vent
