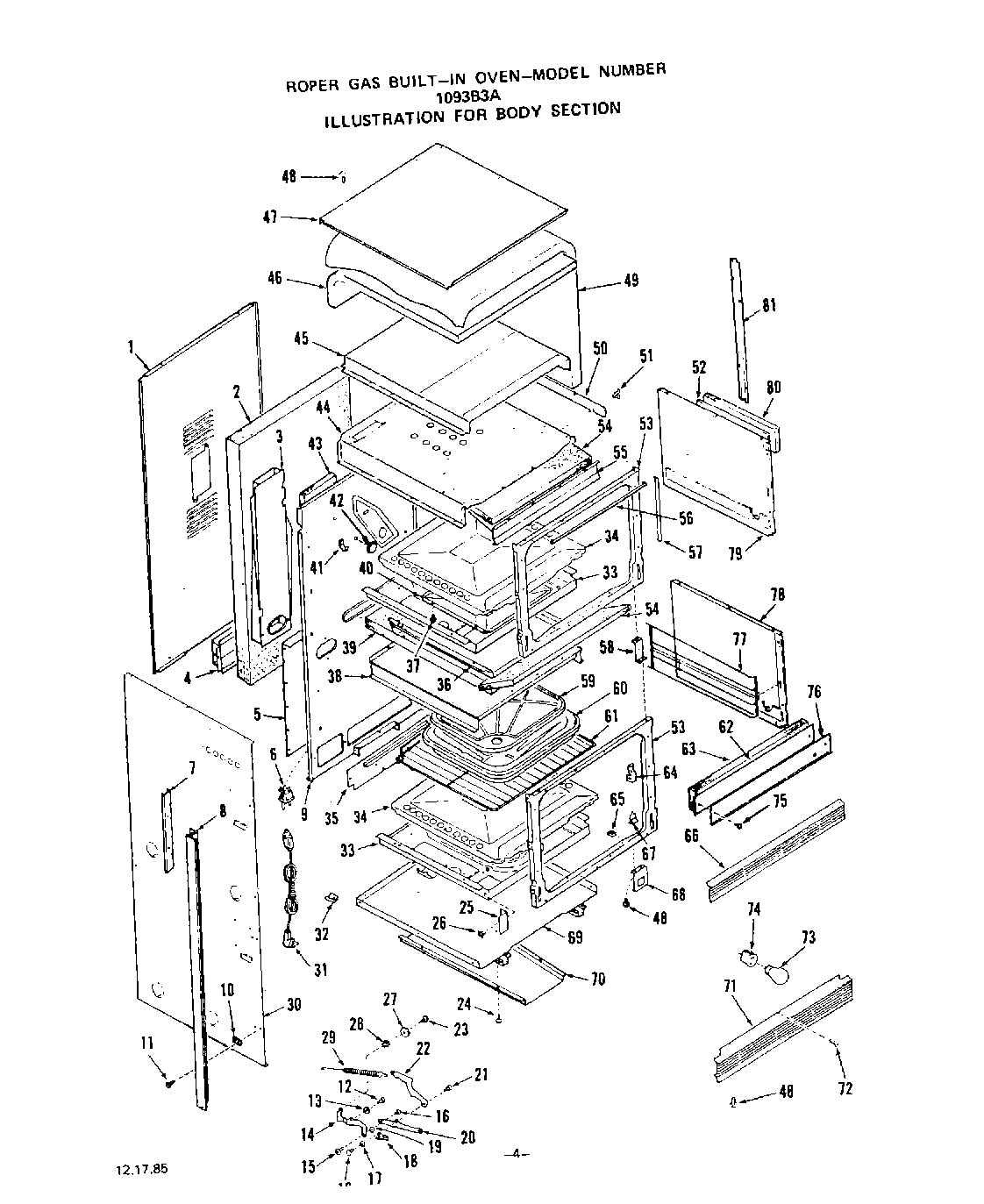

1093B3A 04 – BODY

Products

Position	Product
1	Wire Cover
2	Insulation-Oven Back
3	Vent Box
4	Air Chamber Cover
5	WP4391960 Whirlpool Dryer Heating Element
6	Disconnect
7	Channel Trim – Lt. or Rt.
8	Side Trim-Front Frame (Right)
8	Side Trim-Front Frame (Left)
9	Oven Back
10	Spacer-Side Trim (4 Req)
11	WPL 281160
12	Shoulder Rivet
13	Roller
14	Right (Up. or Lo. Oven)
14	Left (Up. or Lo. Oven)
15	Hinge Pivot Sleeve
16	Rivet
17	Washer
20	Left (Up. or Lo. Oven)
20	Right (Up. or Lo. Oven)
21	Hinge Pivot Sleeve
22	Spring Link
23	Bolt 1/4-20×3/8“
24	Screw 10Ax3/8“
25	Insulation Shield (2 Req)
27	WPL 323451
28	WPL 69459
29	Oven Door Spring (Up or Lo Oven)
30	Right
30	Left
31	Service Cord
32	WPL 97047
33	Burner Box
34	Oven Bottom w/Baffle
35	Cover Plate-Lower Oven
36	Insulation Retainer
37	Screw 10 – 32 x 7/16“
38	Oven Top-Lower Oven
39	Insulation-Oven Top & Sides (1 Piece)
40	Baffle-Oven Bottom
41	Thermostat Bulb Clip (2 Required)
42	Plug Button
43	Insulation
44	Oven Top-Upper Oven
45	Vent Box
46	WPL 313321
47	Oven Cabinet Top
48	WP112432 Whirlpool Nut Assembly
49	Insulation-Oven
50	WPL 331855
51	Clip
52	Insulation (Rt. or Lt.)
53	WPL 332482
54	WPL 97324
55	WPL 331848
56	WPL 315944
57	WPL 315994
58	WPL 279476
59	WPL 331851
60	WPL 331850
61	WPL 279539
62	WPL 303382
63	WPL 306481
64	WPL 327977
65	Speed Nut 10 – 32
66	WPL 313802
67	WPL 323446
68	WPL 327982
69	WPL 327965
70	279264 Whirlpool Bearing and Seal Kit
71	WPL 313805
72	Screw 6-32×5/16“
73	Oven Lamp Bulb
74	Holder-Oven Light Bulb
75	Screw 6-32×3/8“
76	WPL 303383
77	WPL 279538
78	WPL 331859
78	WPL 279537
79	WPL ARI7420A86
80	Insulation (Lt. or Rt.)
81	WPL 323619
