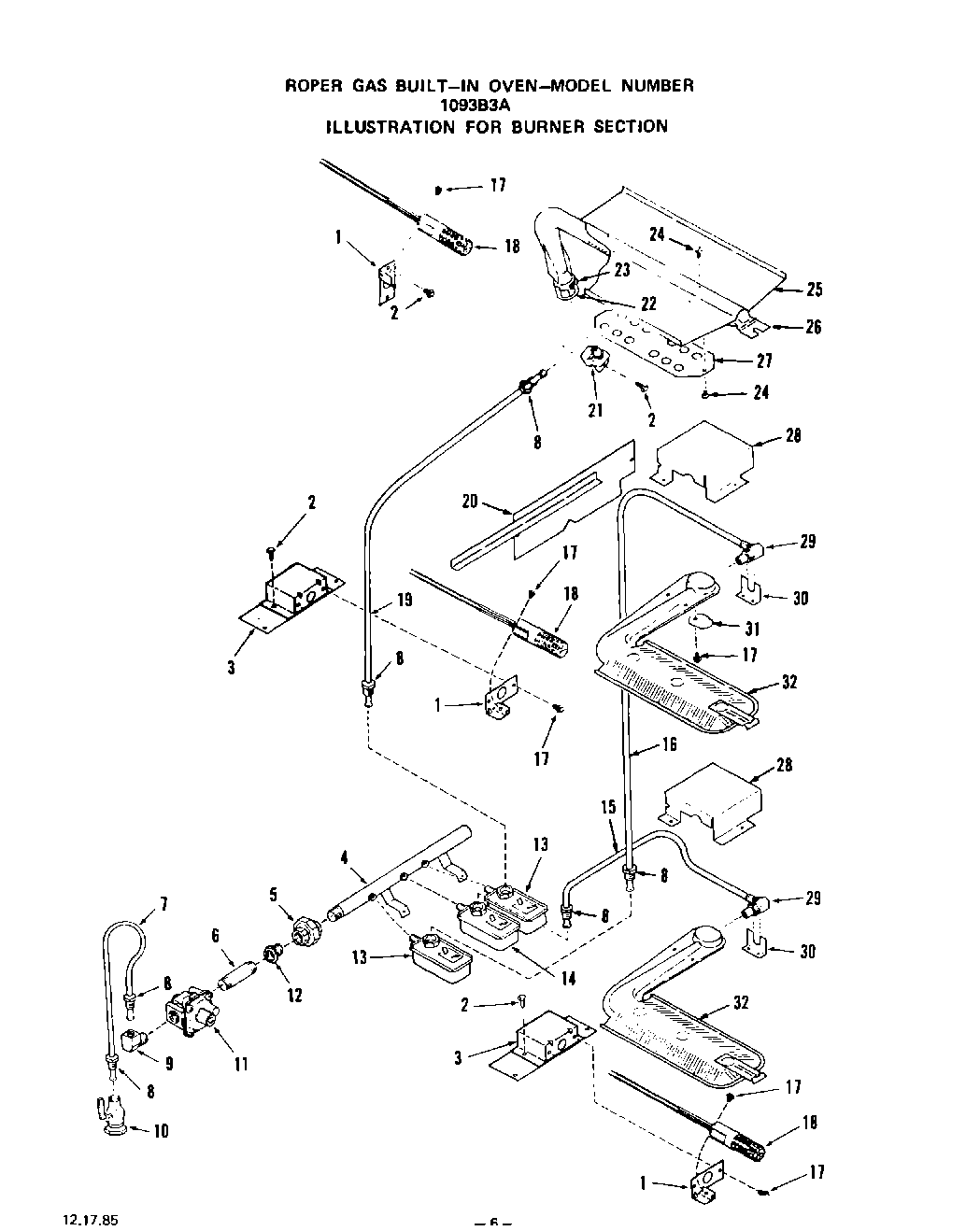

1093B3A 05 – BURNER, LITERATURE

Products

Position	Product
	Main
1	Bracket-Igniter
3	Support-Igniter Asm (Upr)
4	Manifold Pipe w/Bracket
5	Union 1/2``-Std
6	Nipple 3/8`` x 2``
7	Tubing3/8``(Inlet Valve To Pressure Regulator)
8	Inverted Nut 3/8``
9	Elbow 90o
10	Inlet Valve
11	Pressure Regulator
12	Bushing-Reducer
13	Control Valve
14	Control Valve
15	Tubing 3/8`` w/Orifice Fitting (Cont. to Lo. Ov.Orifice)
16	Tubing 3/8`` w/Orifice Fitting (Cont. Valve to Up. Orifice)
17	WPL 316365
18	Igniter - Bake or Broil
19	Tubing 3/8`` (Shut Off to Union)
20	Cover Plate w/Angle
21	Broiler Orifice Fitting
22	Aid Shutter
23	Adjustment Screw-Air Shutter
24	Screw 8 - 32x3/8``
25	Upper Baffle - Broil
26	Broiler Burner (Inc Keys 25 & 27)
27	Lower Baffle-Broiler Burner
28	Cover Box-Venturi
29	Orifice Fitting
30	Bracket-Orifice Fitting
31	Air Shutter
32	Oven Burner Complete
32	Wire Harness
32	Repair Parts Manual
32	Operating Guide
32	Filler Kit (Optional)
32	Outside Venting Kit (Optional)
32	Manifold
32	Gas Use & Care Guide
