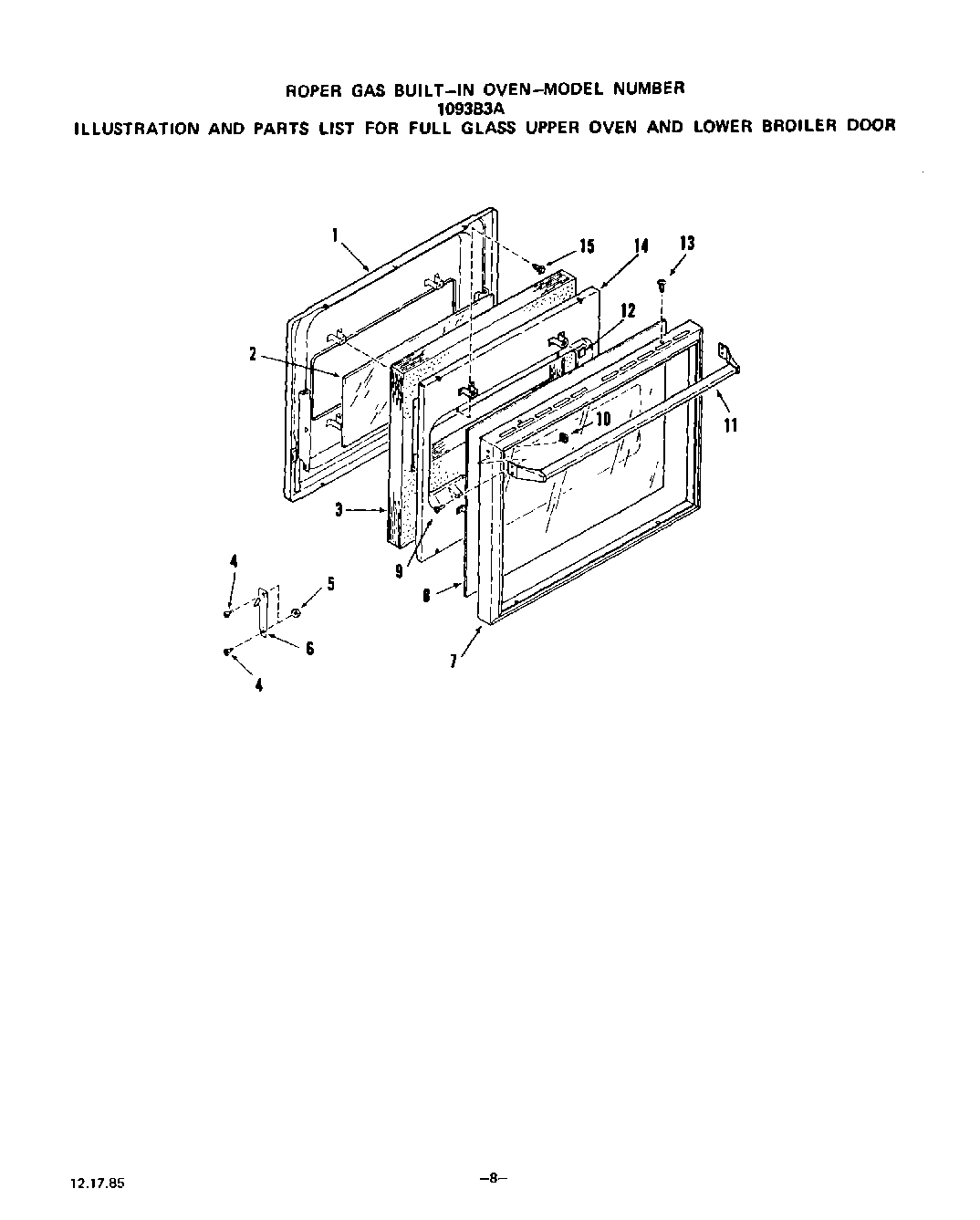

1093B3A 06 – FULL GLASS UPPER OVEN AND LOWER BROILER

Products

Position	Product
1	Door Lining – Upper or Lower Door
2	Door Glass-Inner
3	Insulation – Upper or Lower Door
4	Shoulder Rivet
5	Hex Nut 10-32
6	Hinge Arm Guide (Right)
6	Hinge Arm Guide (Left)
7	Door Frame (Upper Oven)
8	Door Glass-Outer (Upper Oven)
9	Screw 8-32 x 1/2“
10	Keps Nut 8-32
11	Door Handle
12	Spacer (4 Req.)
13	Screw 6-20×3/8“
14	Insulation Retainer – Upper or Lower Door
15	Screw 10 – 32×3/8“
