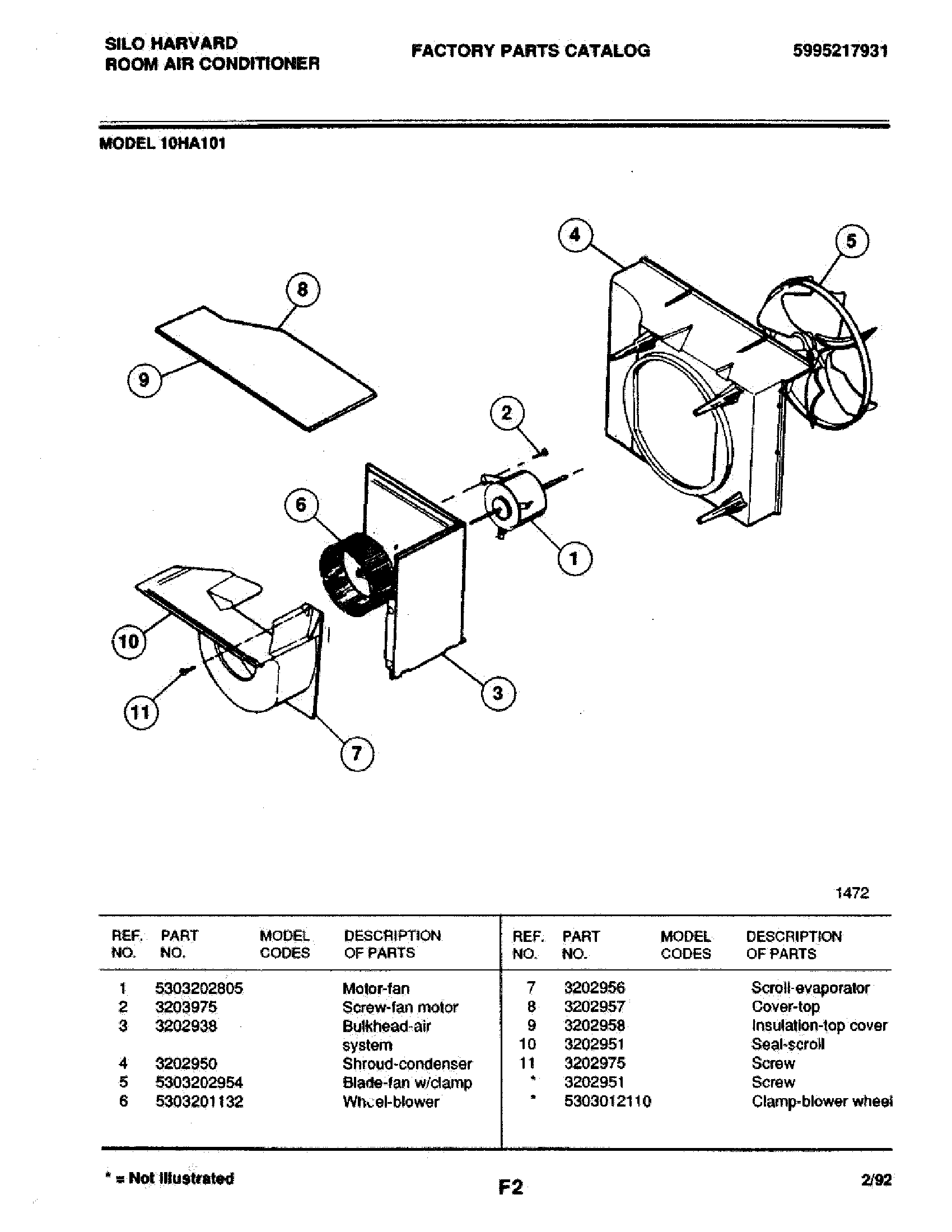

10HA101 06 – MOTOR/FAN

Written by

Products

Position	Product
	WCI 5303012110
	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
1	WCI 5303202805
2	SCREW-FAN MOTOR
3	BULKHEAD-AIR SYSTEM
4	WCI 3202950
5	BLADE-FAN
6	WCI 5303201132
7	WCI 3202956
8	WCI 3202957
9	PAD – COVER
11	131202300 Frigidaire Screw
