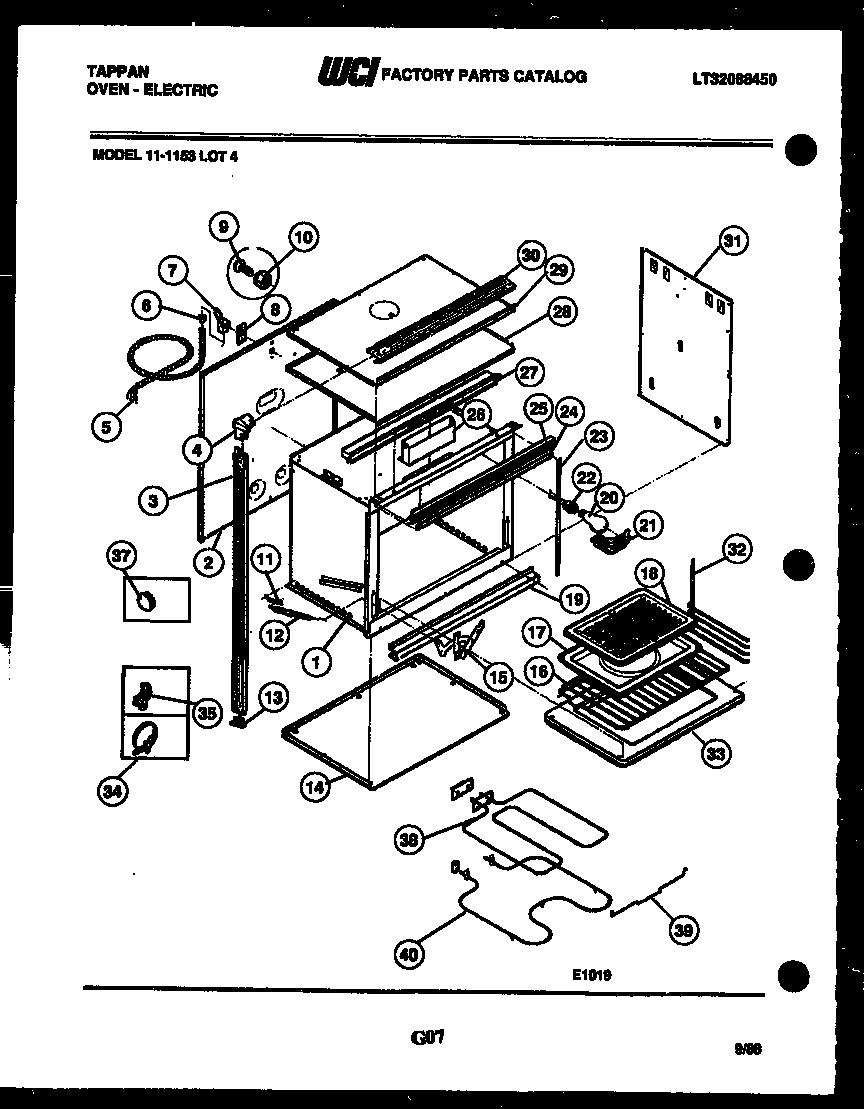

11-1153-23-04 02 – BODY PARTS

Products

Position	Product
*16930	KIT BAKE & BROIL EL. WIRE REPAIR
*16930	INSULATION WRAP
*16930	INSULATION TOP/BOT
*16930	INSULATION (2 1/2 X 19 X 51“) WOOL (TOP & BACK)
*16930	WCI 328T093P01
*16930	WCI 379T043F03
*16930	INSULATION VENT
*16930	WCI 382T023F11CE
*16930	WCI 382T023F08CE
2	WCI 805T013F16-18
3	WCI 740T328P17
3	WCI 740T328P18
4	END CAP TOP (2)
4A	SCREW (6-32 X 1/4“ PH. OV. HD.) CAP MTG. (4) (NON-ILLUSTRATED)
6	BUSHING-INSULATOR
7	CONNECTR CONDUIT
8	WCI 554T356F01
9	SCREW-GROUND PL. MTG.
10	5303013272 Frigidaire Oven Nut
11	WCI 072T476F01
12A	SLEEVE DR SPRING (2)
12	SPRING (2)
13	END CAP BTM RH
13	END CAP BTM LH
14	WCI 3018719
15	WCI 117T014S09
15	WCI 117T014S10
15B	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
15A	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
16	WCI 591T038P09
17	PAN, BROILER
18	INSERT-BROILR PAN LOT 2,3
19	TRIM LOWER
20	316538904 Frigidaire Oven Lamp Light
21	SHIELD BULB
22	SOCKET
23	SEAL DOOR SIDE (2)
24	WCI 647T081P04
25	TRIM TOP
26	BOX-FLUE VERTICAL
27A	SCREW-SHOULDER 8A X 3/8“ (4)
27	BOX-FLUE HORIZONTAL
28	WCI 812T007F013-18
30A	WCI 636T090P48
30	WCI 740T327P04
31	WCI 809T010F07-18
32	GLIDE-OVEN RACK
33	WCI 058T015F07-86
34	5304464772 Frigidaire Refrigerator Wire Tie
35	5303284616 Frigidaire Range Bulb Clip Thermostat
37	BUTTON PLUG
38	220T017P02 Frigidaire Broil Element
39	SUPT BROIL. ELEMNT
40	ELEMENT BAKE
