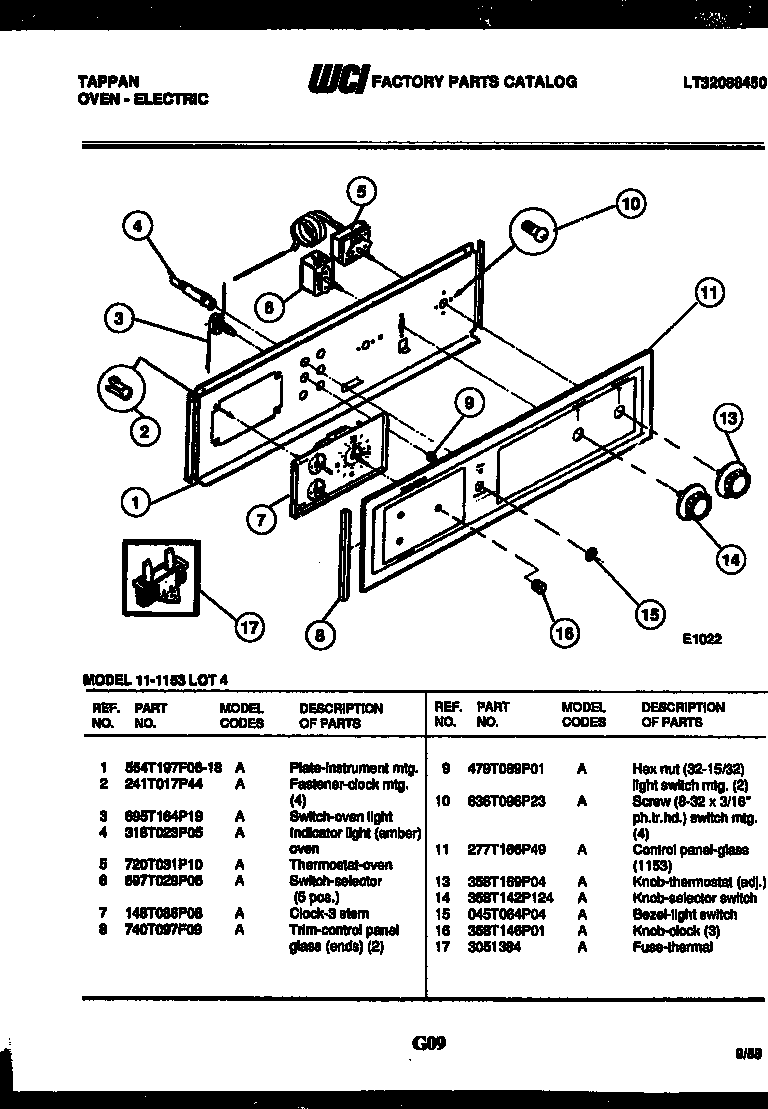

11-1153-57-04 03 – BACKGUARD

11-1153-57-04 03 – BACKGUARD

Written by

in

11-1153-57-04 03 – BACKGUARD

Products

PositionProduct
1WCI 554T197F06-18
2FSTNR-CLOCK
3WCI 695T164P19
4LIGHT INDICATOR
5THERMOSTAT
6SWITCH-SELEC (5 POS)
7WCI 148T086P08
8TRIM CONT PNL MTG (2)
9HEX NUT SWITCH MTG
105303288565 Frigidaire Screw
11WCI 277T166P49
13KNOB-THERMOSTAT (ADJ.) (UPPER)
14WCI 358T142P124
15WCI 045T064P04
16KNOB-CLOCK
17FUSE THERMO CUT-OUT
