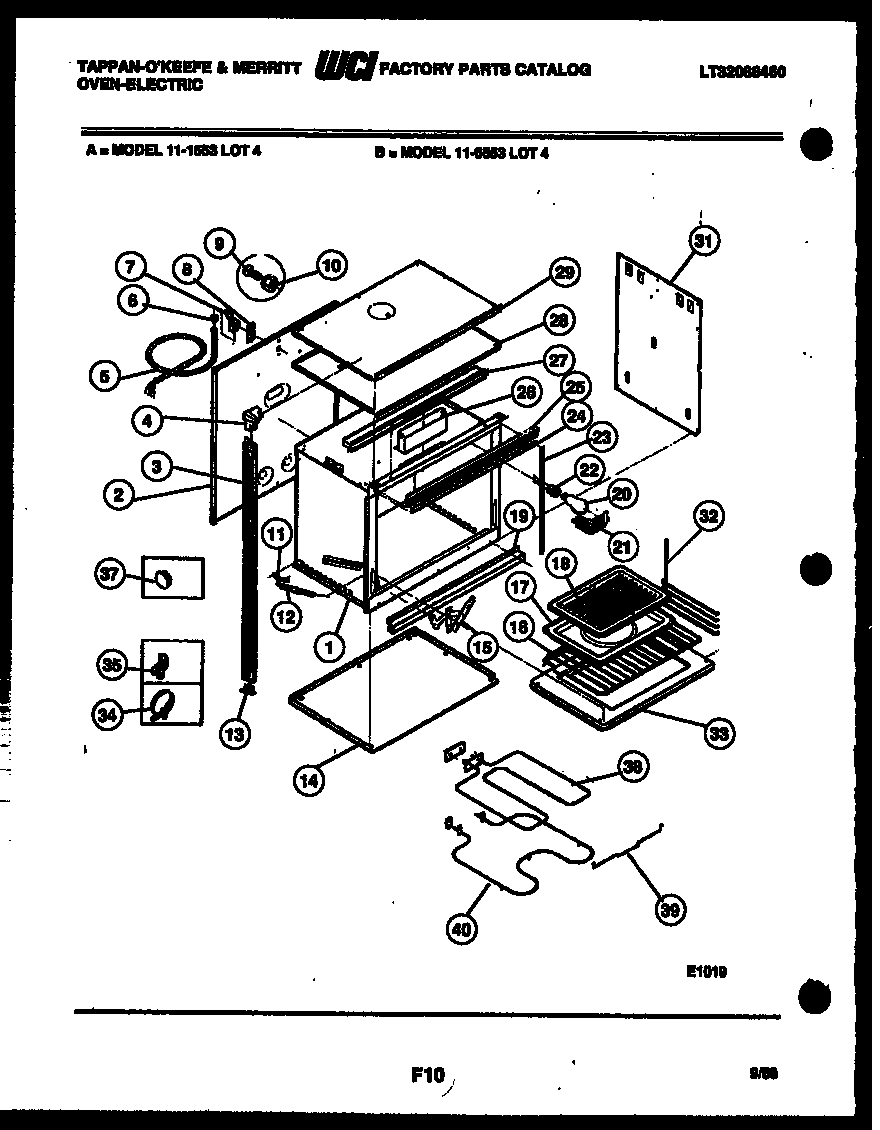

11-1553-23-04 04 – OVEN BODY PARTS

Products

Position	Product
*17572	INSULATION WRAP
*17572	INSULATION VENT
*17572	KIT BAKE & BROIL EL. WIRE REPAIR
*17572	INSULATION TOP/BOT
*17572	INSULATION TOP
*17572	INSULATION (2 1/2 X 19 X 51``) WOOL (TOP & BACK)
2	WCI 805T013F16-18
3	WCI 740T328P17
3A	WCI 740T328P18
4	END CAP TOP (2)
4A	SCREW (6-32 X 1/4`` PH. OV. HD.) CAP MTG. (4) (NON-ILLUSTRATED)
6	BUSHING-INSULATOR
7	WCI 771T050P01
8	WCI 554T356F01
9	SCREW-GROUND PL. MTG.
10	5303013272 Frigidaire Oven Nut
11	WCI 072T476F01
12A	SLEEVE DR SPRING (2)
12	SPRING (2)
13A	END CAP BTM RH
13	END CAP BTM LH
14	WCI 3018719
15B	WCI 335T588S01
15A	WCI 117T014S10
15	WCI 117T014S09
15C	SCREW-EXTRUSION MTG (8A X 1/2`` PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
16	WCI 591T038P09
17	PAN, BROILER
18	INSERT-BROILR PAN LOT 2,3
19	TRIM LOWER
20	316538904 Frigidaire Oven Lamp Light
21	SHIELD BULB
22	SOCKET
23	SEAL DOOR SIDE (2)
24	WCI 647T081P04
25	TRIM TOP
26	BOX-FLUE VERTICAL
27A	SCREW-SHOULDER 8A X 3/8`` (4)
27	BOX-FLUE HORIZONTAL
28	WCI 812T007F03-18
29	WCI 3018718
29B	WCI 636T090P48
29A	WCI 740T327P04
31	WCI 809T010F07-18
32	GLIDE-OVEN RACK
33	WCI 058T015F07-86
34	5304464772 Frigidaire Refrigerator Wire Tie
35	5303284616 Frigidaire Range Bulb Clip Thermostat
37	BUTTON PLUG
38	220T017P02 Frigidaire Broil Element
39	SUPT BROIL. ELEMNT
40	ELEMENT BAKE
