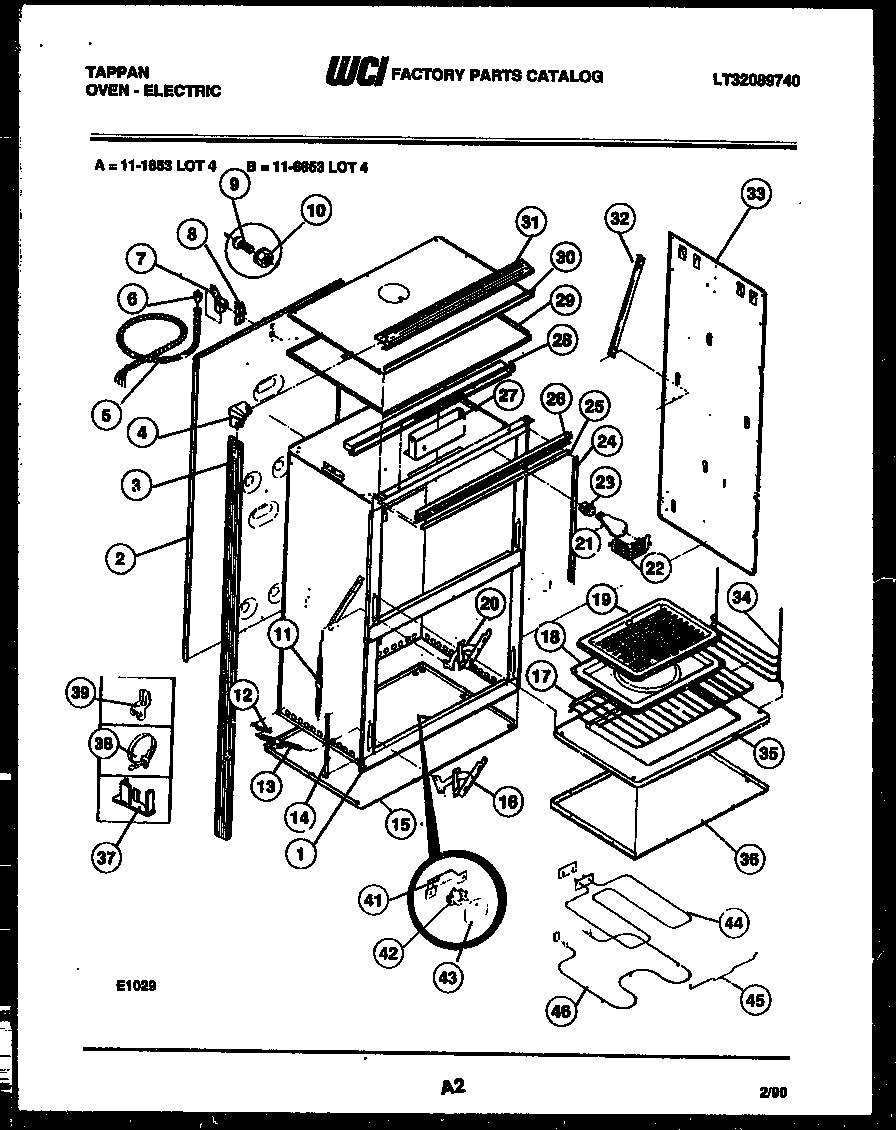

11-1653-00-04 02 – BODY PARTS

Products

Position	Product
*17726	WCI 328T015P119
*17726	INSULATION (2 1/2 X 19 X 51“) WOOL (TOP & BACK)
*17727	KIT BAKE & BROIL EL. WIRE REPAIR
*17727	WCI 328T094P04
*17726	INSULATION TOP/BOT
*17727	INSULATION VENT
2	WCI 805T013F17-18
3	WCI 740T328P13
3A	WCI 740T328P14
4A	SCREW (6-32 X 1/4“ PH. OV. HD.) CAP MTG. (4) (NON-ILLUSTRATED)
4	END CAP TOP (2)
6	BUSHING-INSULATOR
7	CONNECTR CONDUIT
8	WCI 554T356F01
9	SCREW-GROUND PL. MTG.
10	5303013272 Frigidaire Oven Nut
11	SPRING (2)
12	WCI 072T476F01
13A	SLEEVE DR SPRING (2)
13	WCI 675T041P05
14	WCI 072T476F02
15	WCI 3018719
16A	WCI 117T014S10
16	WCI 117T014S09
16B	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
17	WCI 591T038P09
18	PAN, BROILER
19	INSERT-BROILR PAN LOT 2,3
20	CAM, OVN DR, LH
20A	CAM, OVN DR, RH
20B	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
21	316538904 Frigidaire Oven Lamp Light
22	SHIELD BULB
23	SOCKET
24	SEAL DOOR SIDE (2)
25	WCI 647T081P04
26	TRIM TOP
27	BOX-FLUE VERTICAL
28	BOX-FLUE HORIZONTAL
29	WCI 812T007F03-18
30	WCI 3018718
31	WCI 740T327P04
31A	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
32	WCI 3018758
33	WCI 809T010F08-18
34	GLIDE-OVEN RACK
35	WCI 058T015F07-86
36	WCI 655T237F01
37A	END CAP BTM RH
37	END CAP BTM LH
38	5304464772 Frigidaire Refrigerator Wire Tie
39	5303284616 Frigidaire Range Bulb Clip Thermostat
41	WCI 072T835F01
42	FUSE-THERMAL CUTOUT
43	CVR. THERM. FUSE
44	220T017P02 Frigidaire Broil Element
45	SUPT BROIL. ELEMNT
46	ELEMENT BAKE
