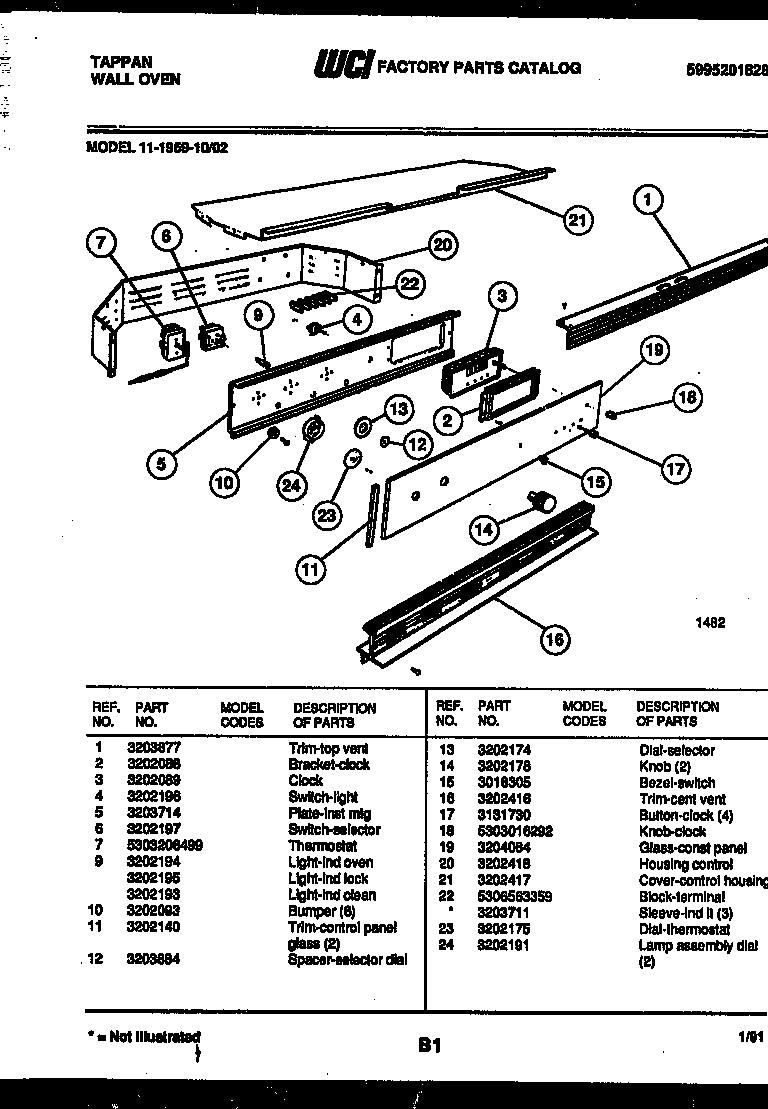

11-1969-00-02 02 – CONTROL PANEL

11-1969-00-02 02 – CONTROL PANEL

Written by

in

11-1969-00-02 02 – CONTROL PANEL

Products

PositionProduct
1WCI 3203877
2WCI 3202088
3WCI 3202089
4WCI 3202196
5PLATE-INST. MTG
6WCI 3202197
7WCI 5303206499
9AWCI 3202195
9BWCI 3202193
9LIGHT-IND- OVEN (2)
10WCI 3202093
11TRIM-CONTROL PNL GLASS
12WCI 3203884
13DIAL-SEL. SW.
14KNOB (3)
15WCI 3016305
16TRIM-CENT. VENT
17WCI 3131730
18WCI 5303016292
19WCI 3204084
20HOUSING-CONT
21COVER-CONT HOUSING
225304409888 Frigidaire Oven Terminal Block with Hardware
22ASLEEVE-IND IT (4)
23DIAL – THERM UPPER
24LAMP ASSY.-DIAL (3)
