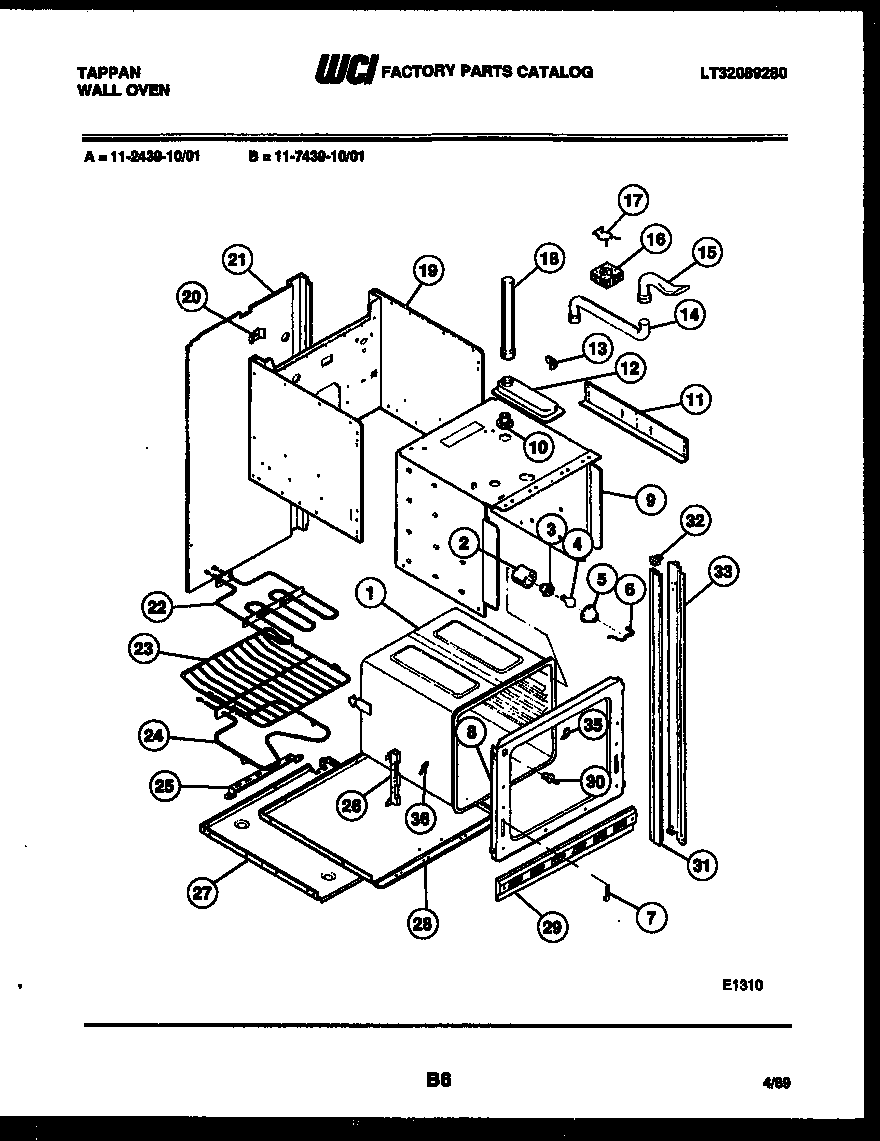

11-2439-00-01 05 – BODY PARTS

11-2439-00-01 05 – BODY PARTS

Written by

in

11-2439-00-01 05 – BODY PARTS

Products

PositionProduct
*23006CLIP CAPILLARY (2)
*23006WCI 3016319
*23006BRACKET-OVEN VENT
1WCI 3016318
2WCI 3016243
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
55304524341 Frigidaire Lens
6WCI 3016244
7WCI 3019063
8WCI 3202083
9WCI 3016272
10TUBE-OVEN VENT
11SUPPORT-HEIGHT ADJUSTMENT (2)
12WCI 3016324
13WCI 3016326
14DUCT-VENT PIPE
15WCI 3016331
18Duct,oven vent ,center
19WCI 3202448
20WCI 3016281
21WCI 3203859
225303016247 Frigidaire Broil Element
23318345216 Frigidaire Oven Rack
24318255101 Frigidaire Oven Bake Element
25WCI 3016248
26WCI 3201631
27WCI 3202447
28SHIELD-INSULATION
29WCI 3202237
30WCI 3051531
31AWCI 3016321
31WCI 3016322
32TRIM-CAP LH
32ATRIM-CAP RH
33WCI 3202185
35WCI 3202082
36WCI 3201632
