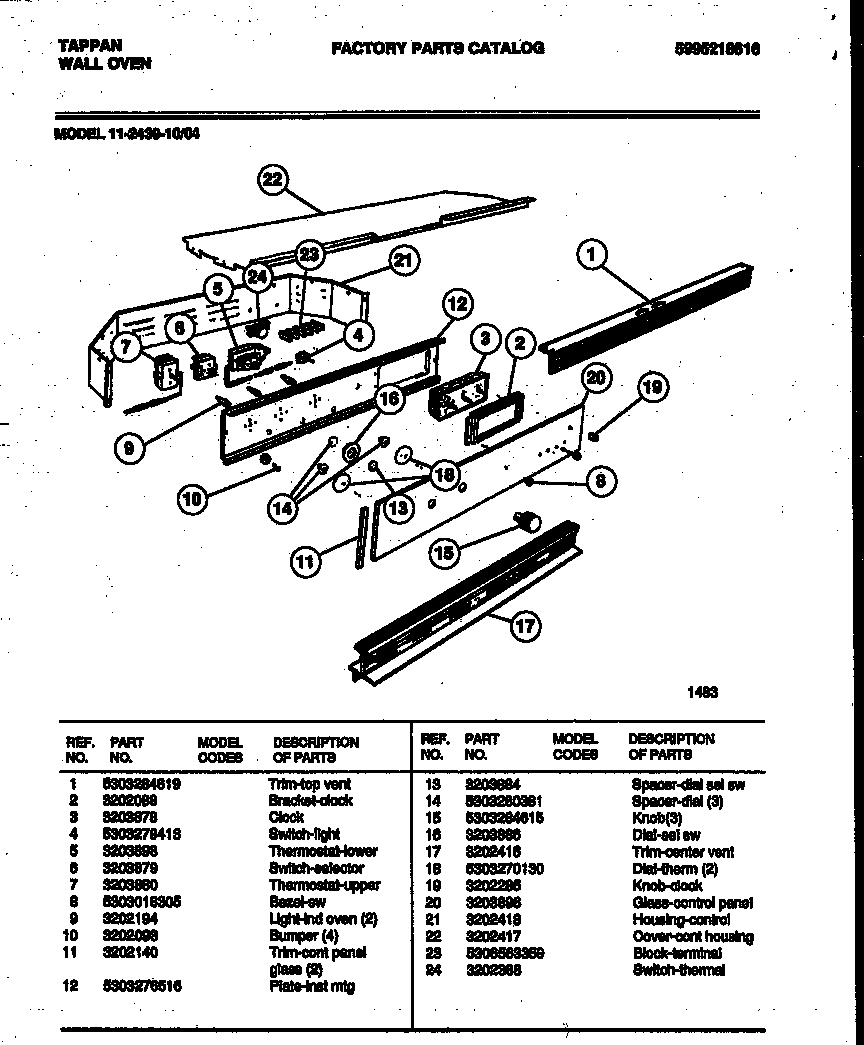

11-2439-00-04 02 – CONTROL PANEL

Products

PositionProduct
1WCI 5303284619
2WCI 3202088
3WCI 3203878
4SWITCH/OVEN LIGHT, PUSH BUTTON, BLACK, FLUOR-OVEN
5WCI 3203898
6WCI 3203879
7WCI 3203880
8WCI 5303016305
9LIGHT-IND- OVEN (2)
10WCI 3202093
11TRIM-CONTROL PNL GLASS
12PLATE-INSTRUMENT MTG
13WCI 3203884
14WCI 5303280381
15KNOB (3)
16DIAL-SELECTOR SWITCH
17TRIM-CENT. VENT
18WCI 5303270130
19KNOB-CLOCK
20WCI 3203896
21HOUSING-CONT
22COVER-CONT HOUSING
235304409888 Frigidaire Oven Terminal Block with Hardware
24SWITCH-THERMAL
